Technical data
Project engineering manual V1.06
78
© KEBA 2021
KeBus
System bus (Module bus) KeBus (EtherCAT) pluged-in laterally
Expansion bus
PCIe lanes: 1
SATA: 1
USB 2.0: 2
Slave sync lines: 2
Master sync lines: 4
12.6 Dimensions, weight

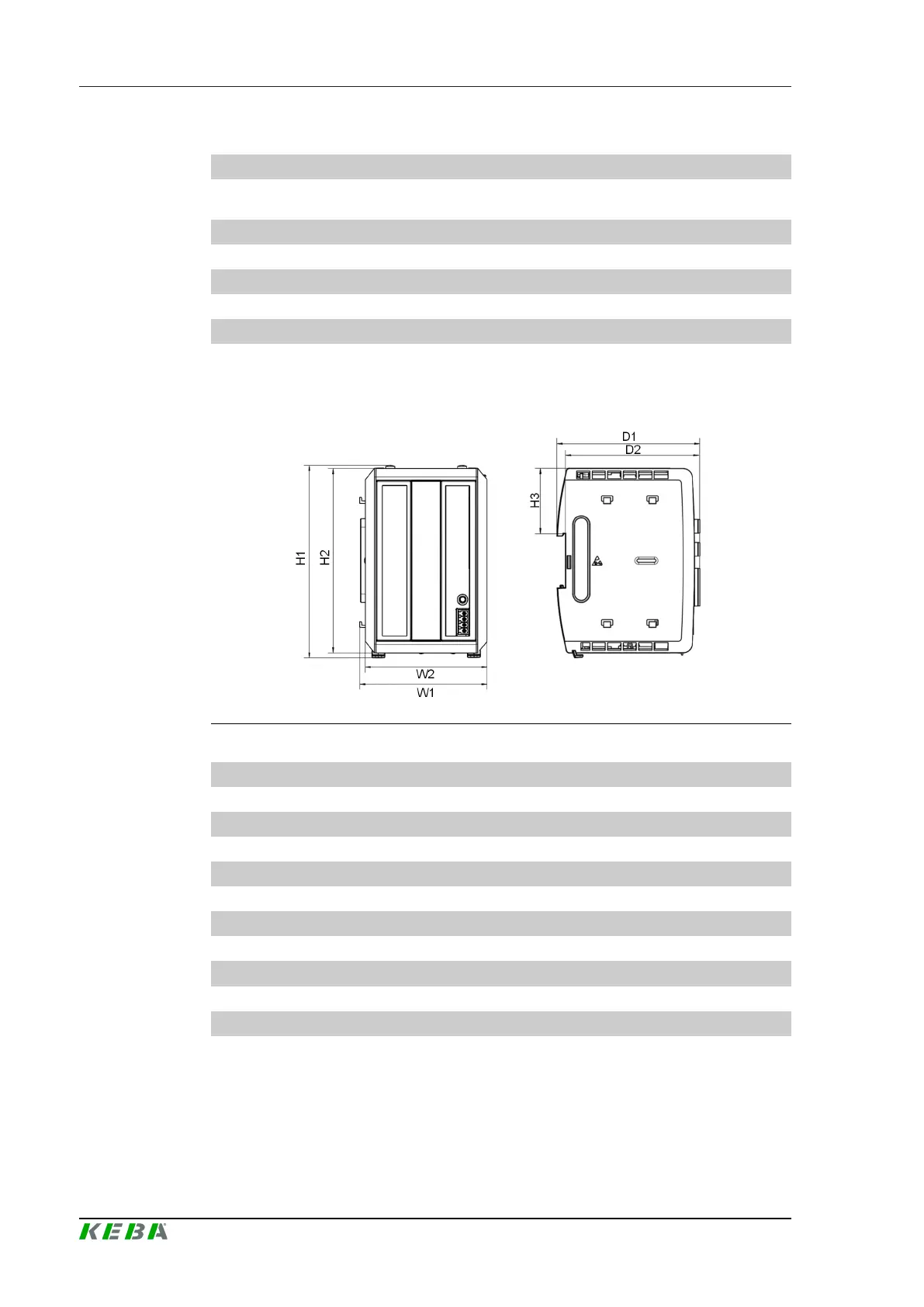

Fig.12-47: Dimensions
Height:
● H1 (Height with lock ): 126.5 mm
● H2 (Height without lock): 121 mm
● H3 (Height to mounting rail-uptake ): 43 mm
Breite:
● W1 (Width with plug socket): 83.6 mm
● W2 (Width without plug socket): 80.1 mm
Tiefe:
● D1 (Total depth): 94.9 mm
● D2 (Connecting height): 88.4 mm
Weight: Ca. 510 g
