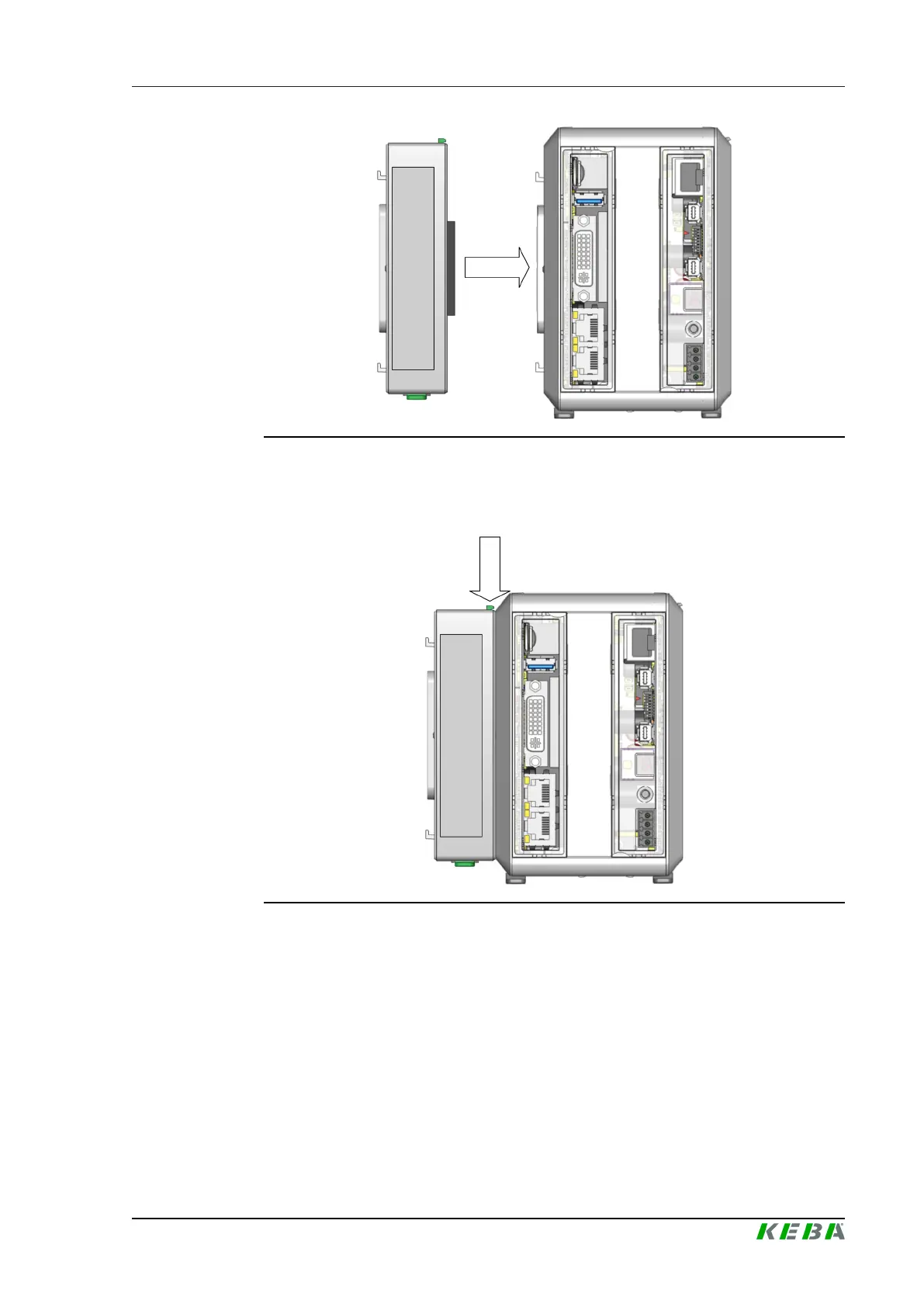

Fig.5-20: Adding an expansion module
7) Secure the lock on the right side of the new added expansion module by
pushing it down.
Fig.5-21: Securing the lock
8) Secure the end bracket on the mounting rail.
The expansion module is added.
5.7.4 Removing input/output modules
To remove input/output modules, proceed as follows:
1) Disconnect the power supply.
2) Remove the end bracket.
