CP 503/A, CP 505/A,D,K, CP 507/
A,C
Mounting and installation instructions
Project engineering manual V1.06
28
© KEBA 2021

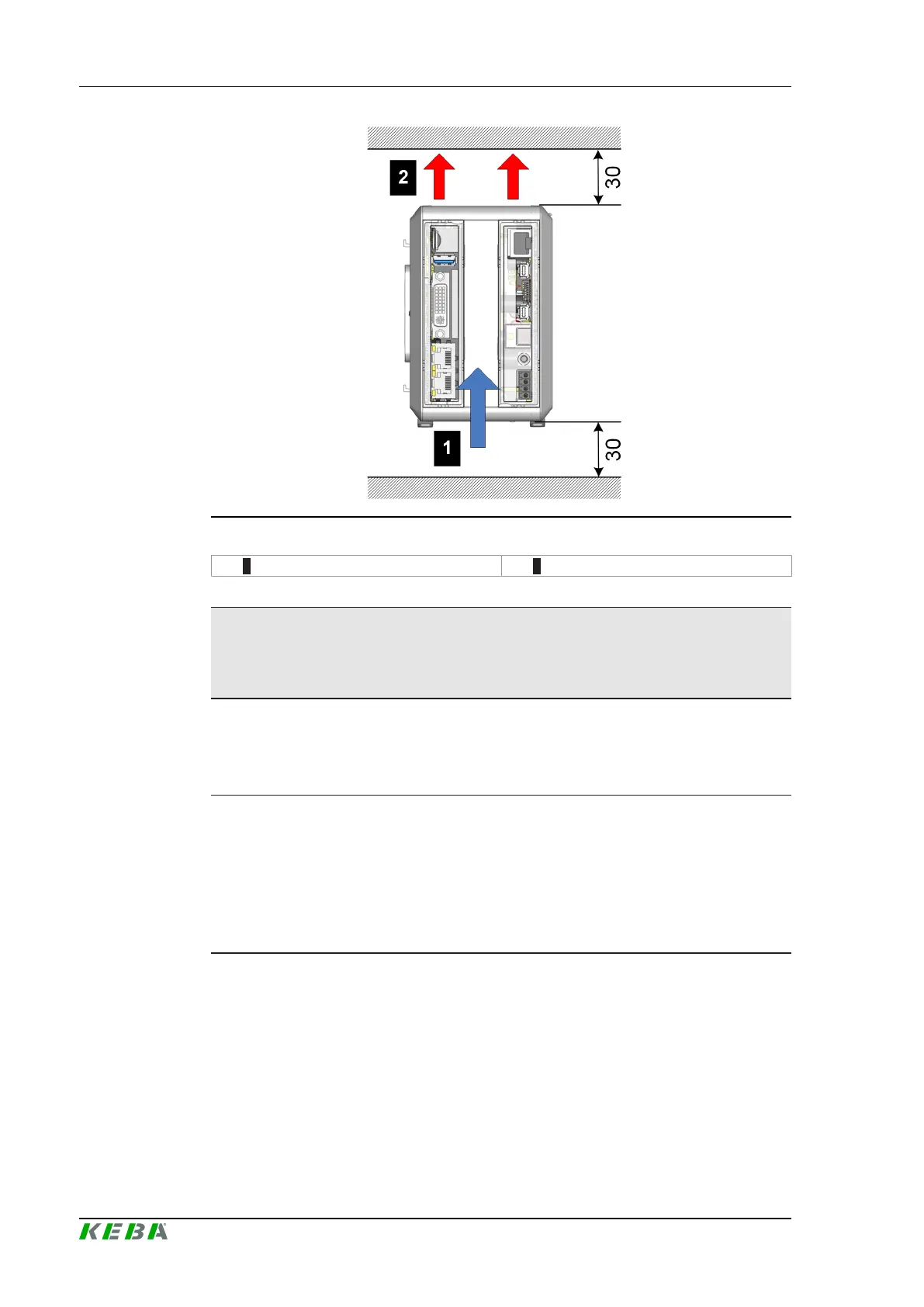

Fig.5-12: Space requirement (dimensions in mm)
1 ... Air intake (convection) 2 ... Air outflow
Information
● Free space for the air circulation of the module: At least 30 mm above
and below the module.
5.5 Installing the module
Caution
Permissible installation position:
The mounting rail must be installed so that the front of the mounted module
is facing forward and the ventilation slots are facing up and down (see fol-
lowing graphics). Otherwise damage could occur (e.g. from heat build-up)
(see the "Air conditioning and ventilation" chapter).
