5.7.5 Removing expansion modules
To remove expansion modules, proceed as follows:
1) Disconnect the power supply.
2) Remove the end bracket.
3) Release the lock on the right side of the expansion module to be re-
moved by pushing it up.

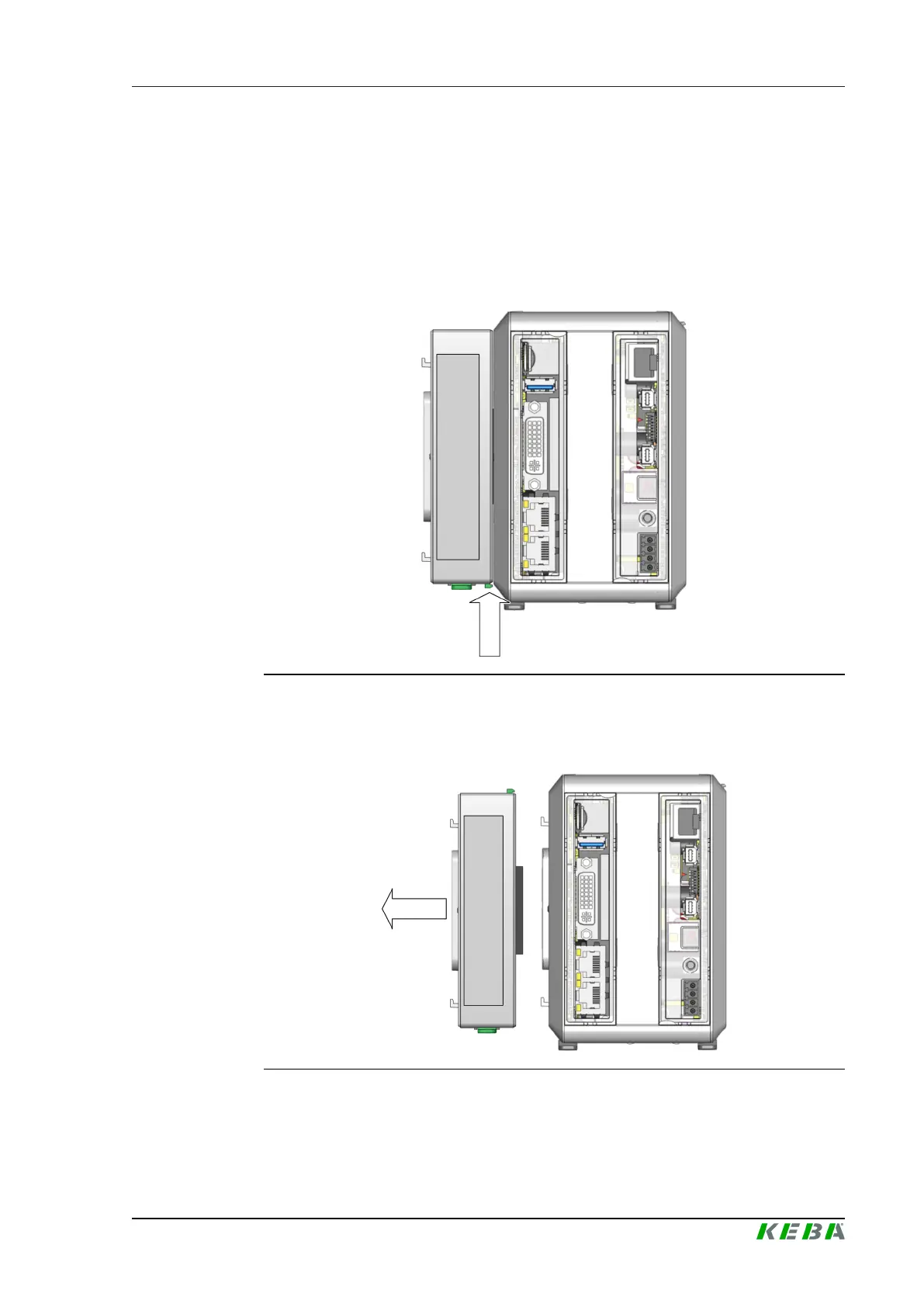

Fig.5-24: Releasing the lock
4) Slide the expansion module to the left until the recesses have disen-
gaged from the hooks of the module to the right.
Fig.5-25: Removing an expansion module
5) To dismantle the expansion module from the mounting rail, release the
lock of the mounting rail, see 5.6 Removing the module.
