Keba KeControl CP 50 Series User Manual

CP 503/A, CP 505/A,D,K, CP 507/
A,C
Connections and wiring
Project engineering manual V1.06
45
© KEBA 2021
6.8.1.3 Cable and plug specification
For details, refer to the system manual.
6.8.2 RS-422-A interfaces
Via RS-422-A bus participants can comminicate by point-to-point connec-
tion. The wire has to be shielded.
6.8.2.1 Pin assignment

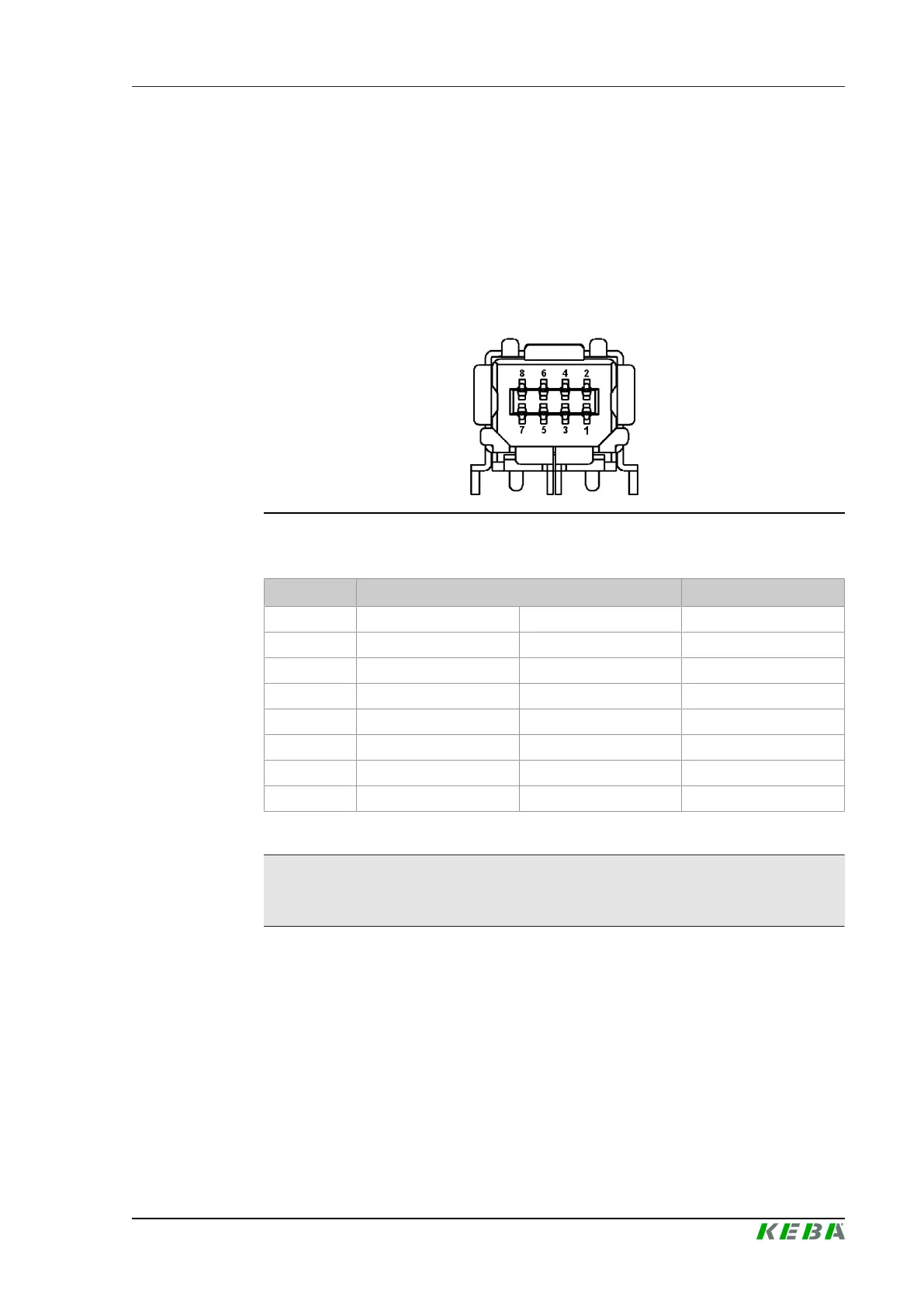

Fig.6-32: Industrial Mini I/O socket type 2
RS-422-A
Pin-No. Signal designation Input/output
1 A Transmit Data + Output
2 B Transmit Data - Output
3 A' Receive Data + Input
4 n.c. Not connected ---
5 n.c. Not connected ---
6 B' Receive Data - Input
7 n.c. Not connected ---
8 GND Ground (Signal ground) ---
6.8.2.2 Bus termination
Information
At the RS-422-A bus termination is always necessary.
The bus termination is done at the receiver.
The following options result for the CP 50x/x:
● Bus termination with resistor termination (R)
● Bus termination with AC termination (AC)
For most applications the AC termination will be suffucient. It is recomendet
due to the low power loss.
In the following cases the resistor termination is recomended:
