7.2.1 RS485/422 termination
The termination of the serial interface (SI) is activated (AC, R, R without fail-
safe) or deactivated (OFF) with the DIP switch (s1).
ON/OFF position of the switches

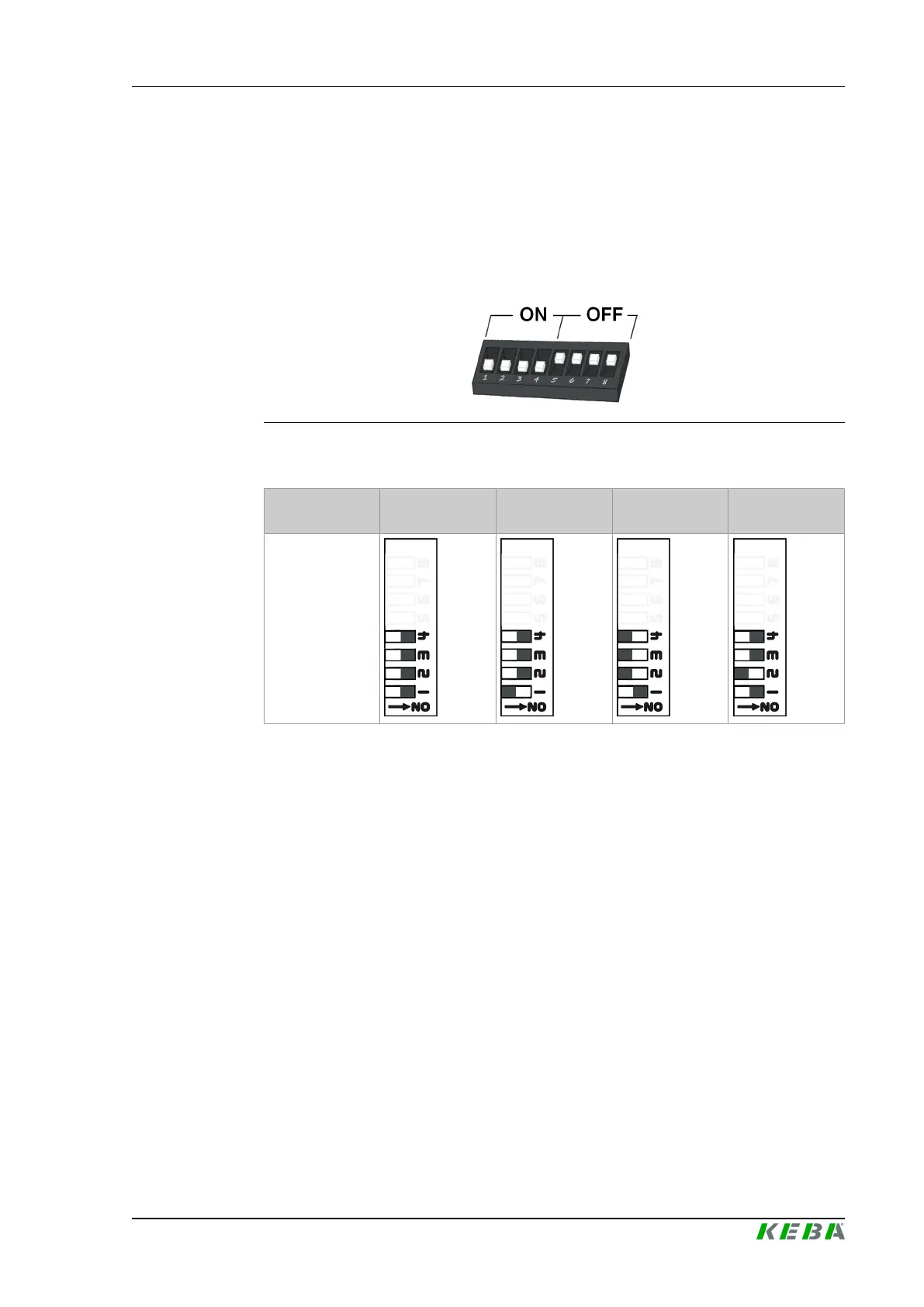

The illustration shows the position of the switches for the setting ON and
OFF.
Fig.7-43: Position of switches
DIP switch setting options
OFF AC R
R without fail-
safe
SI
