CP 503/A, CP 505/A,D,K, CP 507/
A,C
Mounting and installation instructions
Project engineering manual V1.06
33
© KEBA 2021

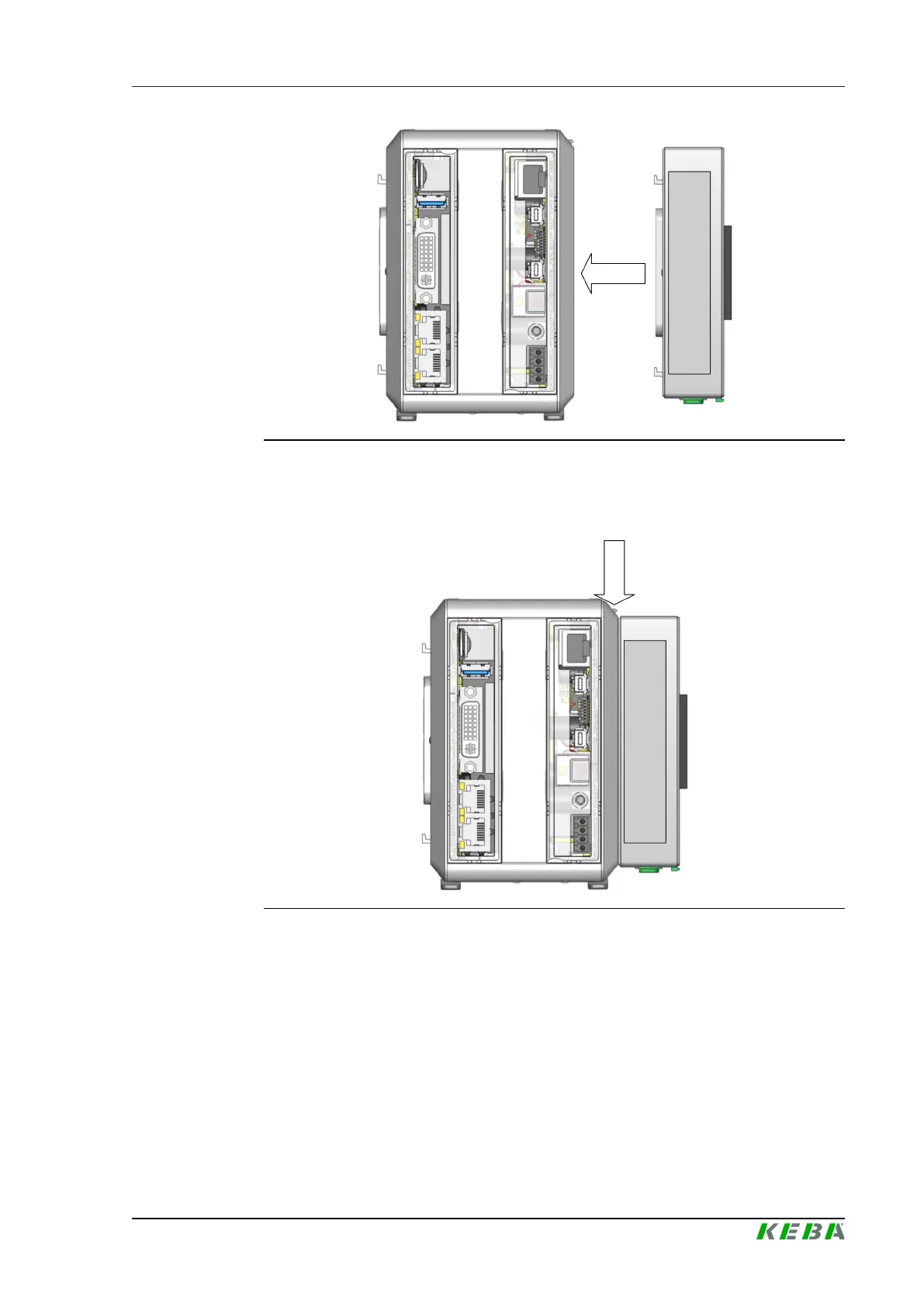

Fig.5-17: Adding input/output modules
6) Secure the lock on the right side of the already mounted module by
pushing it down.
Fig.5-18: Securing the lock
7) Secure the end bracket on the mounting rail.
The input/output module is added.
5.7.3 Adding expansion modules
To add expansion modules, proceed as follows:
1) Disconnect the power supply.
2) Remove the end bracket.
