Description of the module
Project engineering manual V1.06
18
© KEBA 2021
3.3 Bottom view

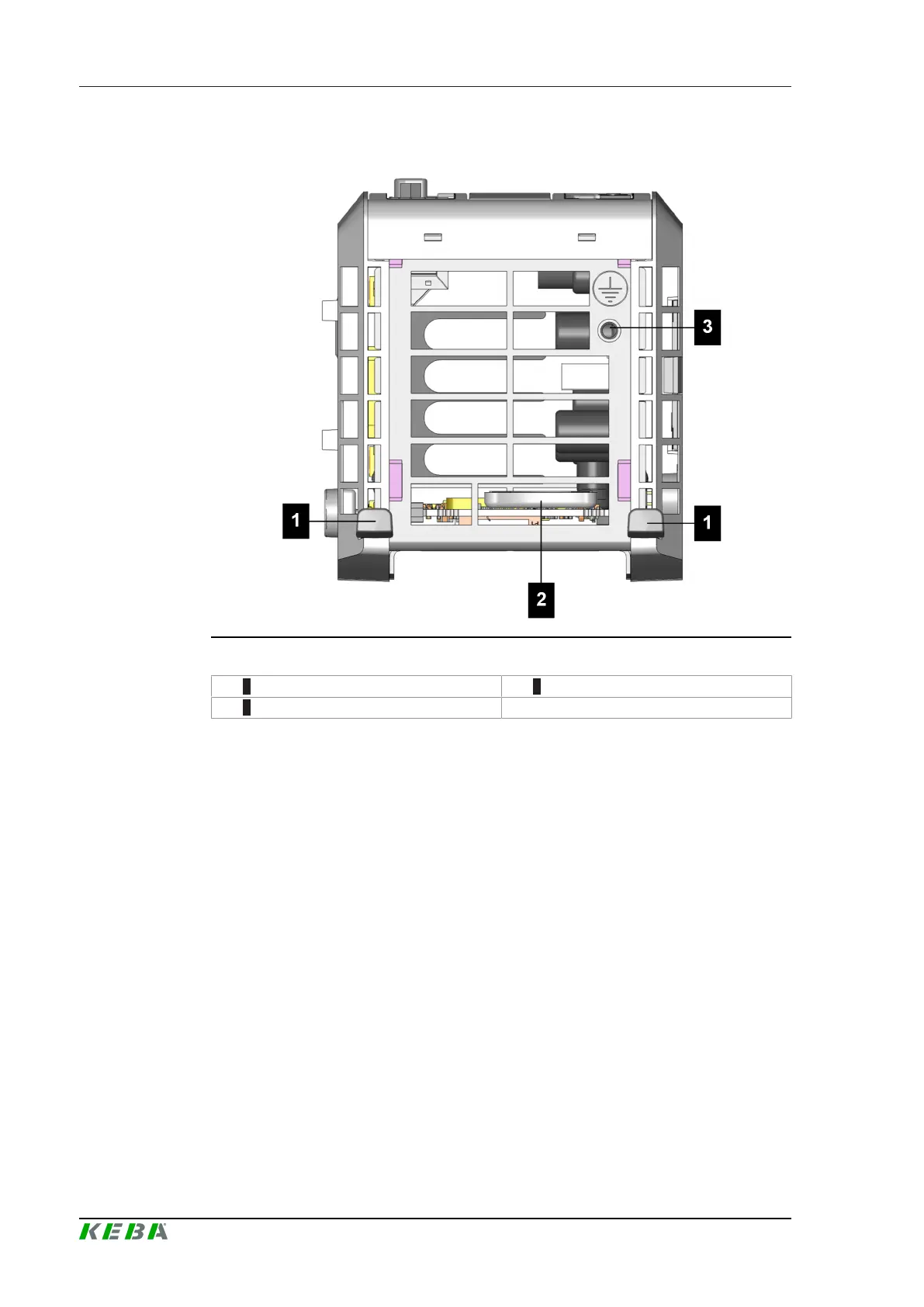

Fig.3-4: Bottom view
1 ... Locking for mounting rail 2 ... Battery slot
3 ... Grounding point
3.4 Storage media
The CP 50x/x can be operated with the following storage media:
● Micro SD card
3.4.1 Micro SD card
The CP 50x/x uses a Micro SD card that contains the operating system. It is
possible to insert and remove the Micro SD card at the front of the module
(without tools). The push-push principle is used for this purpose. It is not per-
missible to change the Micro SD card during operation. If the Micro SD card
is removed during running operation, the module will be reset.
