Connections and wiring
Project engineering manual V1.06
50
© KEBA 2021
Bus termination with resistor termination

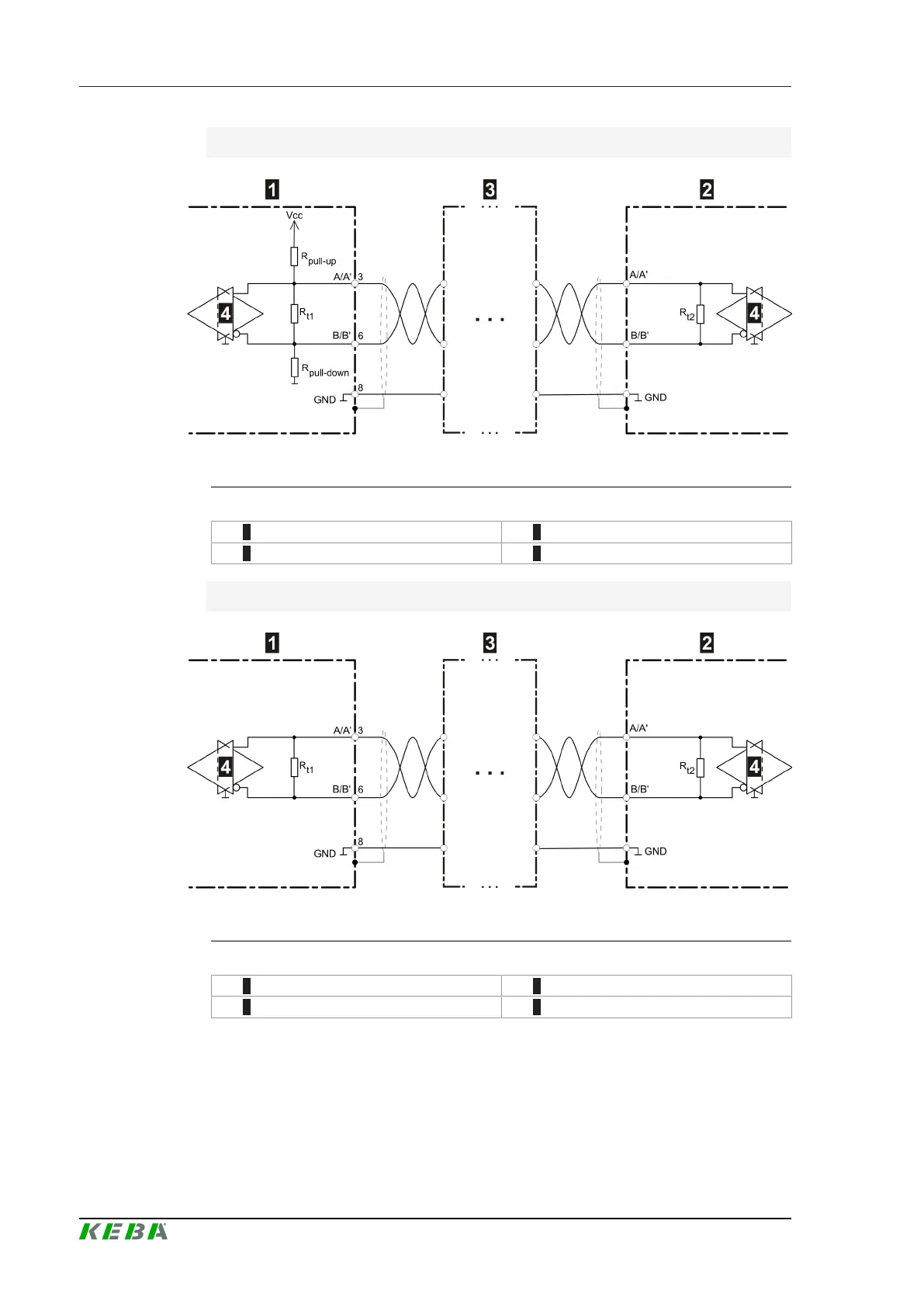

Fig.6-37: Example: Resistor termination
1 ... CP 50x/x 2 ... External participant
3 ... Other participants 4 ... Transmitter/receiver
Bus termination with resistor termination without fail-safe wiring
Fig.6-38: Example: resistor termination without fail-safe
1 ... CP 50x/x 2 ... External participant
3 ... Other participants 4 ... Transmitter/receiver
