42
,,

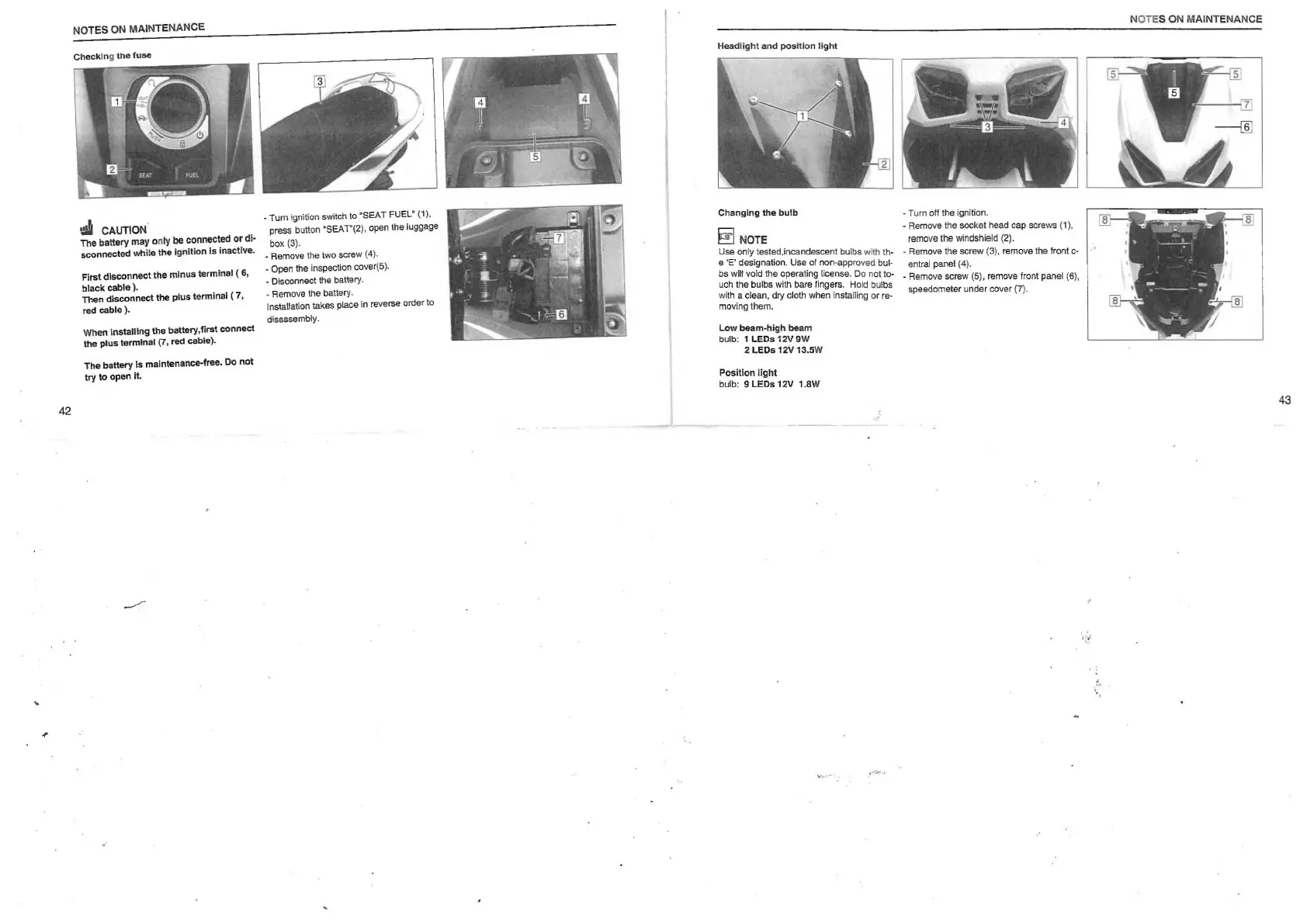

NOTES
ON
MAINTENANCE
,al
CAUTION
The
battery may only be connected
or
di-
sconnected while the ignition Is inactive.
First disconnect the
minus
terminal ( 6,
black cable ).
Then disconnect the
plus
terminal
(
7,
red
cable).
When Installing the battery,flrst connect
the plus terminal fl, red cable).
The
battery Is maintenance-free. Do not
try to open it.
_,/"
- Turn ignition switch to "SEAT FUEL' (1
),
press button "SEAT'(2), open the luggage
box(3
).
- Remove the two screw (4
).
• Open the inspection cover(5
).
- Disconnect the battery.
• Remove the battery.
Installation takes place in reverse order to
disassembl
y.
Headlight
and
pos
iti
on
light
Changing
the
bulb
~
NOTE
Use only tested.incandescent bulbs wi
th
th-
e 'E' designation. Use of non-approved bul-
bs will void the operating license. Do not to-
uch the bulbs with bare fingers. Hold bulbs
with a clean, dry cloth when installing
or
re-
moving them.
Low beam-high beam
bulb: 1 LEDs 12V
9W
2 LEDs 12V 13.5W
Position light
bulb: 9 LEDs 12V
1.8W
..... 1 ....
.}
,•~
..
• Tu
rn
off
the
ignition.
- Remove the socket head cap screws (1),
remove the
wi
ndshield (
2)
.
- Remove the screw (3), remove the front
c-
entral panel (4
).
- Remove screw (5), remove front panel (6
),
speedometer under cover (7).
\
/.11
NOTES ON MAINTENANCE
:1]
43
!,
