NOTES ON MAINTENANCE

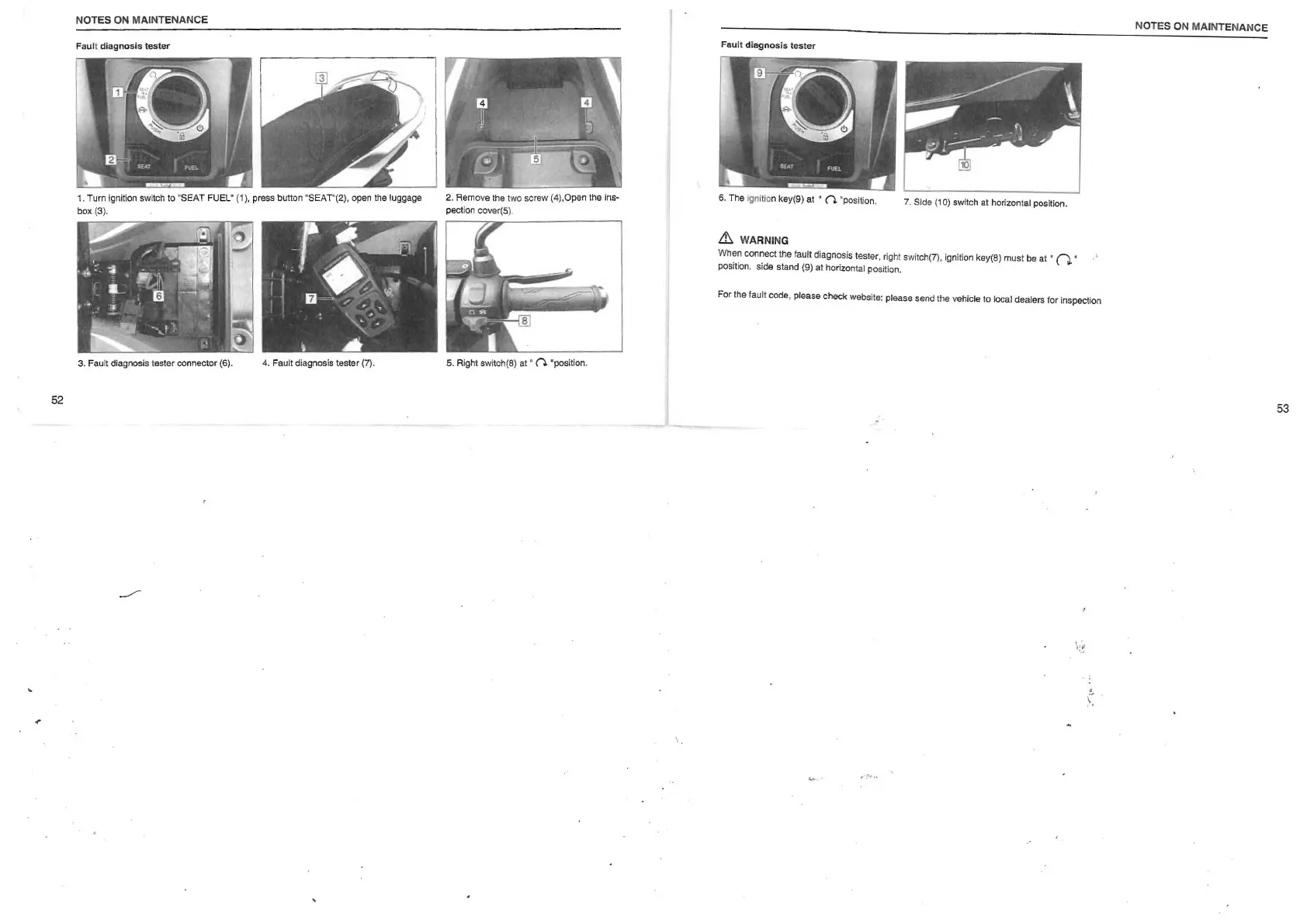

Fault diagnosis tester
1. Turn ignition switch to "SEAT FUEL" (1), press button "SEAT"(2), open the luggage
box (3).
3.
Fault diagnosis tester connector (6).
4. Fault diagnosis tester (7).
_/"
2.
Remove the two screw (4),Open the ins-
pection cover(5
).
5.
Right swttcf1(8)
at"
0 "position.
Fault diagnosis tester
6.
The ignition key(9) at • 0 "position.
7. Side (1
0)
switch at horizontal position.
6 WARNING
When connect the fault diagnosis tester, right switch(?), ignition key(8) must be at "0 "
position. side stand (9) at horizontal position.
For the fault code, please check website: please send the vehicle to local dealers for inspection
' '
1; ~\
(
,
·'::-.-"
NOTES ON MAINTENANCE
53
