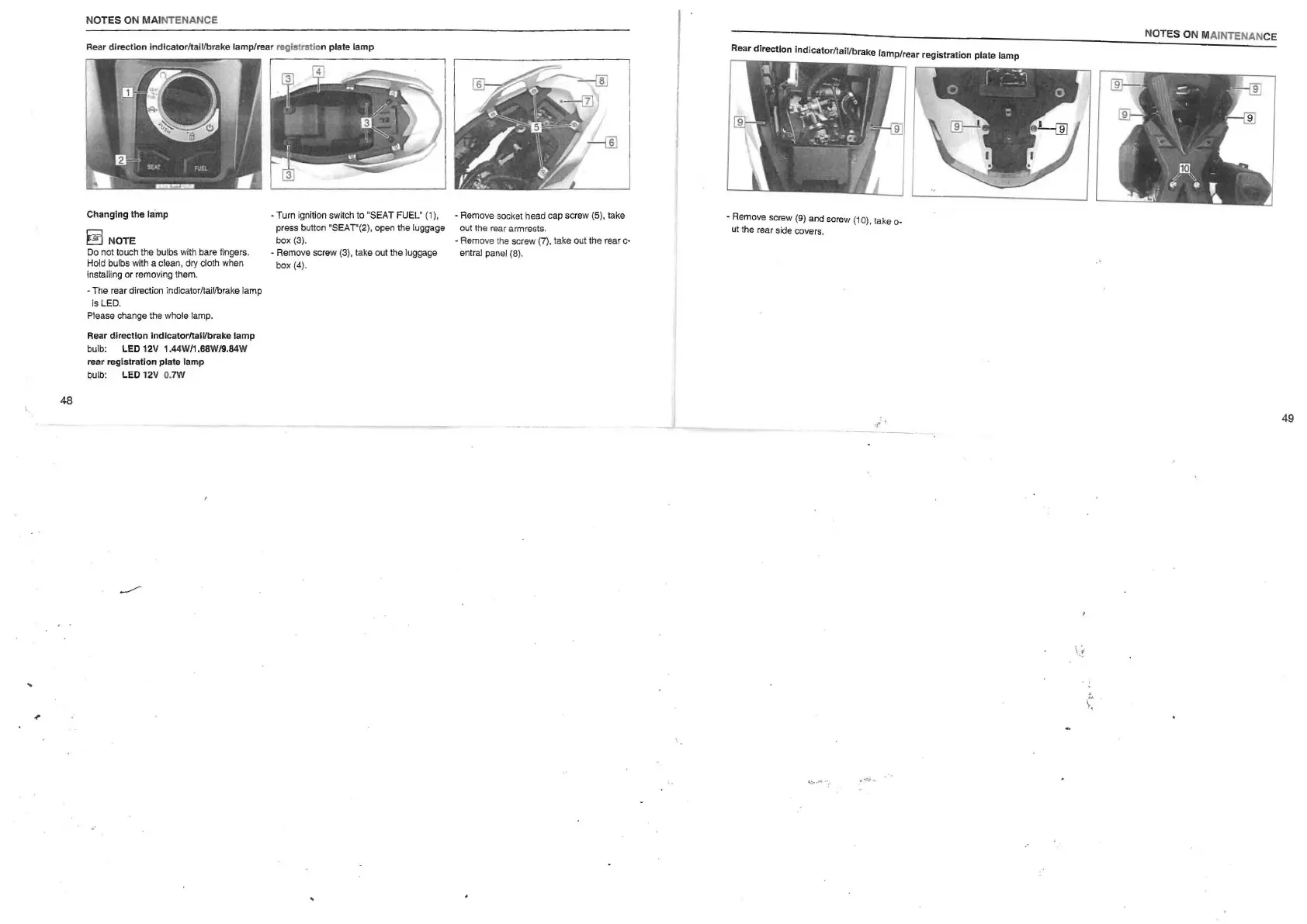

KEEWAY Vieste 250 - Rear Lights Change

48
,,.
NOTES ON MAI NTENANCE
Rear direction indicat or /tail/brake lamp/rear registrati on plate lamp
Changing the lamp
~ NOTE
Do not touch the bulbs with bare fingers.
Hold bulbs with a clean, dry cloth when
installing or removing them.
- The rear direction indicator/tail/brake lamp
is LED.
Please change the whole lamp.
Rear direction indicator/tall/brake lamp
bulb: LED 12V 1.44W/1.68W/9.84W
rear registration plate lamp
bulb: LED 12V 0. 7W
~
- Turn ignition switch to "SEAT FUEL' (1),
press button 'SEAT'(2), open the luggage
box(3).
- Remove screw (3), take out the luggage
box (4).
- Remove socket head cap screw (5), take
out the rear armrests.
- Remove the screw (7), take out the rear c-
entral panel (8).
Rear dinectlon indicator/tail/brake lamp/rear registration plate lamp
- Remove screw (9) and screw (10), take o-
ut the rear side covers.
.r ,
1.._ .... -. ,·;-
NOTES ON MAINTENANCE
49
\.~
,
<
