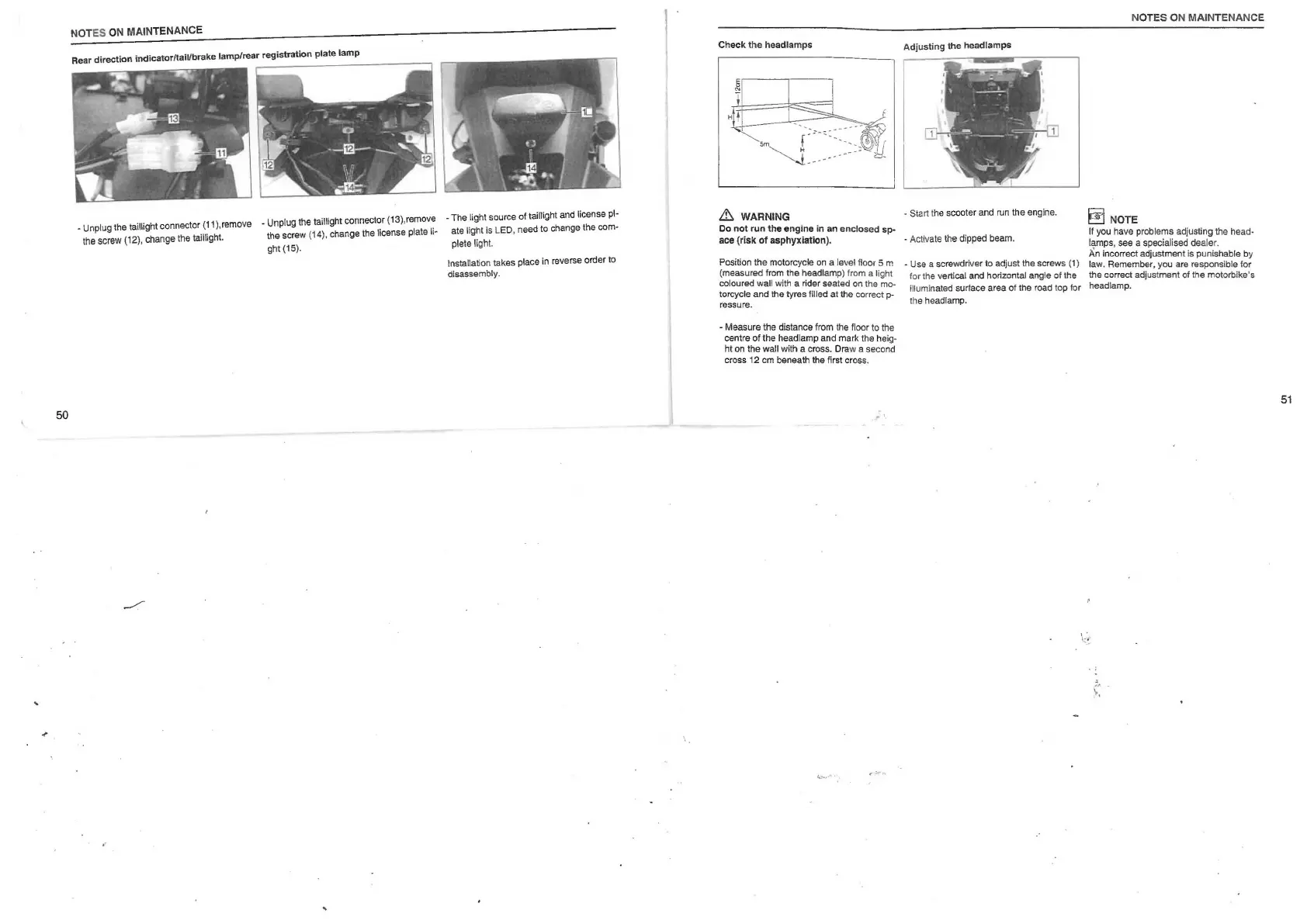

50
~
NOTES
ON
MAINTENANCE
• Unplug the taillight connector (11),remove
the screw (12), change the taillight.
_/
• Unplug the taillight connector (13),remove
the screw (14), change the license plate Ii•
ght (15).
• The light source of taillight and license
pl·
ate light is LED, need to change the com·
plete light.
Installation takes place in
re
verse order to
disassembly.
Check the
headlamps
Adjusting
the
headlamps
& WARNING
- Start the scooter and run the engine.
Do not
run
th
e eng
in
e in an
enclosed
sp-
ace
(risk
of
asphyxiation). - Activate the dipped beam.
Position
the
motorcycle on a level floor 5 m
(measured from the headlamp) from a light
coloured wall with a rider seated on the mo-
torcycle and the tyres filled at the correct p-
ressure.
• Measure the distance from the floor to the
centre of the headlamp and mark the heig-
ht on the wall with a cross. Draw a second
cross 12 cm beneath the first cross.
• Use a screwdriver to adjust the screws (1)
for the vertical and horizontal angle of the
illuminated surface area
of
the road top for
the headlamp.
NOTES ON MAINTENANCE
e:j
NOTE
If you have problems adjusting the head-
lamps, see a specialised dealer.
An incorrect adjustment
is
punishable by
law. Remember, you are responsible for
the correct adjustment of the motorbike's
headlamp.
, .
)~
~
'
~:
,
··
.~
..
51
