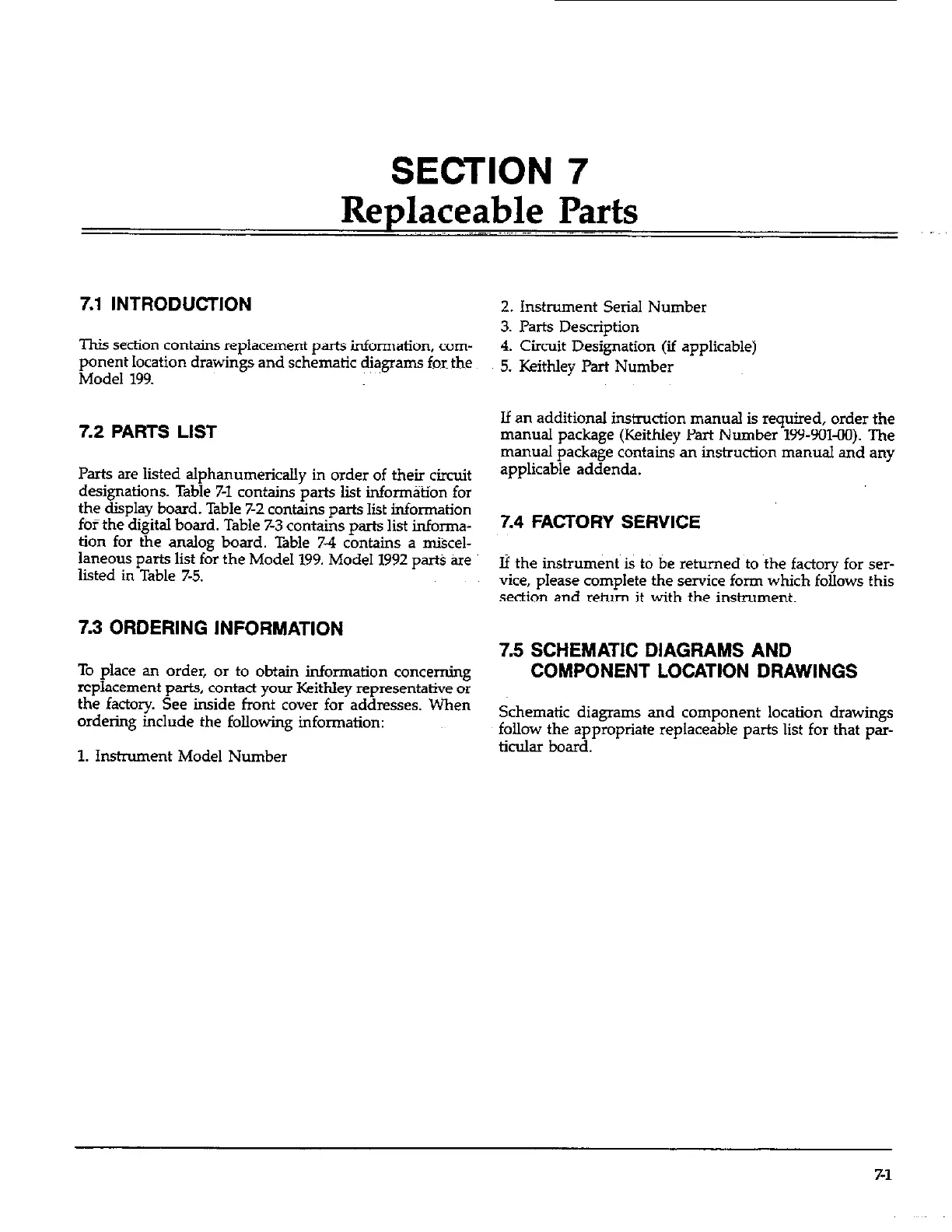

SECTION 7
Replaceable Parts
7.1 INTRODUCTION
This section contains replacement parts information, com-
ponent location drawings and schematic d+ams for the
Model 199.
7.2 PARTS LIST
Parts are listed alphanumerically in order of their circuit
designations. Table 7-1 contains parts lit infonn.%tion for
the display board. Table 7-Z contains parts list information
for the digital board. Table 7-3 contains parts list informa-
tion for the analog board. Table 7-4 contains a miscel-
laneous parts list for the Model 199. Model 1992 parts tie
listed in Table 7-5.
7.3 ORDERING INFORMATION
To place an order, or to obtain information concerning
replacement parts, contact you Keithley representative or
the factory. See inside front cover for addresses. When
ordering include the following information:
1. Instrument Model Number
2. instrument Serial Number
3. Parts Description
4. Circuit Designation (if applicable)
5. Keithley Part Number
If an additional instruction manual is required, order the
manual package (Keithiey Part Number 199-90100). The
manual package contains an instruction manual and any
applicable addenda.
7.4 FACTORY SERVICE
If the instrument is to be returned to the factory for ser-
vice, please complete the service form which follows this
section and return it with the instrument.
7.5 SCHEMATIC DIAGRAMS AND
COMPONENT LOCATION DRAWINGS
Schematic diagrams and component location drawings
follow the appropriate replaceable parts list for that par-
ticular board.
7-1
