Keithley 2000 Quick Reference Guide

24

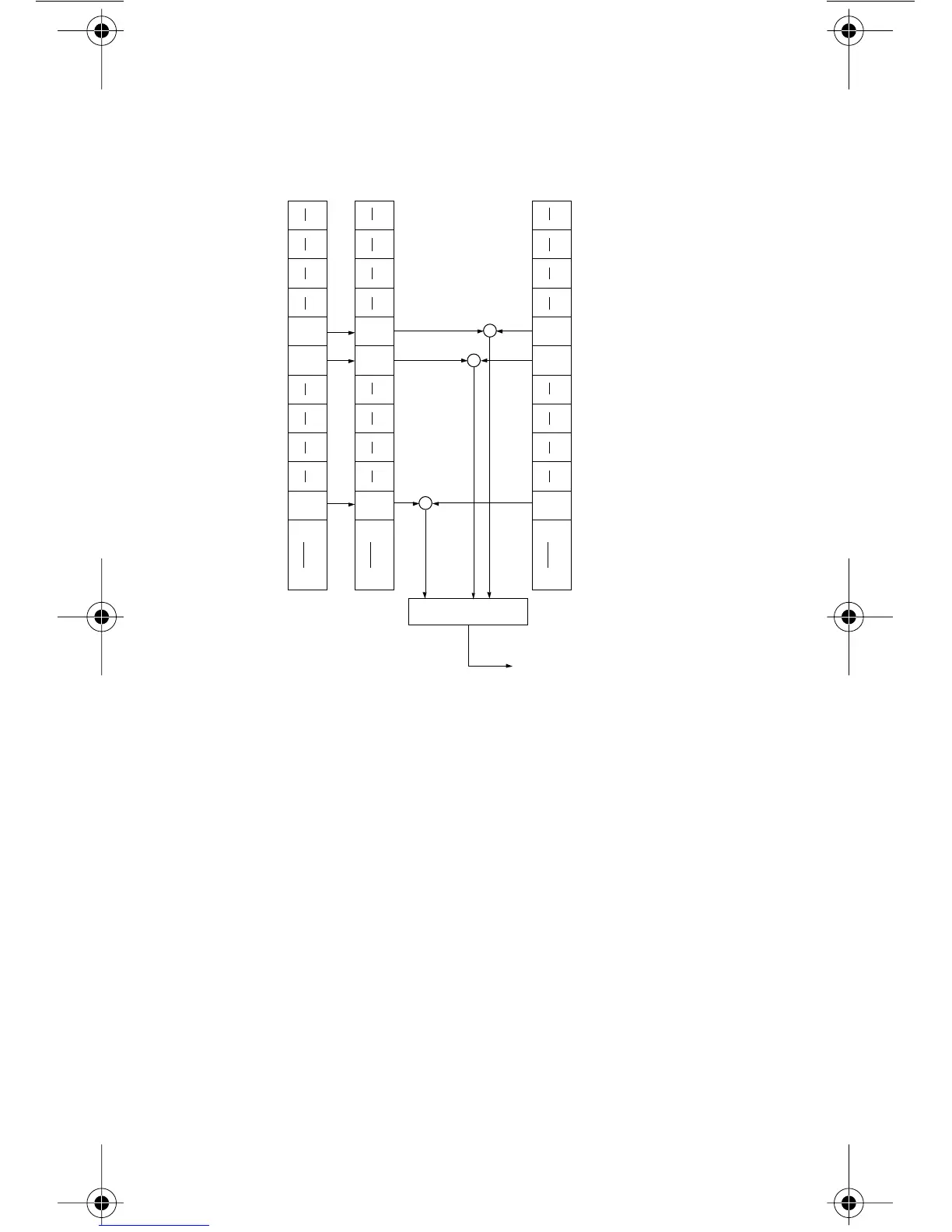

Figure 3. Operation event status
OR
Idle = Idle state of the 2000 Trig = Triggering Meas = Measuring
& = Logical AND OR = Logical OR
(B15 - B11)
Idle
(B10) (B9) (B8) (B7) (B6)
Trig
(B5)
Meas
(B4) (B3) (B2) (B1) (B0)
Operation Event Register
(B15 - B11)
Idle
(B10) (B9) (B8) (B7) (B6)
Trig
(B5)
Meas (B4) (B3) (B2) (B1) (B0)
Operation Event Enable Register
&
To Operation Summary Bit (OSB) of Status Byte Register. (See Figure 6).
&
&
(B15 - B11)
Idle
(B10) (B9) (B8) (B7) (B6)
Trig
(B5)
Meas
(B4) (B3) (B2) (B1) (B0)
Operation Condition Register
2000-903-01A Page 24 Thursday, December 23, 1999 7:52 AM

Keithley 2000 Specifications

General

Digits	6.5
DC Voltage Range	100 mV to 1000 V
AC Voltage Range	100 mV to 750 V
Resistance Range	100 Ω to 100 MΩ
Connectivity	IEEE-488 (GPIB)
Display Type	VFD
