2: General operation Series 2600B System SourceMeter® Instrument
2-2 2600BS-901-01 Rev. B / May 2013
Controls, indicators, and connectors
Series 2600B controls, indicators, and the USB port are on the front panel. Make connections to the
Series 2600B through connectors on the rear panel (on page 2-6
).
Front panel
The front panel of the Series 2600B is shown below. The descriptions of the front-panel controls, USB
port, and indicators follow the figure.

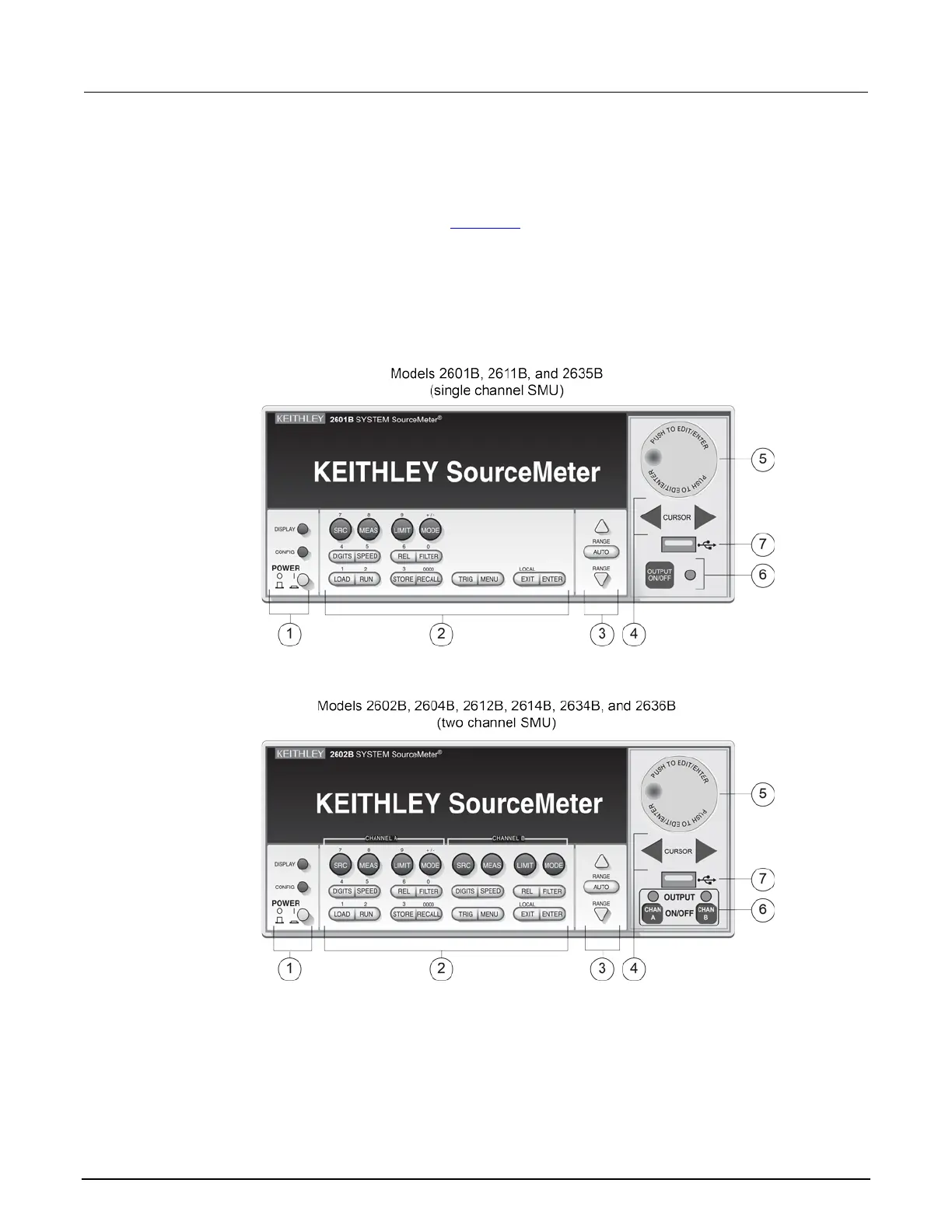

Figure 1: Front panel (Series 2600B models)
