Keithley 2601B

Section
2: General operation Series 2600B System SourceMeter® Instrument
Reference Manual
2-6 2600BS-901-01 Rev. B / May 2013
Rear panel
The rear panel of the Series 2600B is shown below. The descriptions of the rear-panel components
follow the figure.

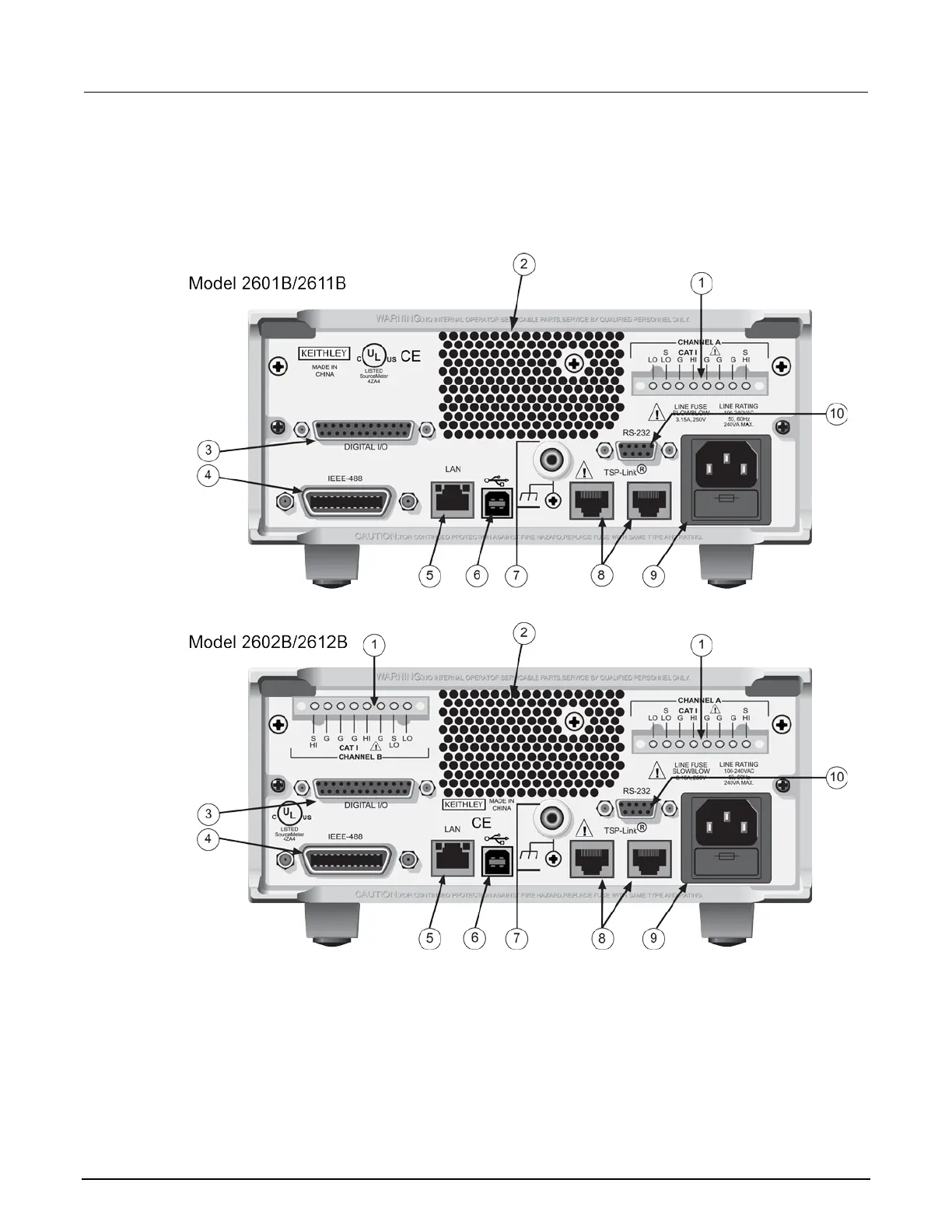

Figure 2: Rear panel (Models 2601B, 2602B, 2611B, and 2612B)
