Section

7: TSP command reference Series 2600B System SourceMeter® Instrument

Reference Manual

7-40 2600BS-901-01 Rev. B / May 2013

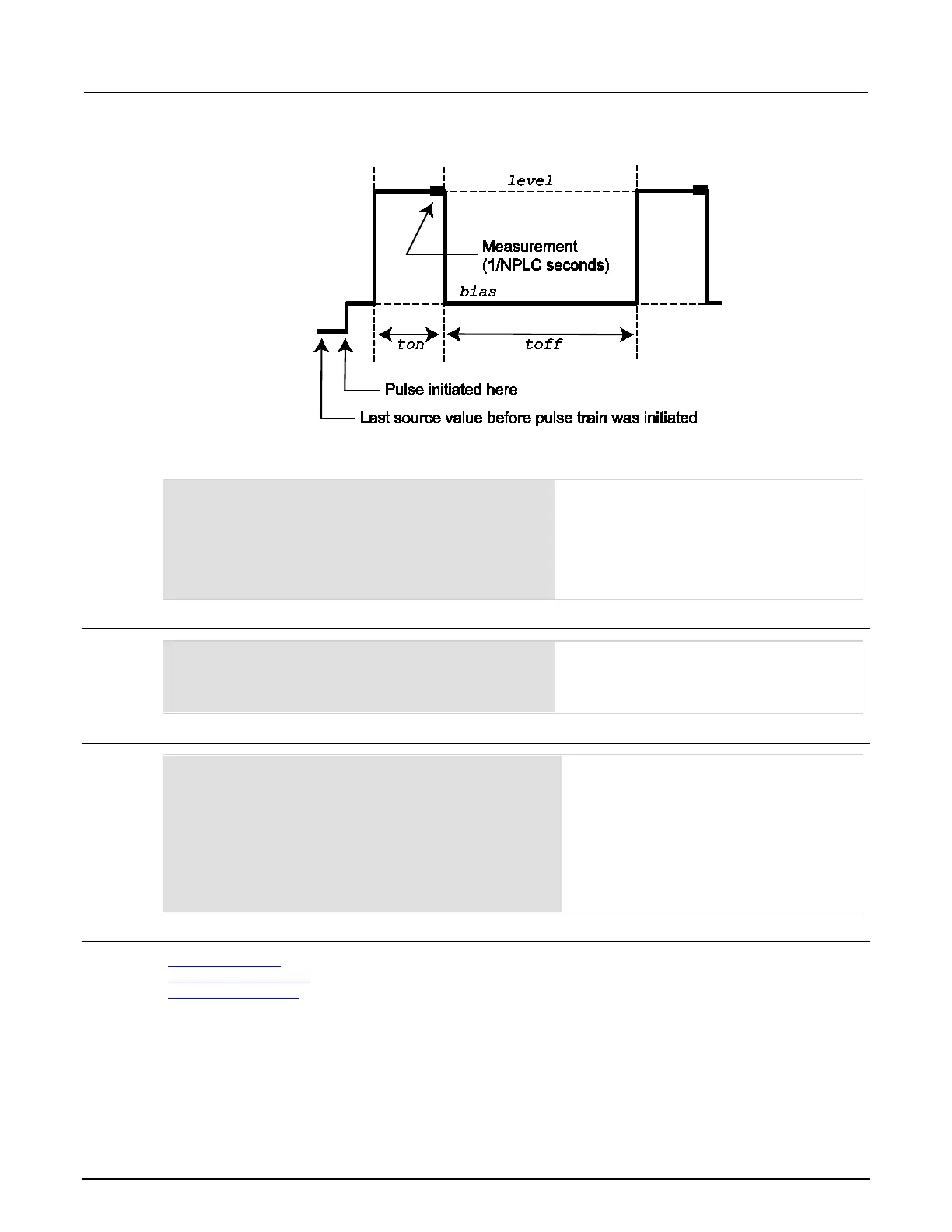

Figure 130: ConfigPulseVMeasureI()

Example 1

ConfigPulseVMeasureI(smua, 0, 20, 1,

0.001, 0.080, 10, smua.nvbuffer1, 2)

Set up a pulse train that uses System

SourceMeter

instrument channel A. The pulse

amplitude is 20 V and returns to 0 V after 1 ms.

The pulse remains at 0 V for 80 ms, and the

current limit is 1 A during the pulse. The pulse

train consists of 10 pulses, an

d the pulse train is

assigned a tag index of 2.

Example 2

local timelist = { 1, 2, 3, 4, 5 }

f, msg = ConfigPulseVMeasureI(smua, 0, 1,

100e-3, 1, timelist, 5, nil, 1)

Variable off time between pulses in a pulse

train.

Configure a pulse with 1 second on-time and

variable off-time, no measurement.

Example 3

rbi = smua.makebuffer(10)

rbv = smua.makebuffer(10)

rbi.appendmode = 1

rbv.appendmode = 1

rbs = { i = rbi, v = rbv }

f, msg = ConfigPulseVMeasureI(smua, 0, 10,

1e-3, 1e-3, 1e-3, 2, rbs, 1)

Simultaneous IV measurement during pulse.

Also see

InitiatePulseTest() (on page 7-103)

InitiatePulseTestDual() (on page 7-104)

KIPulse factory script (on page 5-21)
