Keithley DMM7510 User Manual

Model DMM7510
7½ Digit Multimeter User's Manual Section 3:
Using a remote interface
DMM7510-900-01 Rev. B / May 2015 3-9
To use the Keithley Configuration Panel to determine the VISA resource string:
1. Click Start > All Programs > Keithley Instruments > Keithley Configuration Panel. The
Select Operation dialog box is displayed.

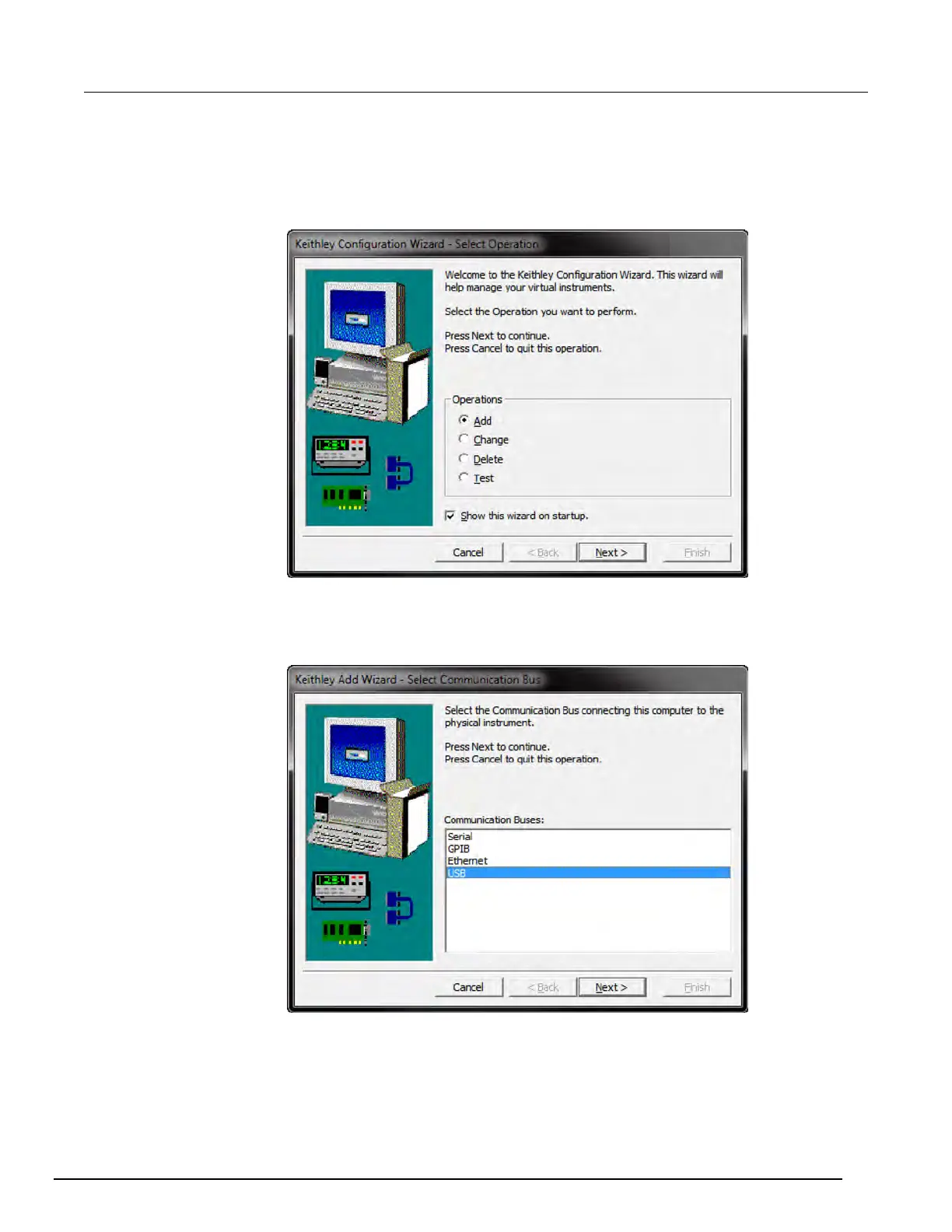

Figure 15: Select Operation dialog box
2. Select Add.
3. Click N
ext. The Select Communication Bus dialog box is displayed.
Figure 16: Select Communication Bus dialog box
4. Select USB.
5. Click Next. The Select Instrument Driver dialog box is displayed.
北京海洋兴业科技股份有限公司（证券代码：839145）
电话：010-62176775
网址：www.hyxyyq.com

Keithley DMM7510 Specifications

General

Resolution	7.5 digits
DC Voltage Range	100 mV to 1000 V
AC Voltage Range	100 mV to 750 V
DC Current Range	10 µA to 10 A
Resistance Range	10 Ω to 1 GΩ
Sampling Rate	1 MS/s
Memory	27.5 million readings
Display	5 inch capacitive touchscreen
AC Voltage Accuracy	±0.06% of reading
AC Current Range	10 A
Connectivity	USB, LAN, GPIB
