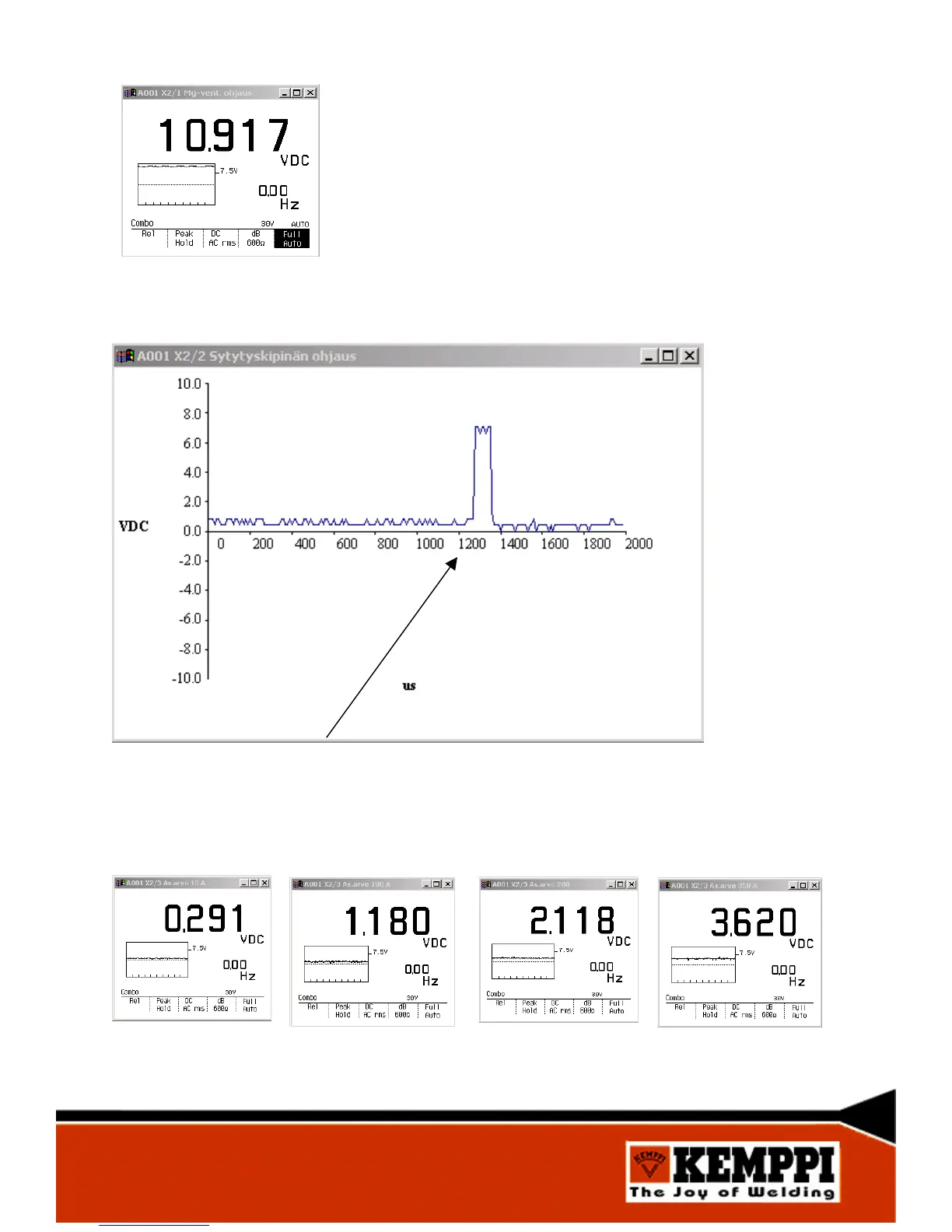

Solenoid valve Y001 control, voltage on connector X2/1
Solenoid valve open
TIG ignition spark control (if the arc is not on immediately, then controls will be on in 10 ms. Intervals for 2 seconds)
TIG HF-ignition spark control, voltage on connector X2/2
10 A
100 A 200 A 350 A
Set value from control card A001 (panel), voltage on connector X2/3
43
