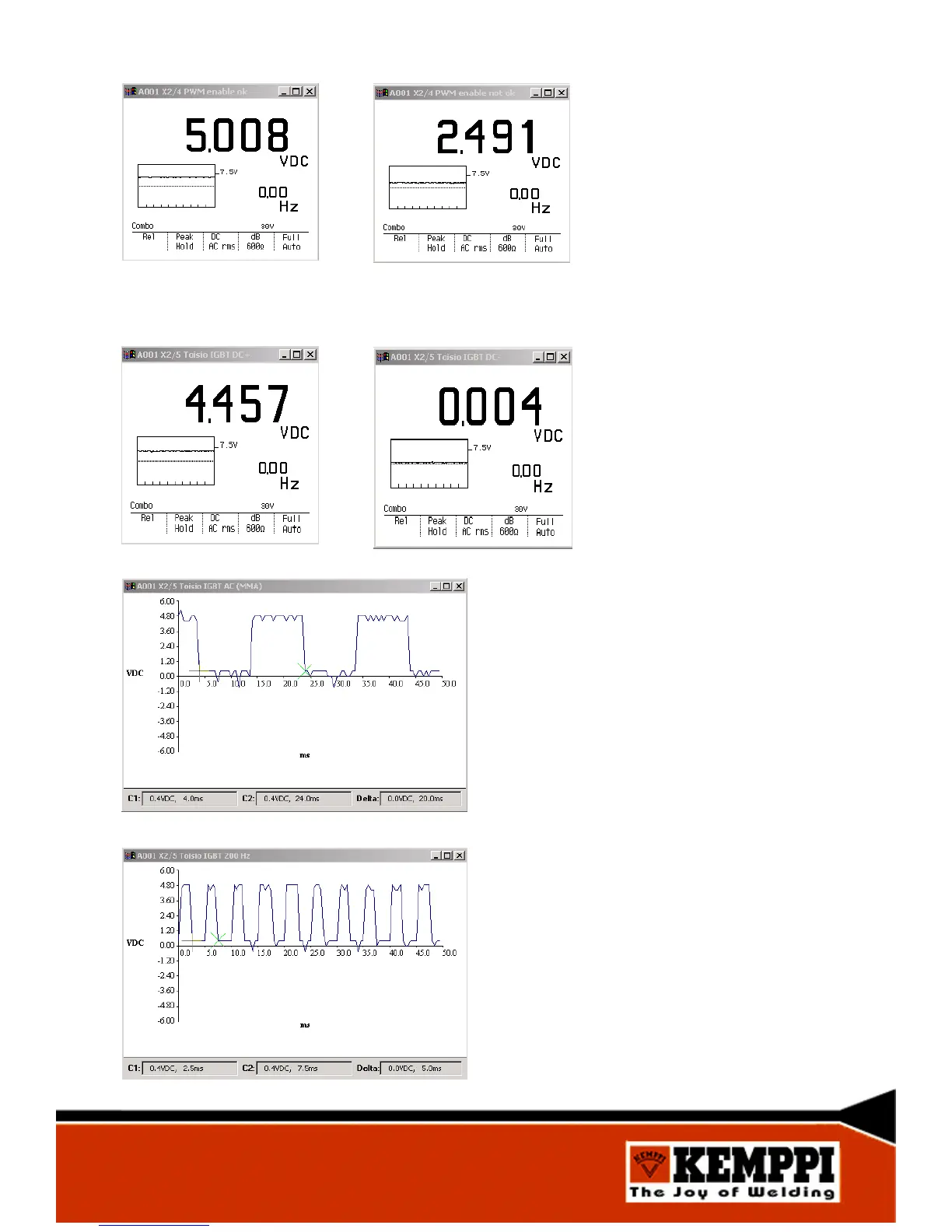

PWM-control enabling, voltage on connector X2/4
PWM enabled PWM disabled
DC+
DC-
Secondary IGBT control, voltage on connector X2/5
AC 50 Hz, MMA
AC 200 Hz, TIG
44
