Promig 530 / 0612 – 15© kemPPi oy
E
B
D
C
A
F
G
2.10. SHIELD GAS
Handle gas bottle with care. There is a risk for injury if gas bottle or bottle valve is
damaged!
For welding stainless steels, mixed gases are normally used. Check that the gas bottle valve is
suitable for the gas. The ow rate is set according to the welding power used in the job. A suitable
ow rate is normally 8 - 10 l/min. If the gas ow is not suitable, the welded joint will be sporous.
Contact your local Kemppi-dealer for choosing gas and equipment.
2.10.1. Installing gas bottle
Always fasten gas bottle properly in vertical position in a special holder on the wall or
on a carriage. ReSAVEber to close gas bottle valve after having nished welding.

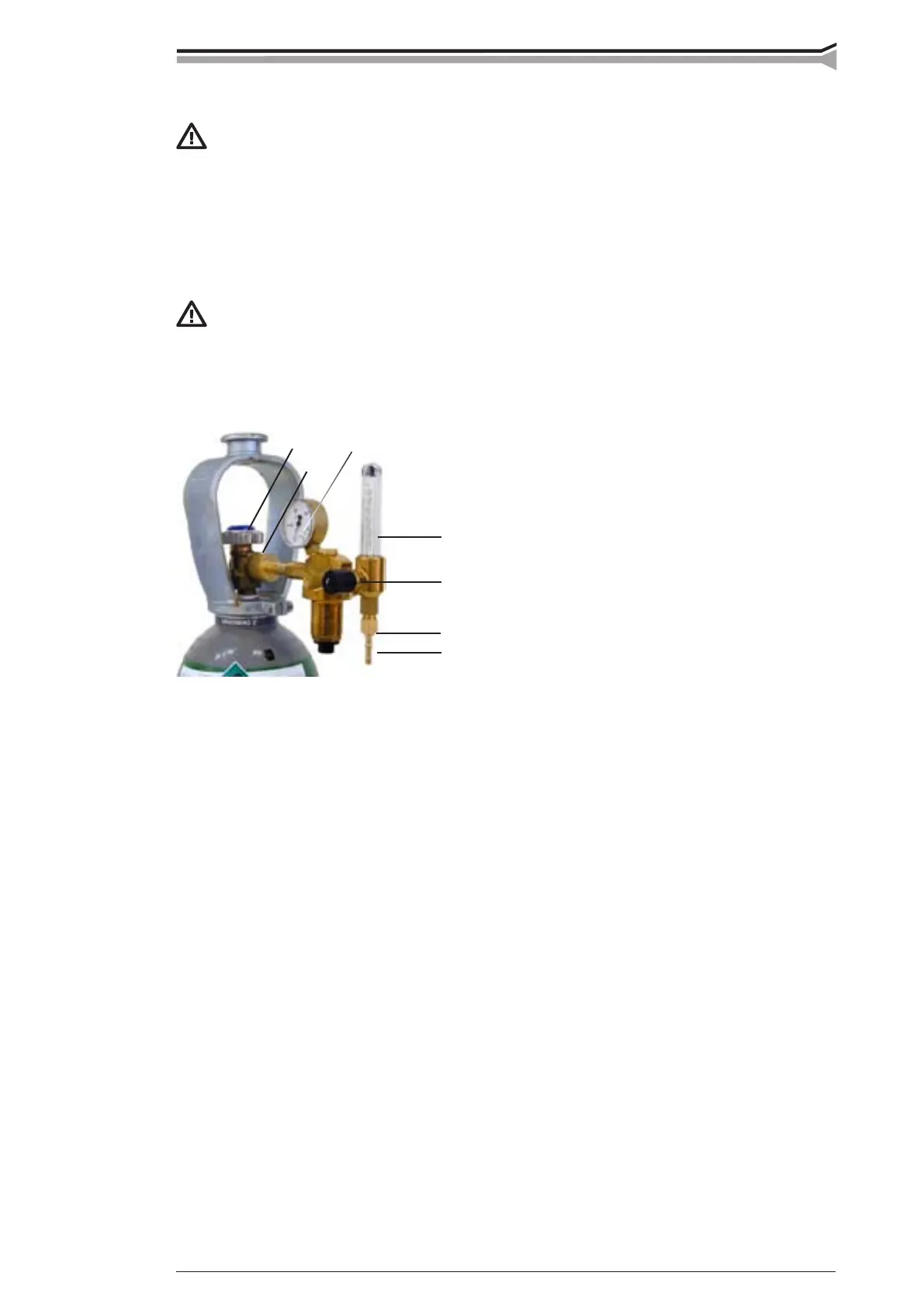

Parts of gas ow regulator
A Gas bottle valve
B Press regulation screw
C Connecting nut
D Hose spindle
E Jacket nut
F Gas bottle pressure meter
G Gas hose pressure meter
The following installing instructions are valid for most of the gas ow regulator types:
1. Step aside and open the bottle valve (A) for a while to blow out possible impurities from
the bottle valve.
2. Turn the press regulation screw (B) of the regulator until no spring pressure can be felt.
3. Close needle valve, if there is one in the regulator.
4. Install the regulator on bottle valve and tighten connecting nut (C) with a wrench.
5. Install hose spindle (D) and jacket nut (E) into gas hose and tighten with hose clamp.
6. Connect the hose with the regulator and the other end with the wire feed unit. Tighten the
jacket nut.
7. Open bottle valve slowly. Gas bottle pressure meter (F) shows the bottle pressure. Note! Do
not use the whole contents of the bottle. The bottle should be lled when the bottle pressure
is 2 bar.
8. Open needle valve if there is one in the regulator.
9. Turn regulation screw (B) until hose pressure meter (G) shows the required ow (or pressure).
When regulating ow amount, the power source should be in switched on and the gun switch
pressed simultaniously.
Close bottle valve after having nished welding. If the machine will be out of use for a long time,
unscrew the pressure regulation screw.
