16 – Promig 530 / 0612 © kemPPi oy
P21 R21 P22 R22 P23 S22
S21 S24 S25 S26 R23 S22
2.11. MAIN SWITCH I/O
When you turn the main switch of the Kemppi Pro Evolution power source into I-position, pilot
lamp close to it is lighted and the equipment is ready for welding. The equipment is returned to that
welding method with which the welding was last carried out before the main switch was turned
to zero position.
Always start and switch off the machine with the main switch, never use the mains
plug as a switch.
2.12. OPERATION OF COOLING UNIT (PROCOOL 10, PROCOOL 30)
Operation of cooling unit is controlled in such a way that pump is started when welding is started.
After welding stop pump is rotating for approx. 5 min cooling the liquid to ambient temperature.
Read in operation instructions for the PROCOOL 10 / 30 unit the trouble situations of the liquid
circulation system and protection against torch etc. damage.
3. CONTROL PANELS OPERATIONS

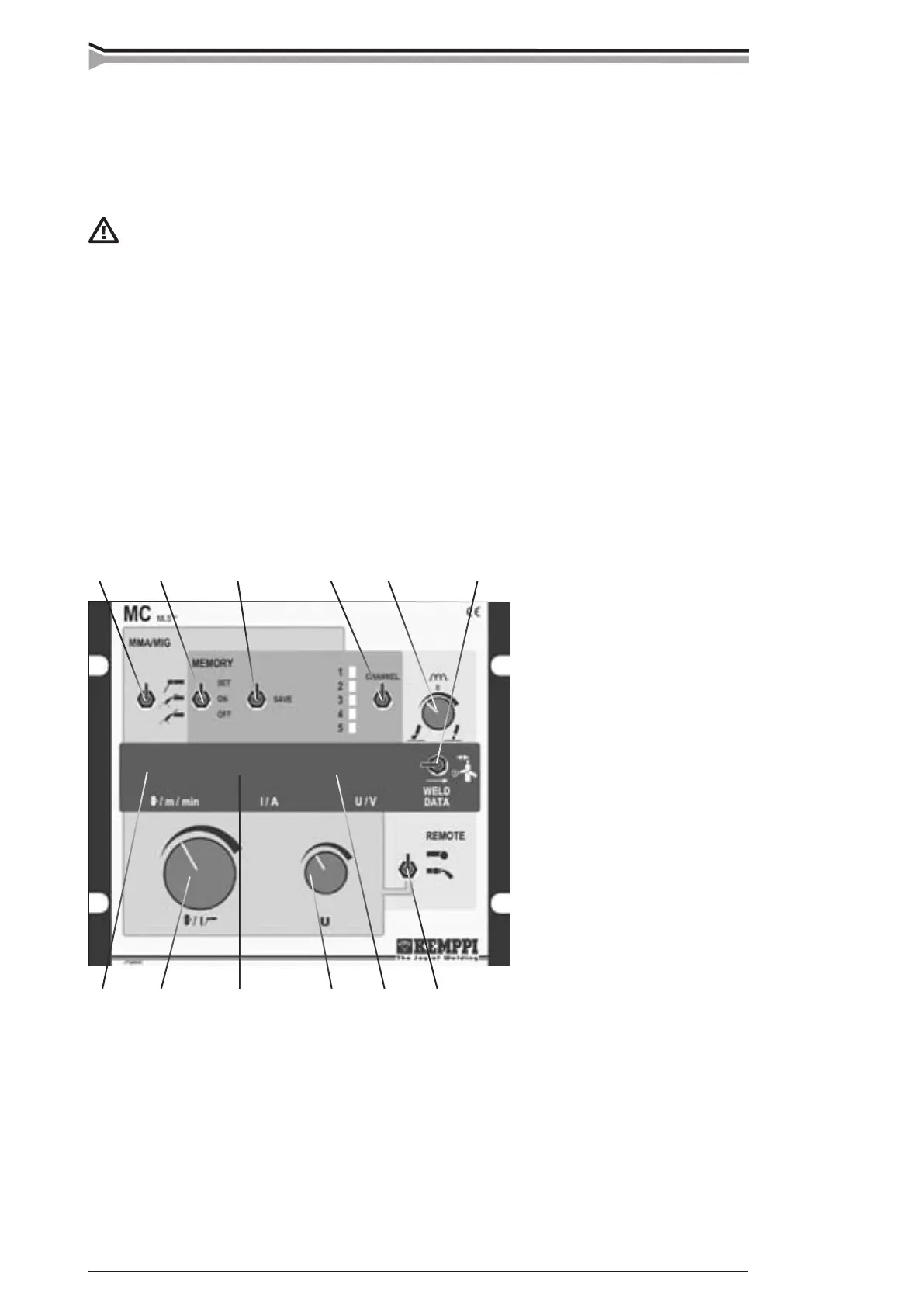

3.1. MC CONTROL PANEL 6263501
MIG basic operations
Welding method selection (S21): MIG two-sequence procedure, MIG four-sequence procedure,
MMA
Control mode selection (S22): local, remote, gun
Local controls: wire feed speed/MMA current (R21), welding voltage (R22)
Controls for MIG and MMA welding dynamics (R23)
Digital displays: wire feed speed (P21), current (P22), voltage (P23)
Retrieval of last used welding values (S23)
