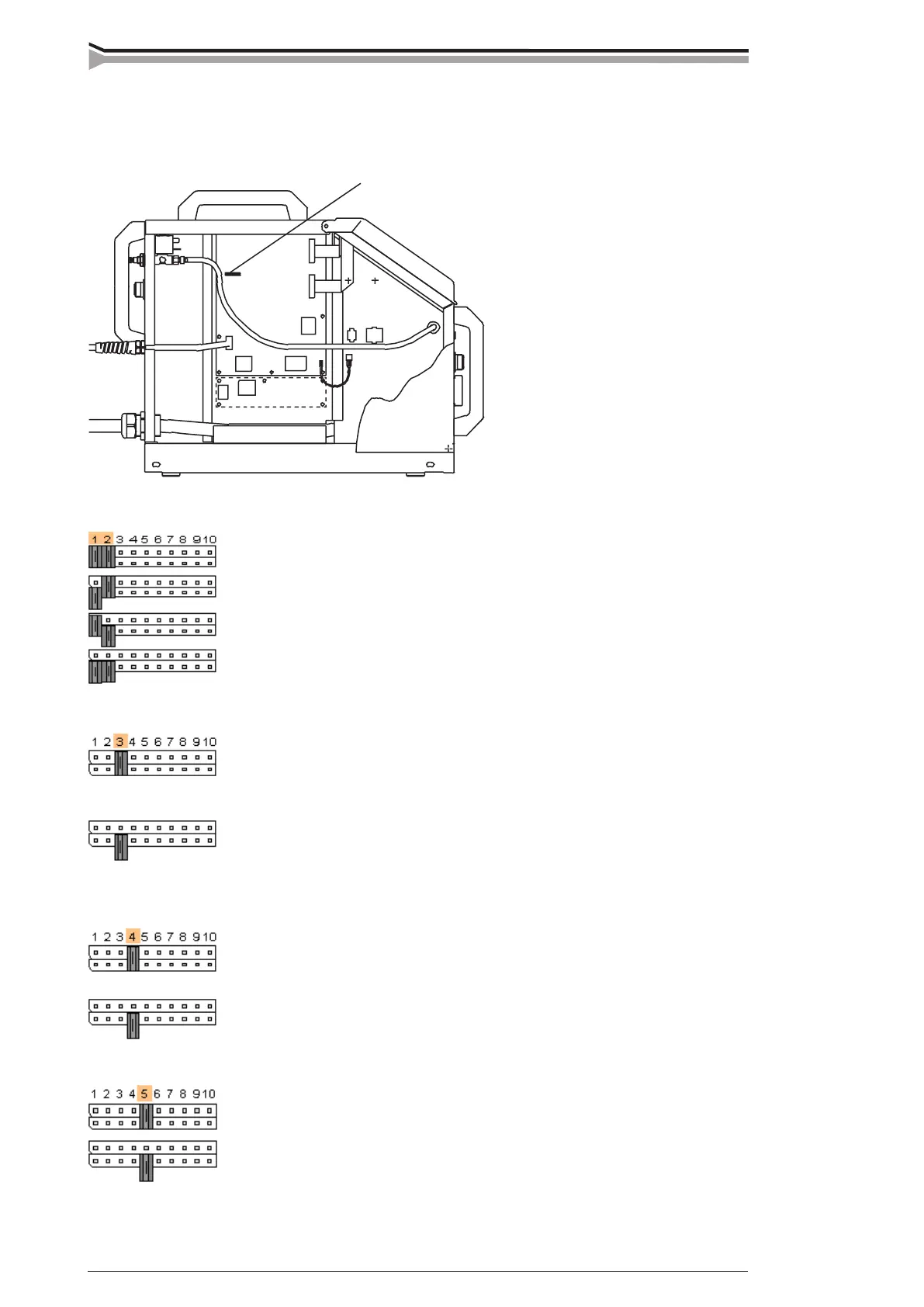

5. PROMIG 530 A001 JUMPER BLOCK FUNCTIONS
1. Selection of wire feeder address
Feeder 1, address 102
Feeder 2, address 105
Feeder 3, address 150
Feeder 4, address 153
3. Welding with PROCOOL an air cooled MIG gun
COOLER is on, air/water cooling selection is air –> welding stops after 1
s welding, Err 7 on display, on delivery
COOLER is on, air/water cooling selection is air –> welding is allowed (use
e.g. with TIG/MIG sets)
4. Linearize output, wfs and voltage, as a function of control voltage
Output is linear according to potentiometer turning angle, on delivery
Output is linear according to control voltage: wfs: 0-5 V –>0-18,25 m/min,
U2: 0-5 V –> 0-50 V
5. Disable PMT and WS MIG guns
PMT , WS and RMT10 functions enabled
PMT, WS and RMT10 functions disabler (Err11), only normal guns possible
to use
Feeder address
Wire feed speed
