KENT SP500 - Speed Adjustment

02/26/02
Page 9.1
Speed
Speed Adjustment

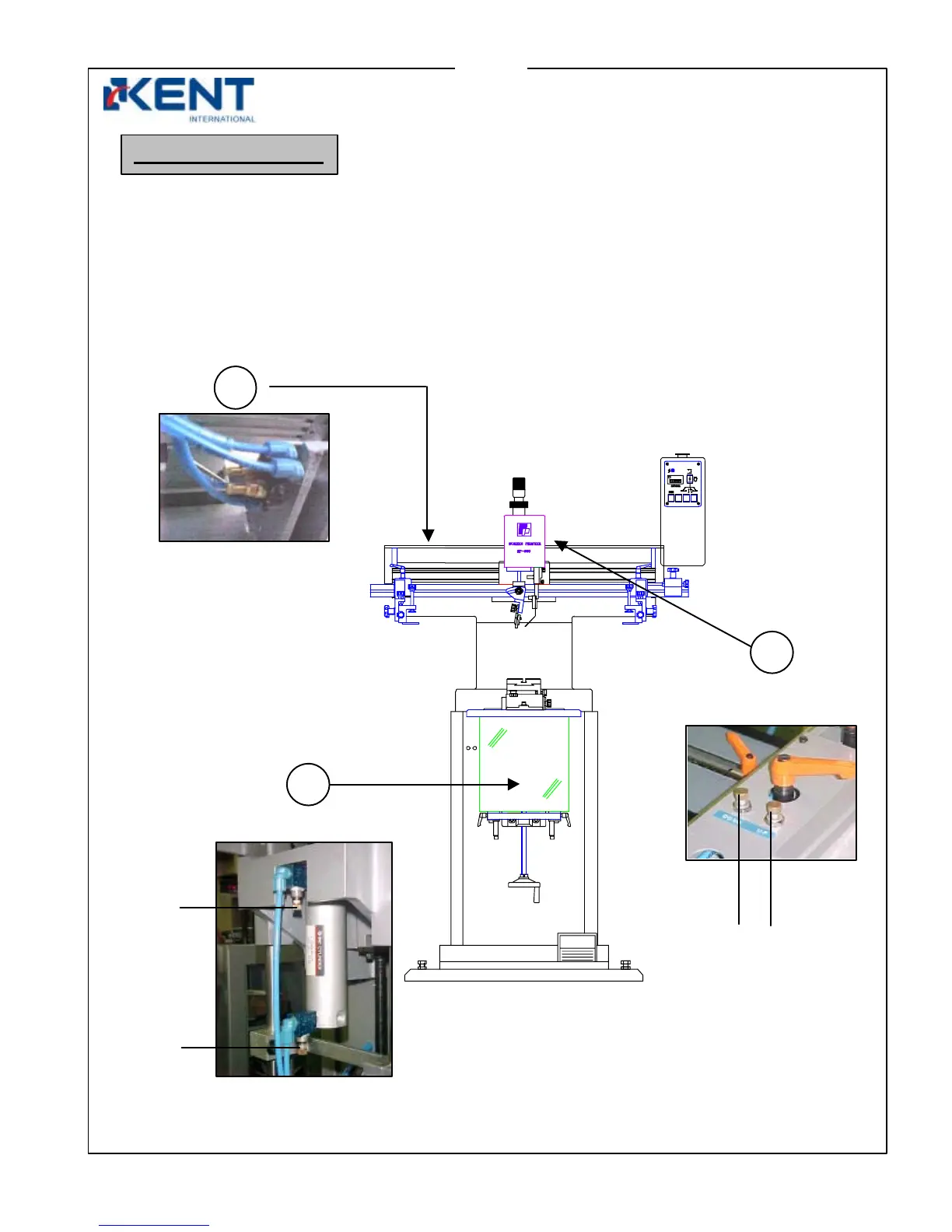

Turn any one of the control valves shown below to increase or decrease speed of
squeegee, screen and worktable.
1. Squeegee/screen left/right speed adjustment
2. Work table up/down speed adjustment
3. Squeegee/flooder up/down speed adjustment
up
2
down
behind acrylic panel
behind
squeegee head
updown
1
3
