KENT SP500 - Squeegee Mounting and Adjustment

01/28/02
Page 8.5
Setup
Kent Pad Printer Canada Inc.

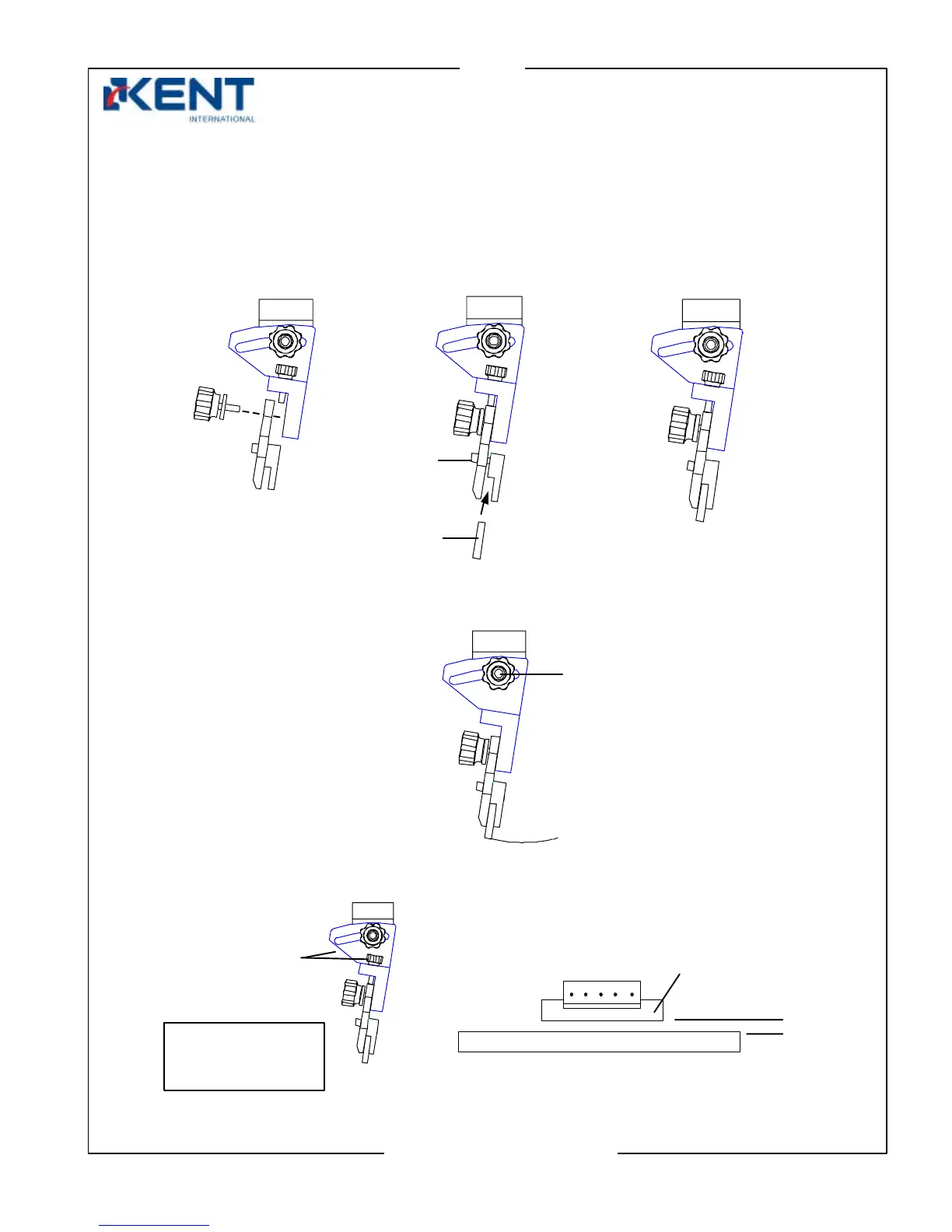

3. Mounting & adjusting squeegee
Mounting squeegee
- Adjust angle of squeegee assembly.
- Level squeegee with screen
Mount squeegee
holder to assembly
Mount
squeegee
A
ngle
adjustment
kno
b
Locking
screws
Squeegee
A
djustment
knobs
To adjust turn both
knobs in opposite
directions
Must be
parallel
screen
squeegee
