KENT SP500 - Page 43

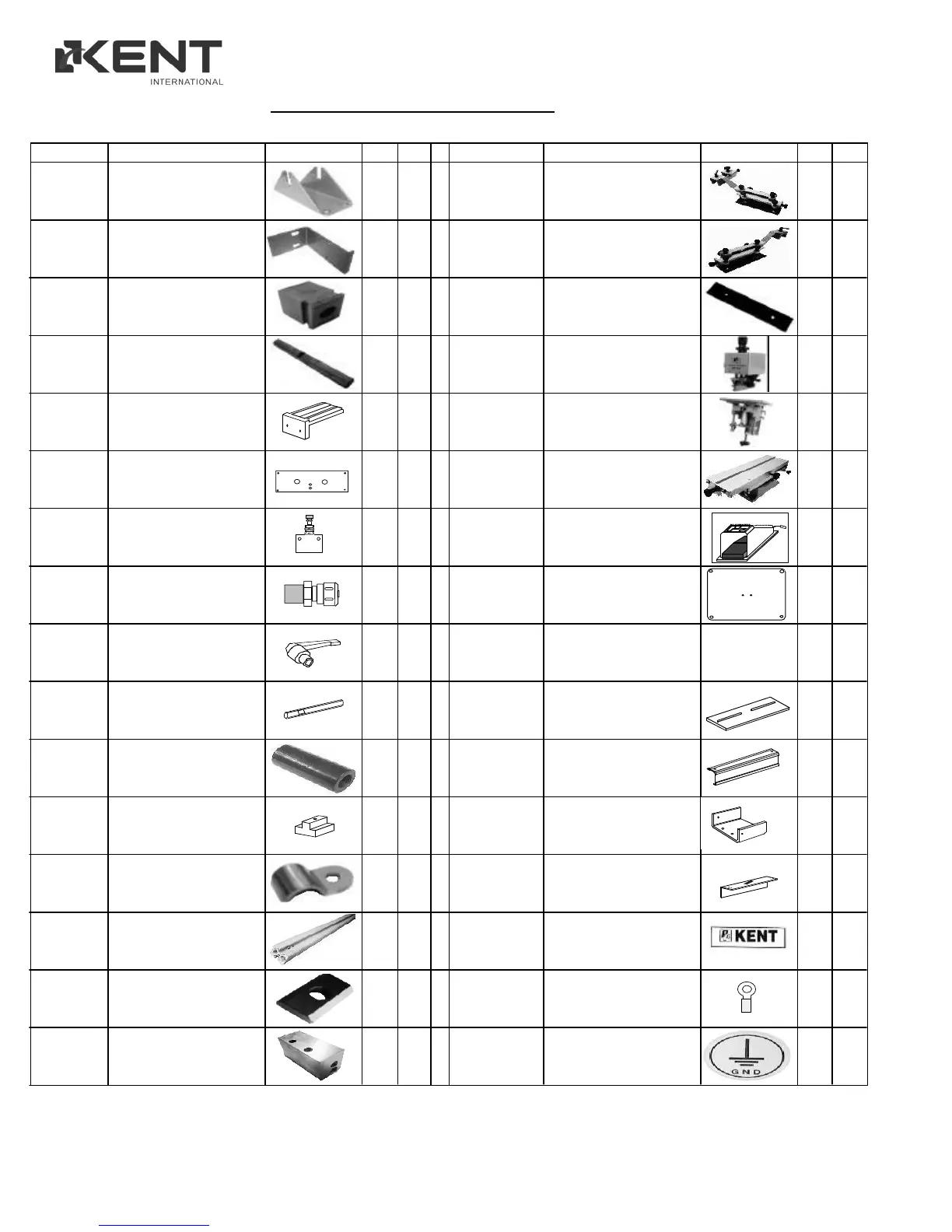

SP500 SPARE PARTS LIST: page 2 of 3
PARTS NO. DESCRIPTION DRAWING REQ. QTY. PARTS NO. DESCRIPTION DRAWING REQ. QTY.
50-PC-240 TRANSMISSION BLOCK 1 50-PS-A001 SCREEN ARM ASSY. 1
(RIGHT)
50-PC-250 CYLINDER MOUNTING 2 50-PS-A002 SCREEN ARM ASSY. 1
BLOCK (LEFT)
50-PC-260 PISSON 2 50-PS-030.02 TUBE BRACKET 1
50-PC-270 PUSH ROD 1 50-SH-A002 SQUEEGE SLIDE AND 1
COVER ASSY.
50-SH-132 FORWARD ARM 1 50-WT-A007 UP/DOWN PLATFORM 1
CASTING ASSEMBLY
50-SH- SQUEEGEE HEAD 1 50-WT-A004 WORKTABLE ASSY. 1
031.01. COVER
15-PFR-030 FLOW REGULATOR 2 50-EC-A270 FOOT SWITCH WITH 1
COVER
15-PFT-030 CK-1/8-PK4-KU 4 50-SC-020.01 TOP COVER PLATE 1
STRAIGHT CONNECTOR
50-PC-050 KIPP CLAMP LEVER M8 2 15-SC-130.01 DOOR HANDLE 1
10-WT- M8x 1.25 THREAD ROD 2 50-SC-041.02 CARRIAGE
S
COVER 1
061.01.
50-SH-160 ID.8.5x 38mmL 2 50-SC-050 SLIDE COVER L830mm 2
WASHER
10-WT-030 M8 NUT 2 50-SC-090 WORKTABLE COVER 1
15-MEC-230 WIRE MOUNTING CLAMP 3 50-SC-111 CYLINDER COVER 1
50-PS- PROFILE 40x 40mm 1 MT-410 LABEL (30mm x115mm) 1
010.02. 1mL.
50-PS-240 PROFILE NUT M8 2 15-EC-791 TERMINAL FOR GROUND 1
WIRE
50-MB- SQUARE TUBE LINKAGE 2 15-EC-211 GROUND WIRE LABEL 2
031.01.
MACHINE SERIAL NO :_____________
DATE :_____________
