7.3 Placing
The moisture analyser is supplied part-assembled. Control whether the delivery is
complete immediately after unpacking the individual parts and assemble the separate
component parts according to the sequences.

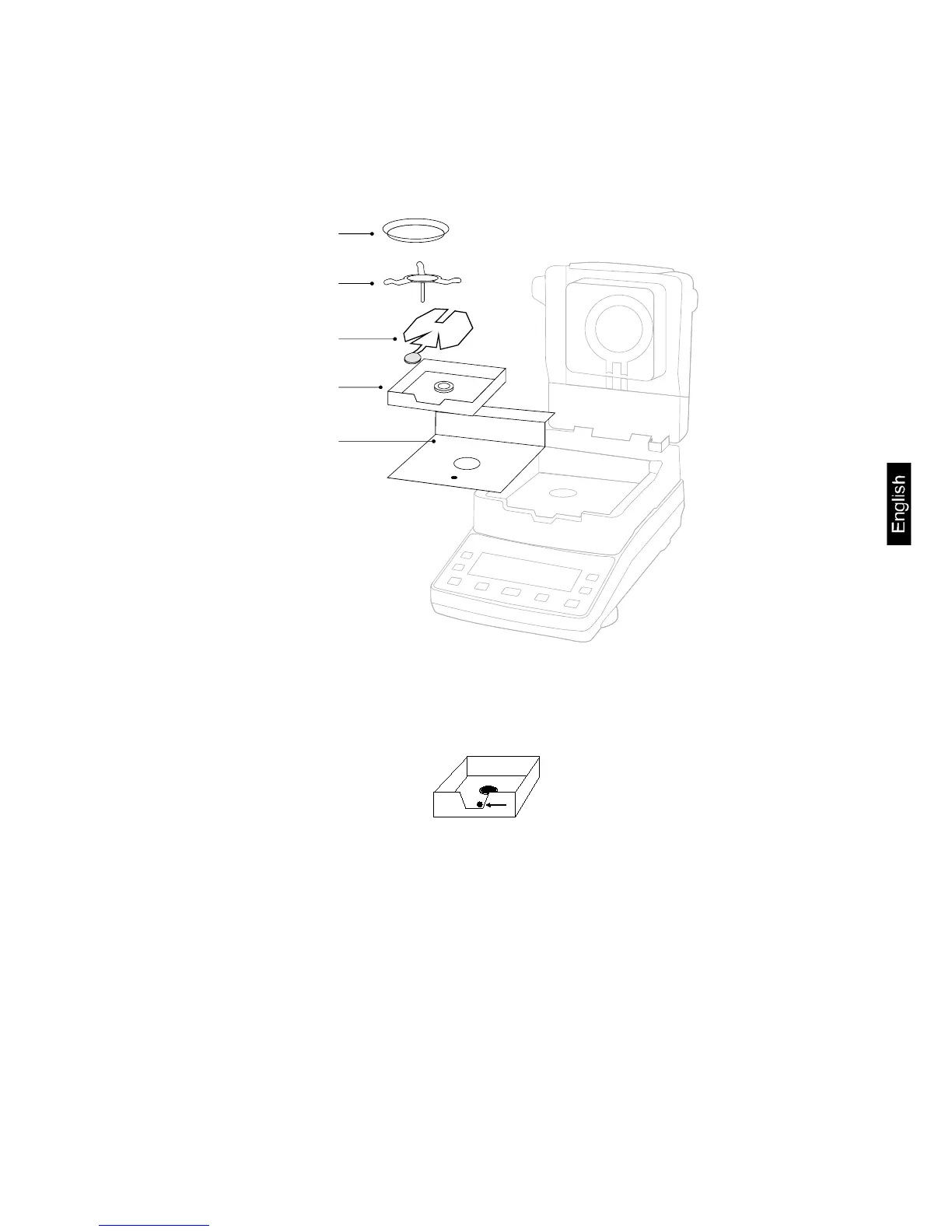

1. Put heat shield into the sample chamber.
2. Place windshield in a way that the pin in the heat shield is aligned to the hole
in the heat shield.
3. Place removal aid into the windshield. Ensure that the lug lies exactly in the
groove of the windshield.
4. Attach the sample dish holder carefully and rotate it until it locks.
5. Put the sample dish on the removal aid.
1
2
4
5
3
