38 DAB-BA-e-1813
12 RS 232 interface
Condition:
The following conditions must be met to provide successful communication between
the moisture analyser and the printer.
Disconnect moisture analyser from the power supply and connect to the
appliance interface with a suitable cable. Faultless operation requires an
adequate KERN interface cable.
Communication parameters of the RS 232 interface of moisture analyser and
printer must match.

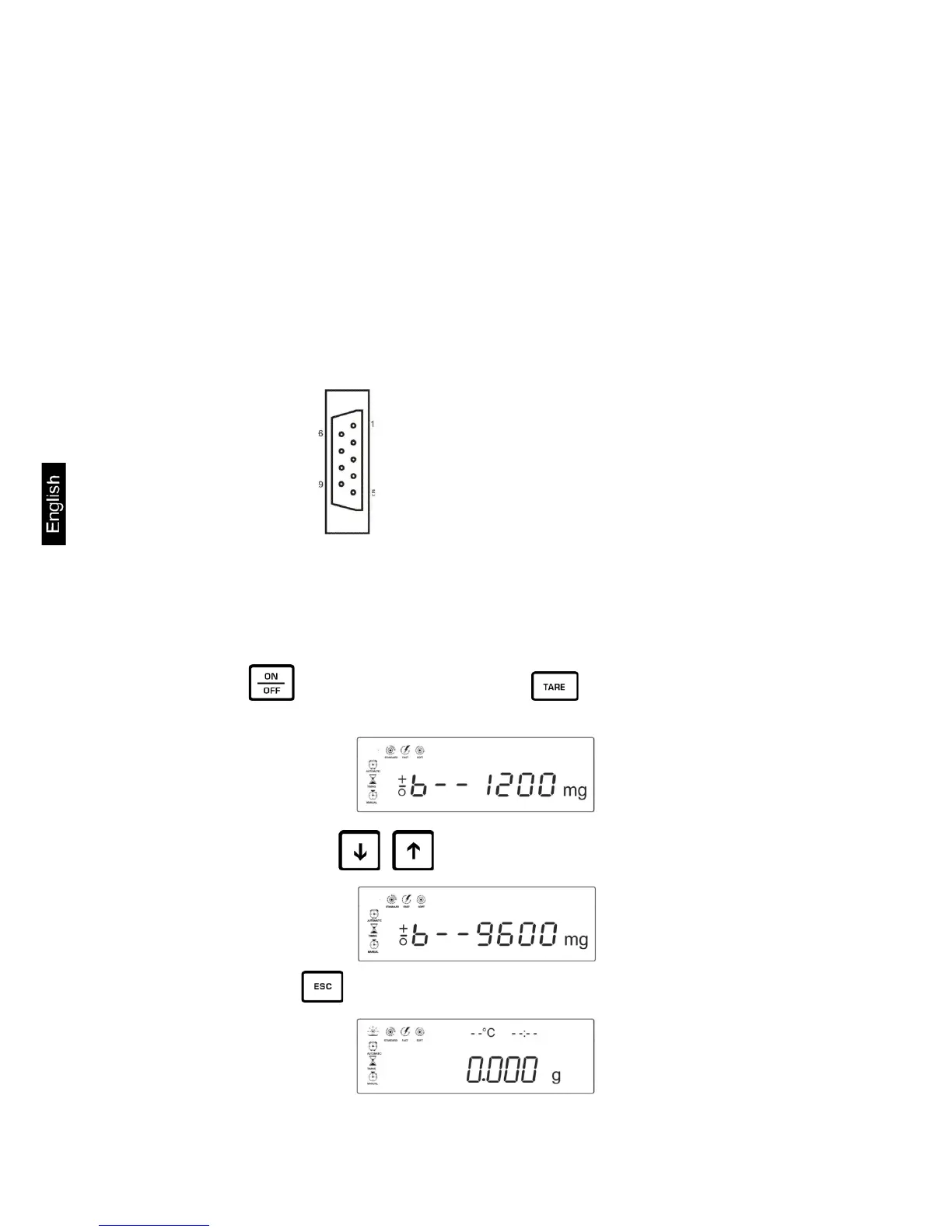

12.1 Technical data
Connection 9 pin d-subminiature bushing
Pin3 - TxD
Pin5 - GND
Baud-Rate 1200 / 2400 / 4800 /9600 selectable
Parity 7bits / 2 stop bits
12.2 Setting the baud rate
Press ,then release quick und press fast. The current baud rate is
indicated.
Using arrow keys select baud rate .
Confirm with .
