5.3.1 How To Remove The Weighing Mechanism Unit
5.3.1.1 EW 120-1200 and EW-C
(1) Remove the case referring to 5-1.

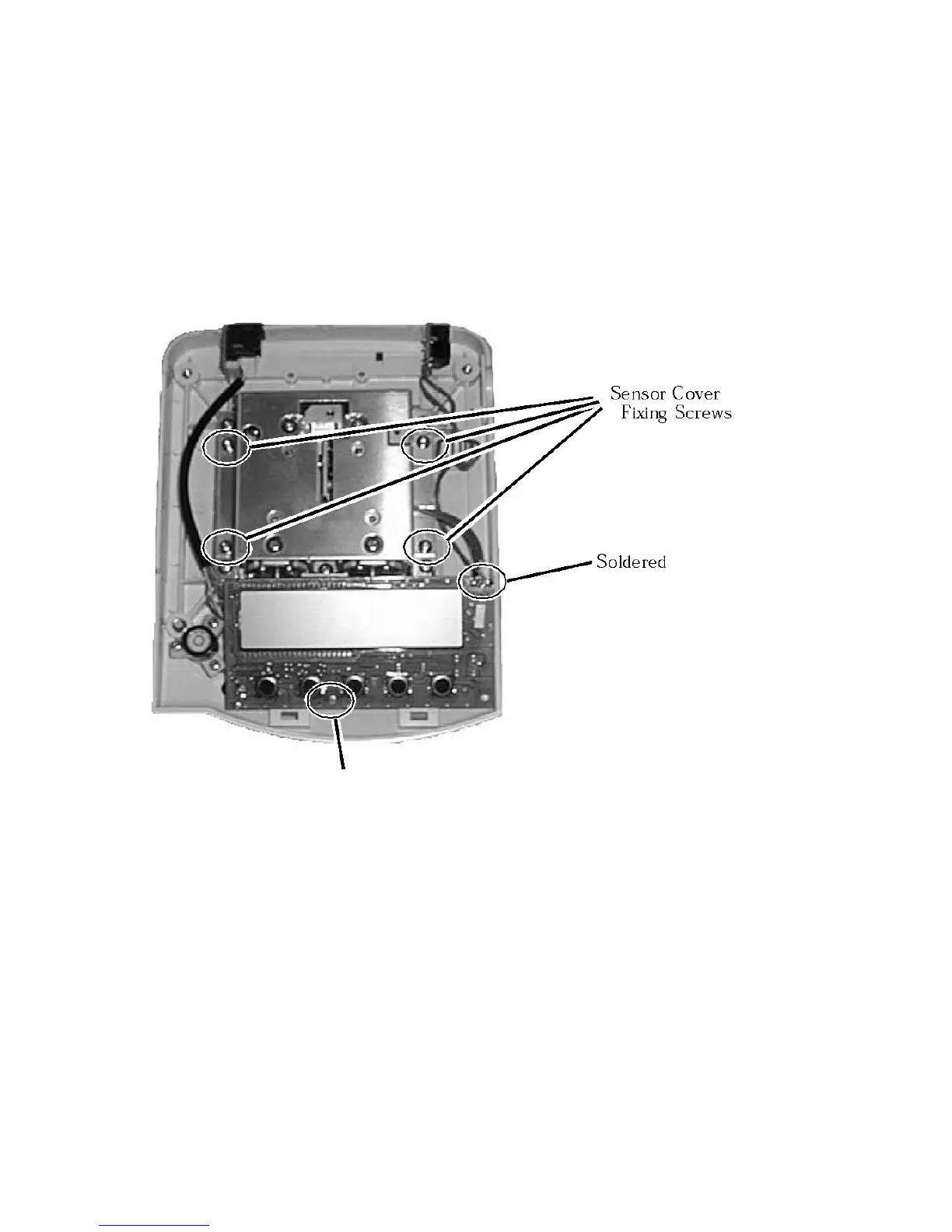

(2) Remove four sensor cover fixing screw.
(3) Remove wires to the tuning-fork sensor, by welding solders at AJDP
circuit board
(4) Remove the AJDP circuit board fixing screw.
AJDP Circuit Board Fixing Screw
- 31 - EW_EW-C_EG_N-SH-e-0722
