KERN EW User Manual

5.6.2 How To Install AJDP Circuit Board
(1) Solder wires of the Tuning-fork sensor to the new AJDP board
(2) Plug connectors.

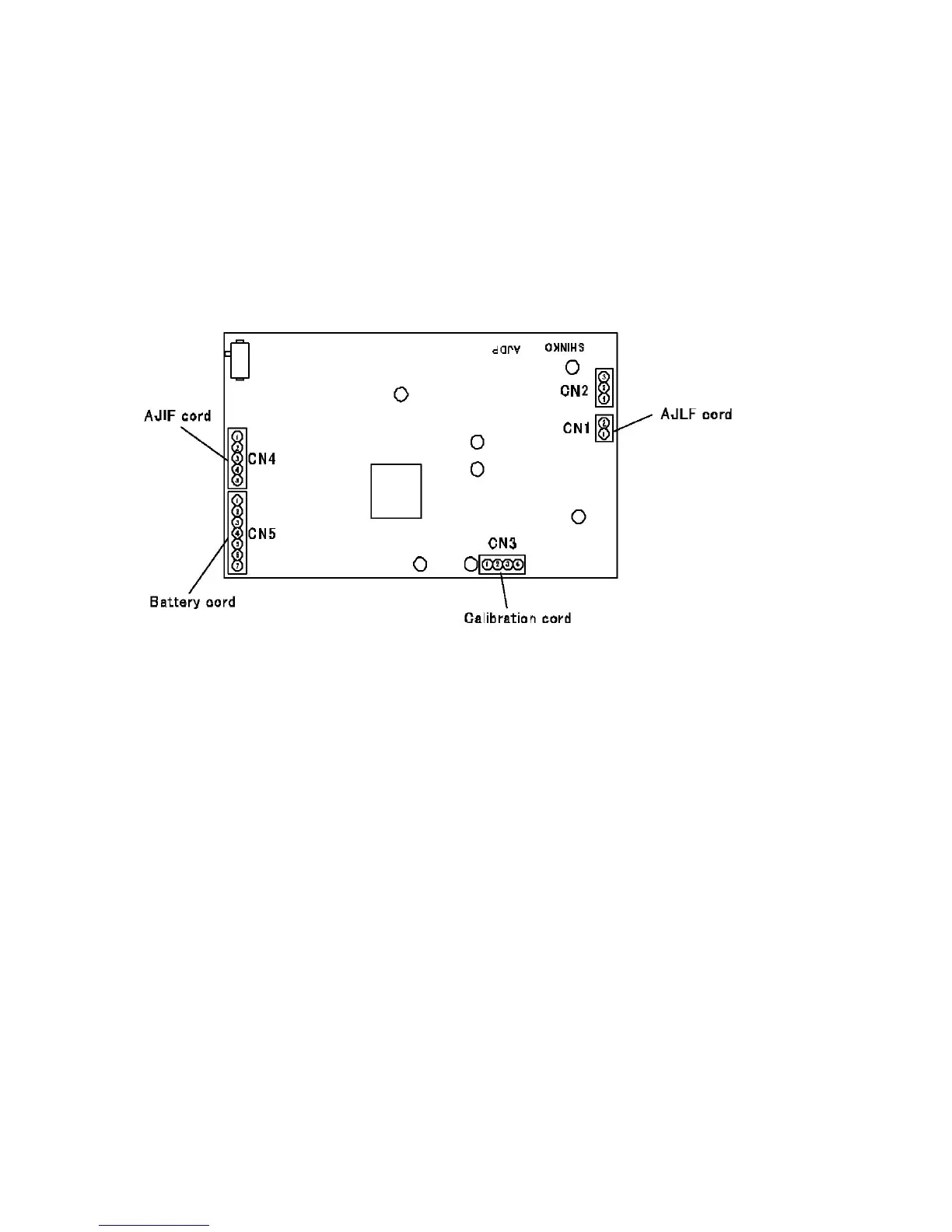

CN1 : AJLF cord
CN3 : Calibration cord
CN4 : AJIF cord
CN5 : Battery cord
(3) Place the AJDP board on the chassis. Fix it with a fixing screw.
(4) Cover the scale referring to 5-2.
- 38 - EW_EW-C_EG_N-SH-e-0722

KERN EW Specifications

General

Display	LCD
Minimum part weight at piece counting (Laboratory scale)	0.1 g
Weighing plate material	stainless steel
Measuring system	Strain gauge
Interface	RS 232
Calibration	External calibration
Power Supply	AC adapter or 4xAA batteries
Units	g lb oz
