KERN EW User Manual

5.4.1 Plate Rib Replacement Procedure

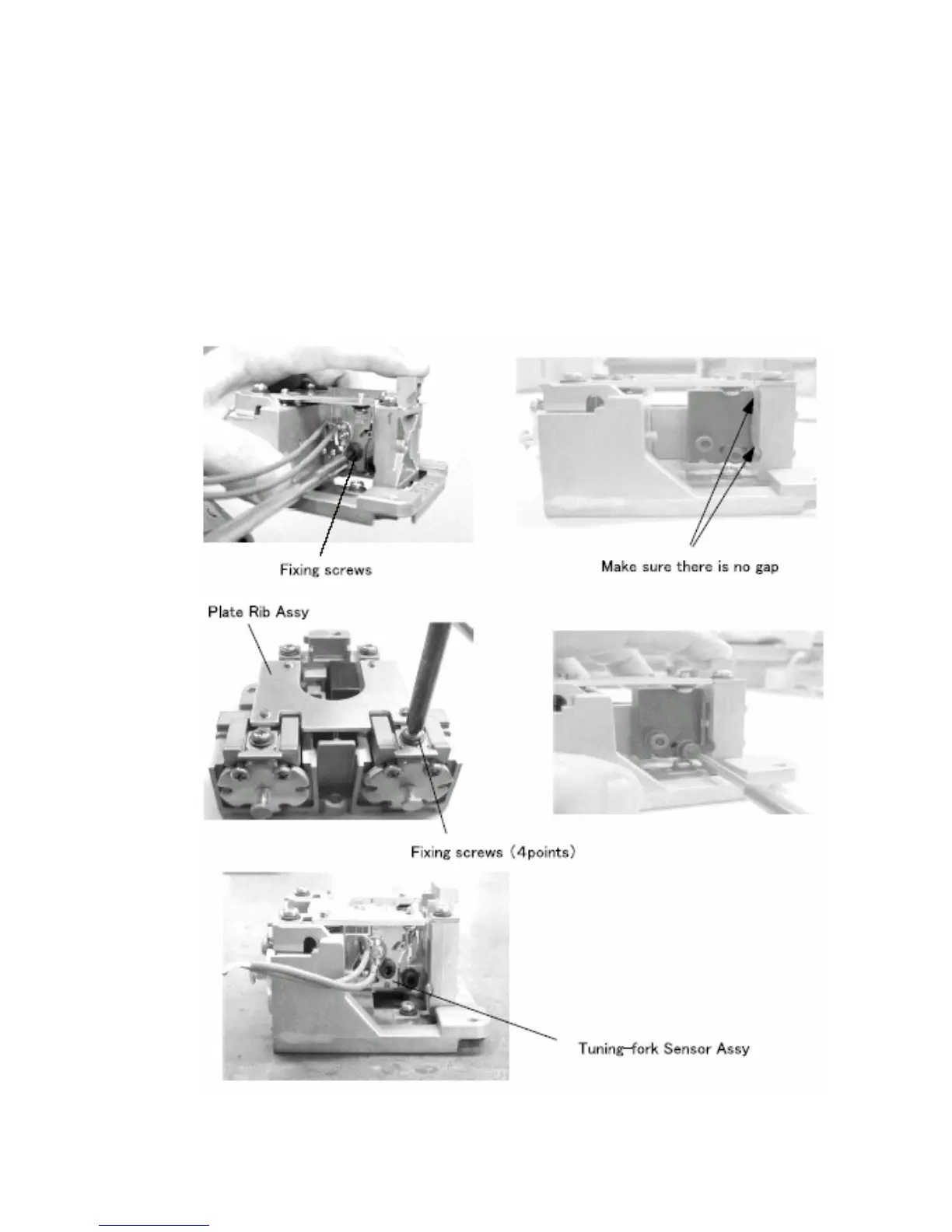

(1) Remove the mechanism unit from the chassis. (5-3)
(2) Replace the tuning-fork sensor.
(3) Attach the fixing jig with fixing screws for the tuning-fork sensor assy.
*The fixing jig should be attacked to the guide link.
(4) Remove the damaged plate rib by unscrewing and fix the new one.
(5) Remove the fixing jig.
(6) Fix the tuning-fork sensor assy. (torque 20kgfcm)
- 35 - EW_EW-C_EG_N-SH-e-0722

KERN EW Specifications

General

Display	LCD
Minimum part weight at piece counting (Laboratory scale)	0.1 g
Weighing plate material	stainless steel
Measuring system	Strain gauge
Interface	RS 232
Calibration	External calibration
Power Supply	AC adapter or 4xAA batteries
Units	g lb oz
