KERN EW User Manual

6.1.2 EW 2200-12K

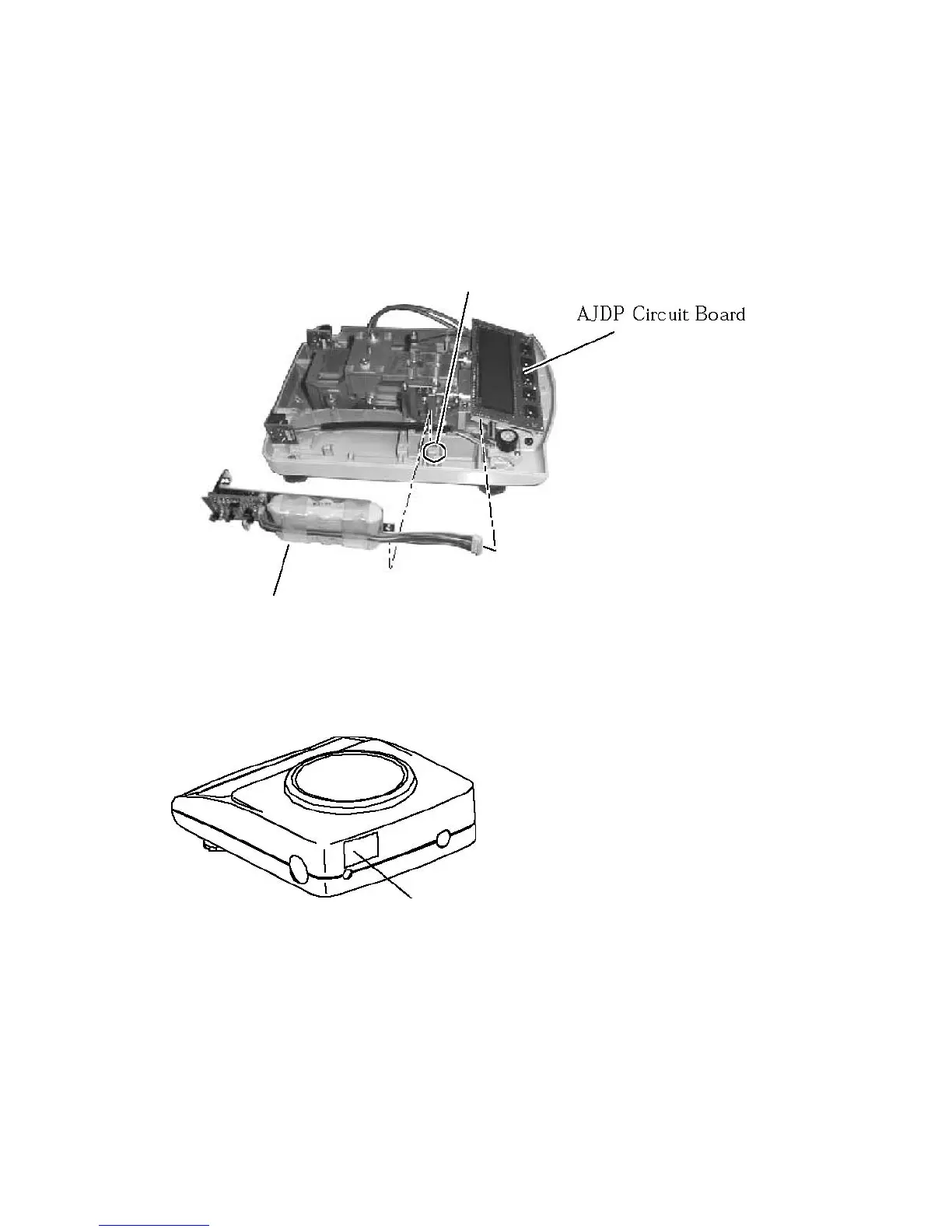

(1) Remove the case referring to 5-1.
(2) Plug AJ battery cord to CN5 on AJDP board.
(3) Fasten the AJM battery held together into the nylon-clamp which has holed the
cord of the AJMIF circuit board assy.
Nylon Clamp
AJMBT Assy
(4) Cover the scale and stick the battery label above power jack on the rear panel.
Battery Label
- 43 - EW_EW-C_EG_N-SH-e-0722

KERN EW Specifications

General

Display	LCD
Minimum part weight at piece counting (Laboratory scale)	0.1 g
Weighing plate material	stainless steel
Measuring system	Strain gauge
Interface	RS 232
Calibration	External calibration
Power Supply	AC adapter or 4xAA batteries
Units	g lb oz
