Key-Disp KD51C-U - Product Name and Model; Specifications; Appearance and Size

1
Product Name and Model
Intelligent LCD display of E-bike
Model: KD51C.
Specifications
●Rated voltage: 24V/36V/48V
●Rated working current: 10mA
●Maximum working current: 30mA
●Off-state leakage current: <1uA
●Operating temperature: -20℃~ 60℃
●Storage temperature: -30℃~ 70℃
Appearance and Size

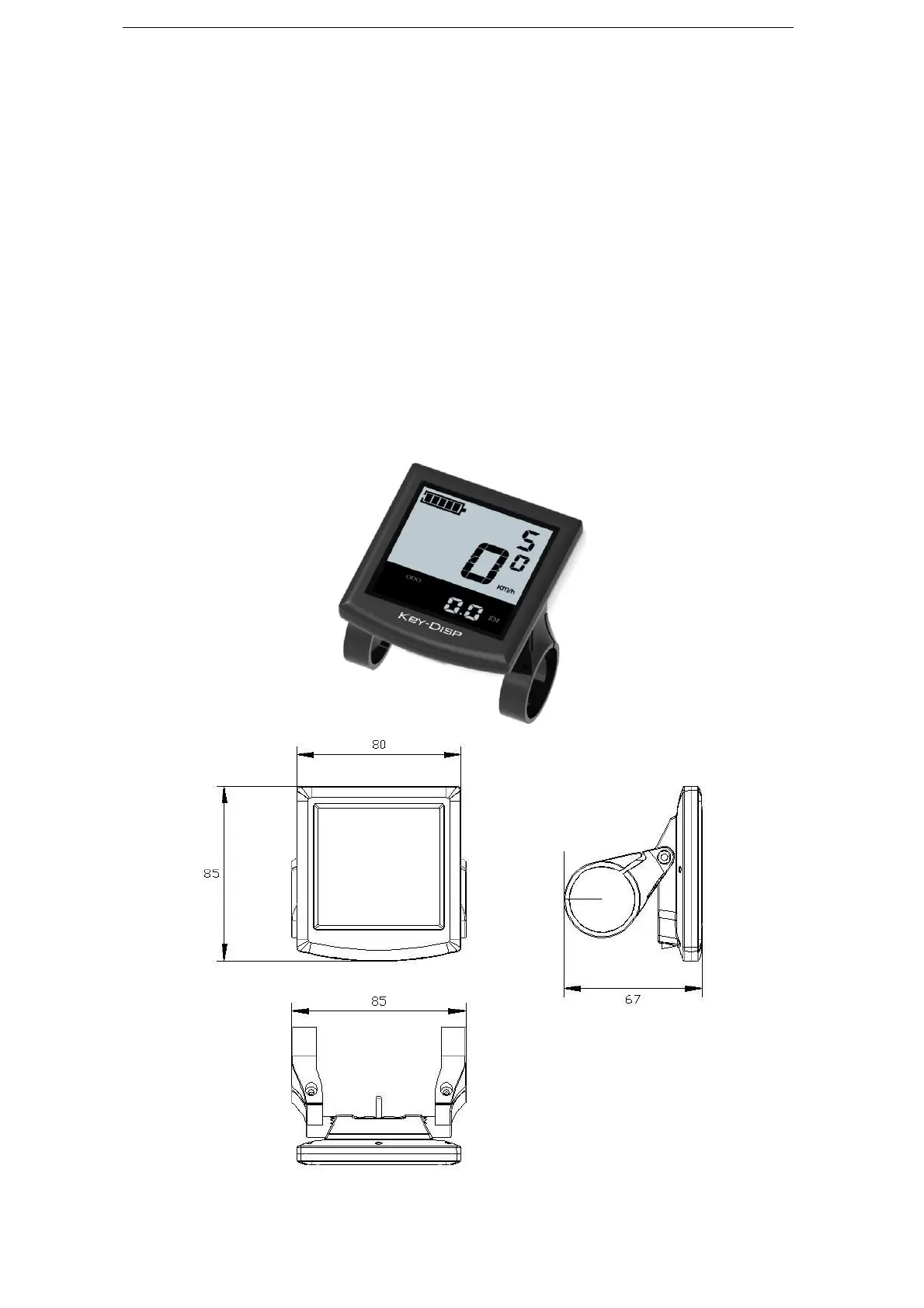

Product appearance and dimensional drawing (unit: mm)
