User Manual
SUPM1
page 84 of 94© KEYMILE December 2015 EN/LZTBU 372 129/1 RC
94
User Interface Reference

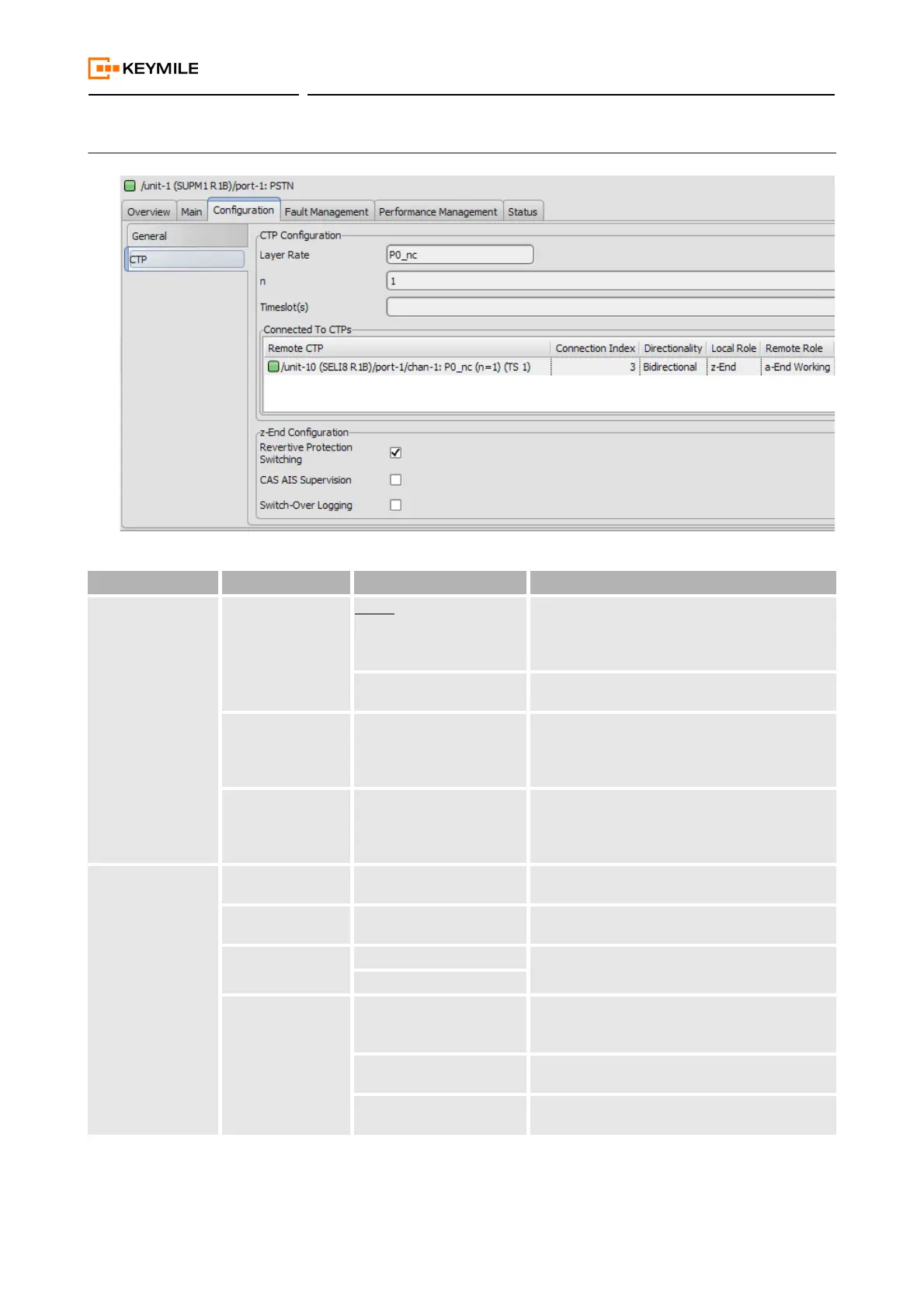

8.3.3.2 AP: / unit-x / port-y, Configuration - CTP
Table 48: AP: / unit-x / port-y, Configuration - CTP
Operation Name Parameter Name Range Description / Details
CTP Configuration Layer Rate P0_nc
Layer rate of the connection termination point is
P0_nc, i.e. n x 64 kbit/s.
The layer rate property of a SUPM1 port is fixed
to P0_nc.
P12
Layer rate of the connection termination point is
P12, i.e. 2048 kbit/s.
n 0 … 2 characters
Number of timeslots in case of P0_nc. The pos-
sible range is from 1 to 32.
The number of time slots of a SUPM1 port is
fixed to 1.
Timeslot(s) 0 … 64 characters
Used timeslots in a structured P12 in case of
P0_nc, e.g. 1 … 31.
The timeslot(s) property of a SUPM1 port is
empty.
Connected CTP Remote CTP <MO address>
Address string of a connections remote end.
Without a connection the parameter is empty
Connection Index 0 … 65‘535
Index of a connection assigned to the port. With-
out a connection the parameter is empty
Directionality Bidirectional
Directionality of the connection.
Unidirectional
Local Role z-End
The port is the ending point of a connection.
Please
refer to [314] User Guide “TDM Ser-
vices and Cross Connections in XMC20”
a-End Working
The port is the working starting point of a pro-
tected or unprotected connection.
a-End Protecting
The port is the protecting starting point of a pro-
tected connection.
