Keyprocessor Orion User Manual

11
PRT1
RS422
max. 2
Afbeelding
T-568B

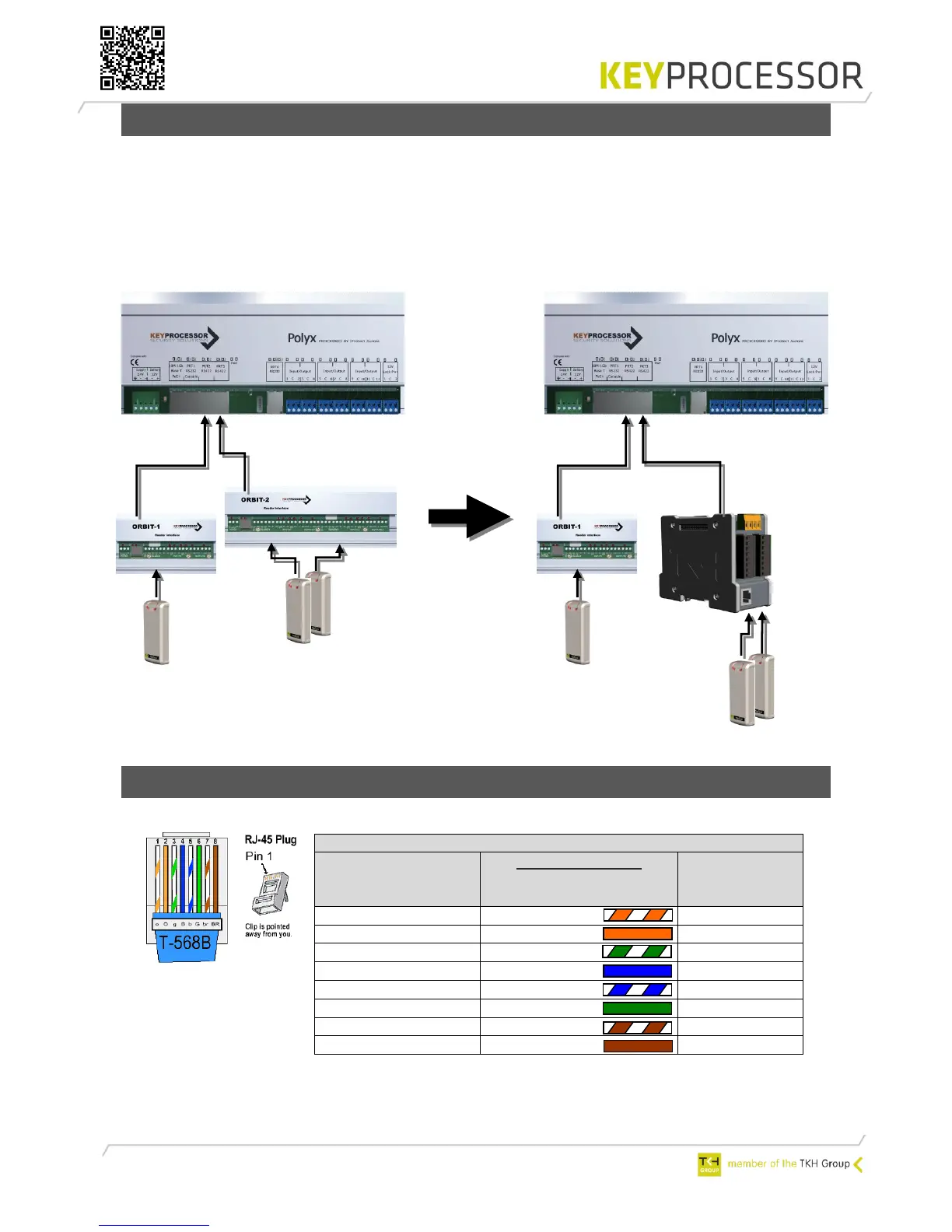

5.2 Connecting to an Polyx Network controller
The functionality of the Orion is compatible with the Orbit 2. All I/O of the Orbit 2 is available
on de Orion. However, the specifications of the I/O are different and needs to be taken into
account.
Below is a installation example displayed. A combination of existing Orbits and new Orion’s is
also possible:
5.3 Controller <> Orion PRT1 - RS422
Connection: Controller <> Orion
iPU-8 PRT 1 – 8
or
Polyx PRT 2 – 3
TIA/EIA-568-B
kabelkleur
Orion (A)
PRT1
RS422
1
White/Orange
RX1B
2
Orange
RX1A
3
White/green
TX1B
4
Blue
12V dc
5
White/blue
GND
6
Green
TX1A
7
White/brown
GND
8
Brown
GND
