4 Connections
In this chapter, the connections of the Orion are described. The possibilities depents on the use
of the Orion (e.g. Orion as replacement unit for the reader Orbit or multiple Orion’s on one
data line).

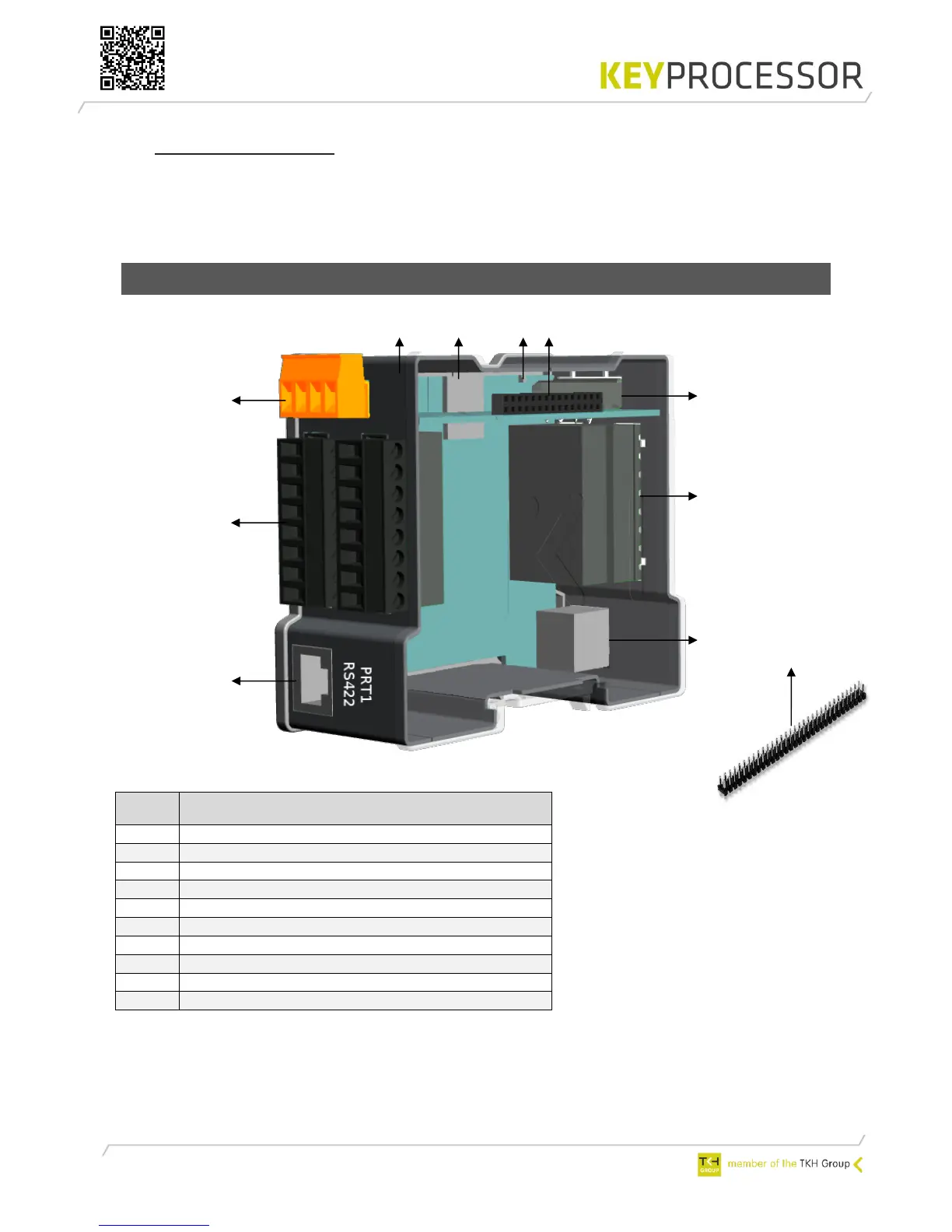

4.1 Orion
* Function not supported, future use.
Port
Description
A
PRT1 - RS422 (Orbit mode)
B/C
Reader & IO-1
D
Power connector
E
Smart LED status
F
microSD slot*
G
End of line jumper
H
Stack connector for stacking the power supply
I
RS485 and kpSensor bus
J/K
Reader & IO-2
L
PRT2 - RS485 (Orion mode)
