When using the test head fixed on a handler, etc.
The test head can be attached to a handler or other
automatic equipment instead of using a special test fixture.
In this case, secure the test head to the device using the
four screw holes provided in the test head as appropriate.
Connect the suitable cable, connectors, test fixture, etc. for
connection of the DUT to the 3.5- mm terminal of the test
head.

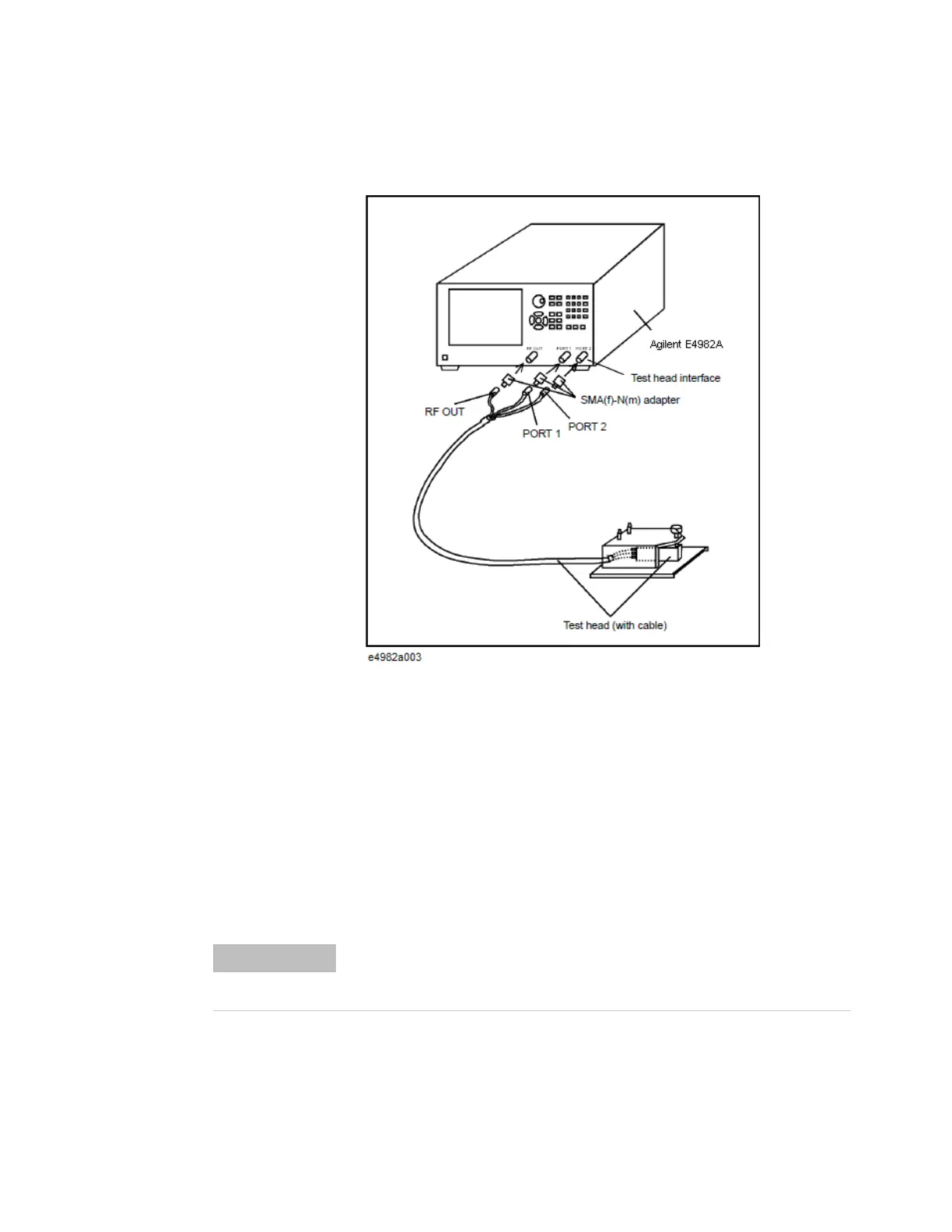

Figure 5 Connecting test head cable to E4982A
To minimize additional error in measurement, the distance from the test
head’s 3.5-mm terminal to the DUT connection side should be kept as
short as possible.
