52 LCR Meter
2 Troubleshooting
Step 8. The progress of the system configuration is
displayed on the screen. The recovery takes a few minutes
depending on the amount of data.
Step 9. Once the recovery process is completed, completion
message prompts. Click OK. The E4982A restarts
automatically.
Step 10. Type 5 to select Exit and Restart the instrument
and press [Enter].

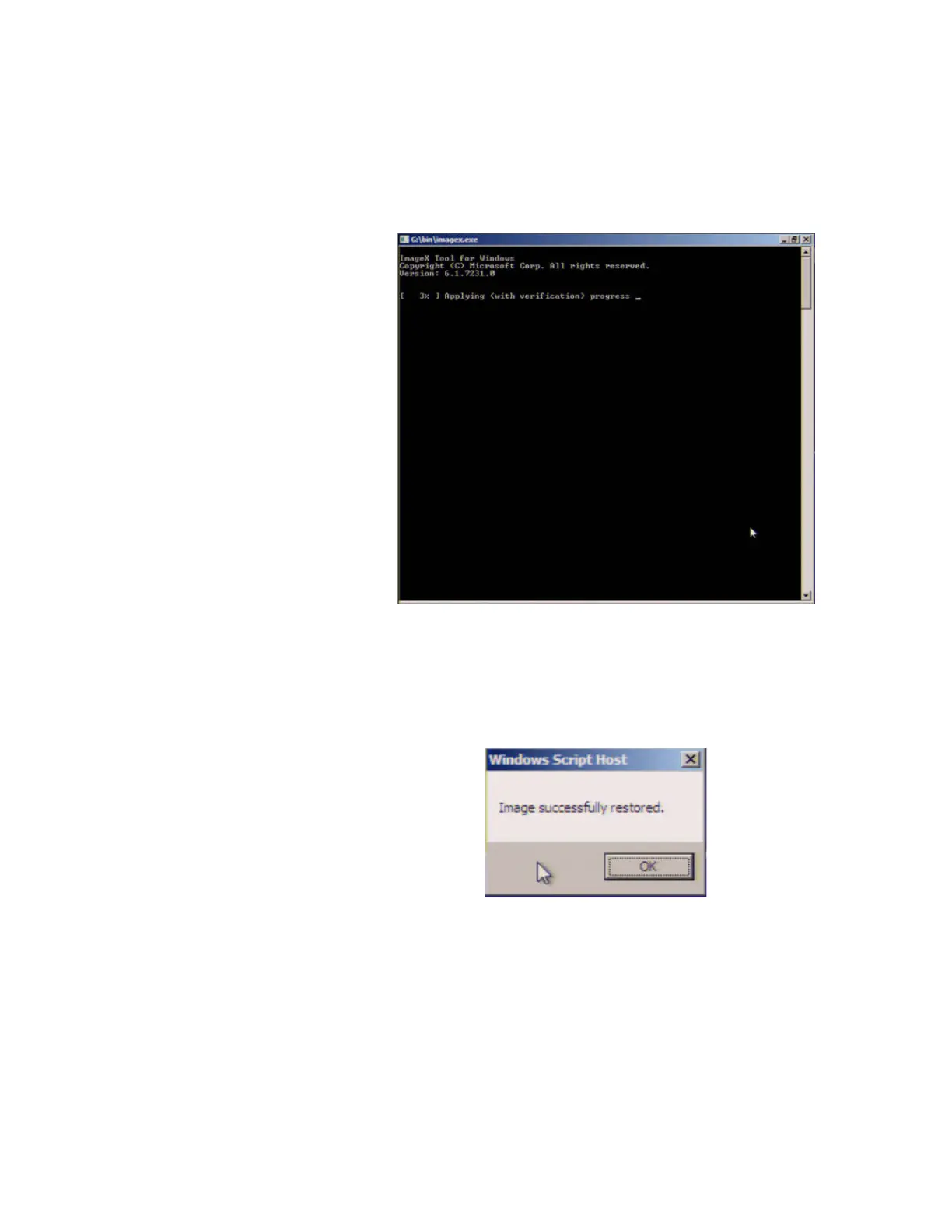

Figure 18 System configuration progress screen
Figure 19 Recovery Option confirmation dialog box
