Keysight E5061B Network Analyzer 21
Installation
Installing Front Handles/Rack Mounting Flanges

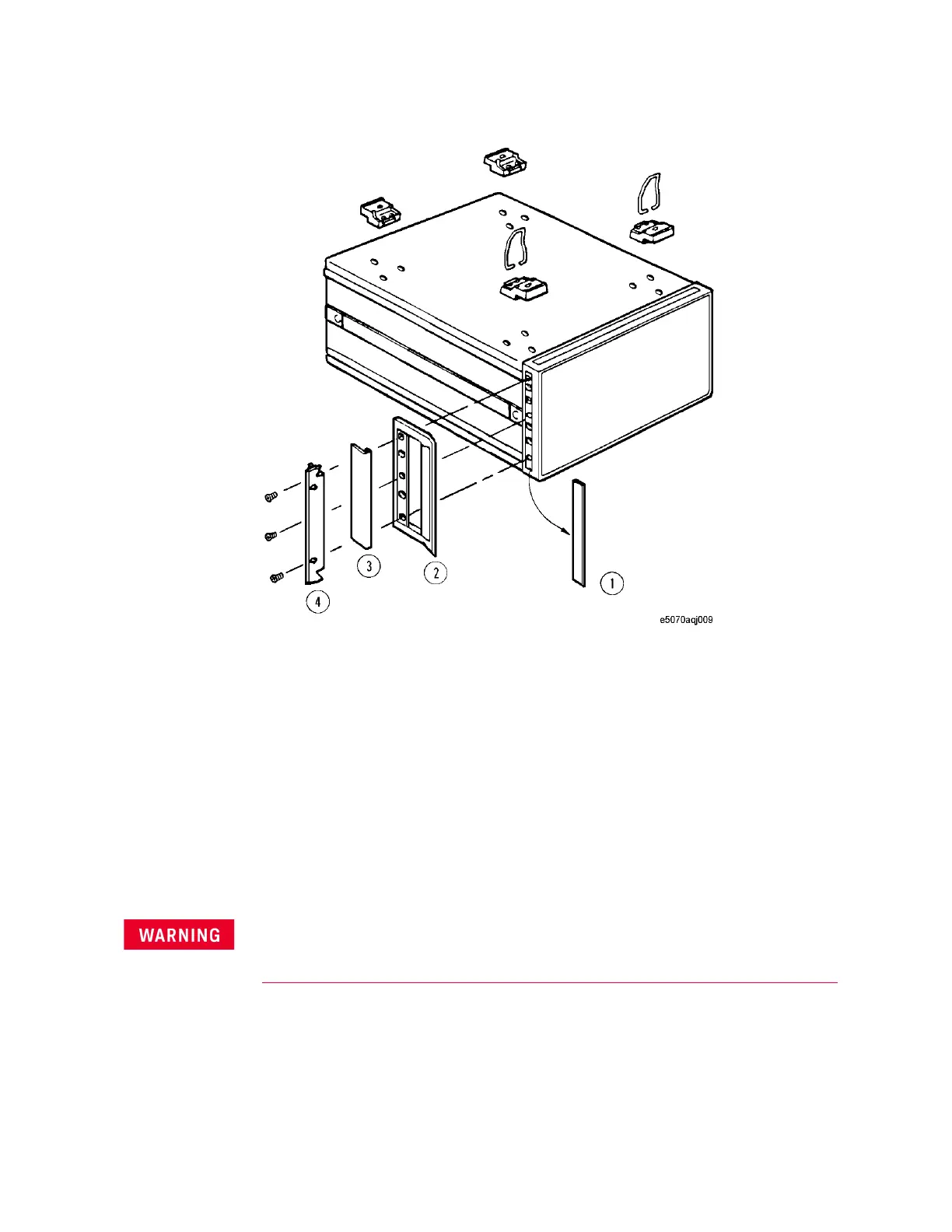

Figure 1-3 Installing front handle/rack-mount kits
How to Install the Handle Kit (Option 1CN)
The handle kit used for transport and relocation of the E5061B. While referring
to Figure 1-3 install the handle kit by following these steps.
Step 1. Remove the adhesive-backed trim strip (1) from each side of the outer frame
of the E5061B front panel.
Step 2. Use the provided screws to mount the front handles (2) on each side of the
E5061B front panel frame.
Step 3. Attach the modified trim strip (3) provided to each front handle in order to
cover the front panel locking screws.
How to Install the Rack-mount Kit (Option 1CM)
The rack-mount kit includes two flanges (locking side plates) for mounting the
E5061B on a rack (482.6 mm/19 inches) conforming to the EIA Standard.
While referring to Figure 1-3, install the rack-mount kit by following these
steps.
If the installed front handle becomes damaged, replace it with a new one
immediately. A damaged handle can break while moving or lifting the
instrument and cause personal injury or damage to the instrument.
