146 Keysight Agile Signal Generator Service Guide
Assembly Replacement
7. Refer to Figure 3-41 and Figure 3-42. Using the T-10 driver, remove the 2
screws (1) (0515-1103) that attach the DAC/Ref/LB Switch assembly to
the chassis. Use two flat blade screwdrivers in the DAC assembly notches
to pry out the assembly and disconnect it from the Midplane board. Figure
3-42 shows the placement of the flat blade screwdriver in the notch. The
DAC assembly can now be removed by pulling out towards the rear of the
chassis.

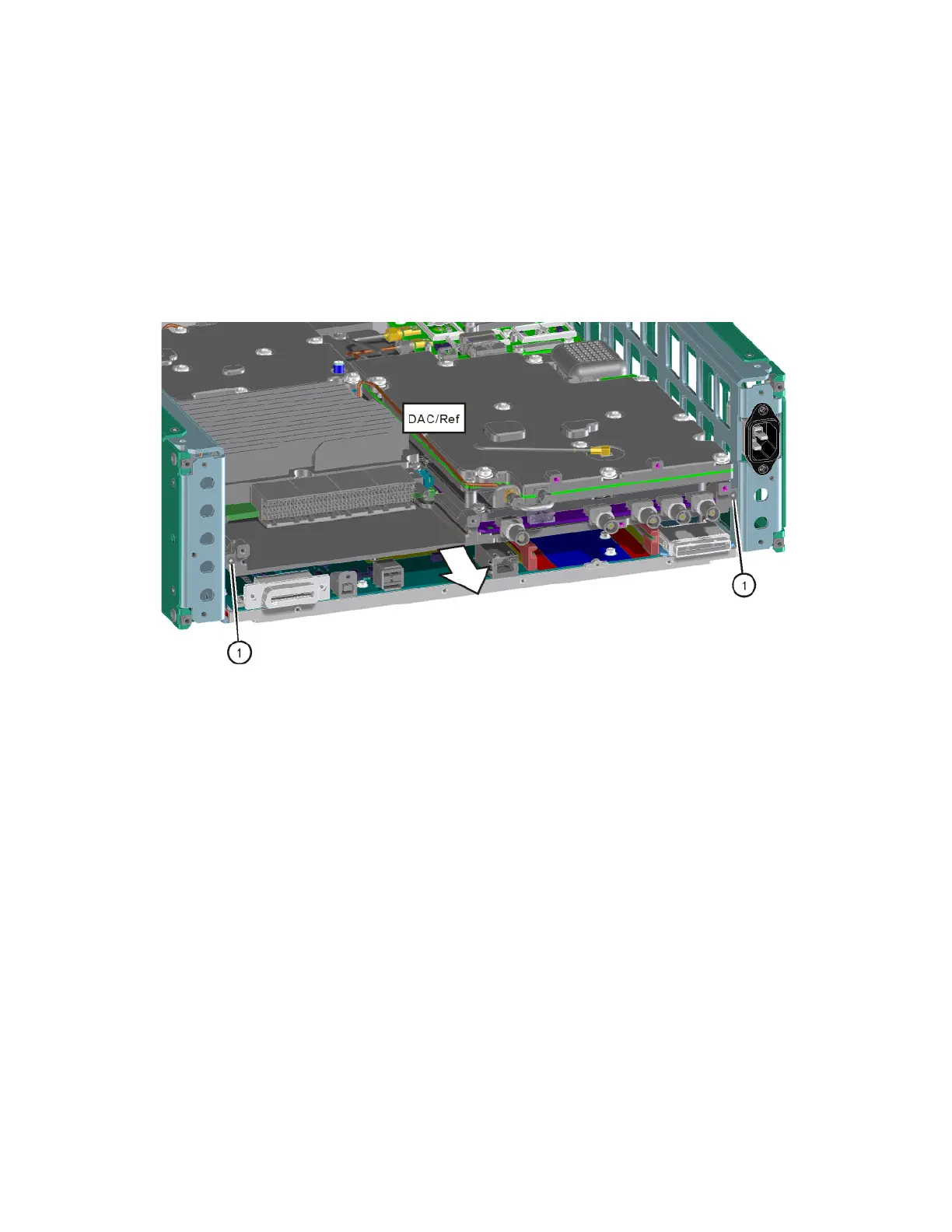

Figure 3-41 DAC/Ref/LB Switch Assembly Removal
To Next Page
