Keysight Technologies P Series Service Guide

6 Repair Guide
94 Keysight N8262A Service Guide

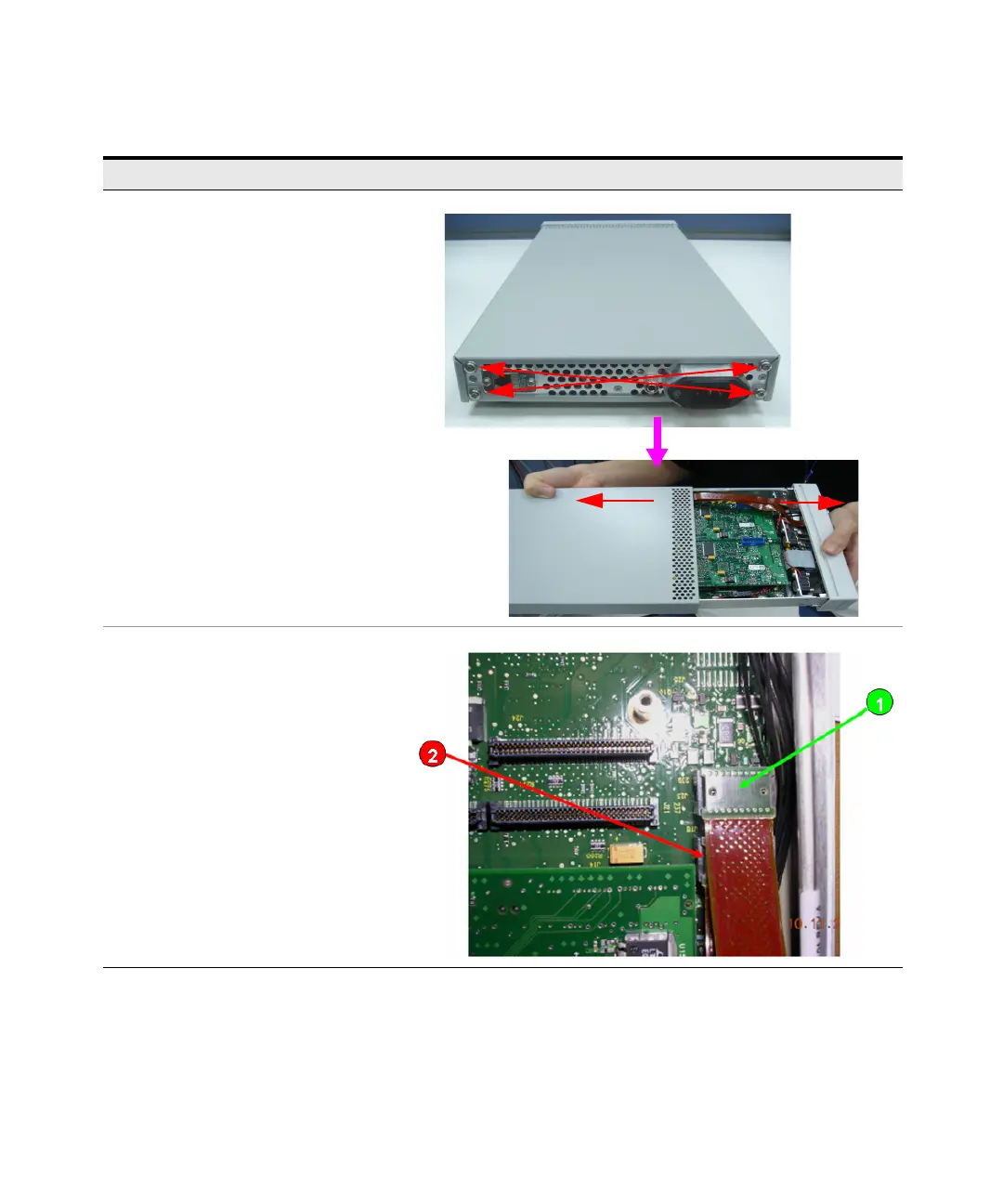

– Use a T20 Torx screwdriver bit to remove the
four screws located at the rear panel.
– Pull and remove the cover at the rear panel.
See the figure to the right for more details.
– Step 1: Lift and remove channel B sensor flex
cable from J23.
– Step 2: Lift and remove channel A sensor flex
cable from J18.
Instructions Visual
