Description
The 11683A Range Calibrator is used to verify proper operation of compatible Power Meters such
as the Keysight Model 435A. The Power Meter's rangeto-range accuracy and proper auto-zero
operation can be easily verified. The 11683A can supply a full-scale test signal to the Power Meter
for each Range Switch setting.
When set to CALIBRATE, the FUNCTION switch applies a dc voltage to the Power Meter; the input
is grounded in STANDBY. The POLARITY switch increases ease of testing and adjusting the Power
Meter auto-zero feedback circuit.

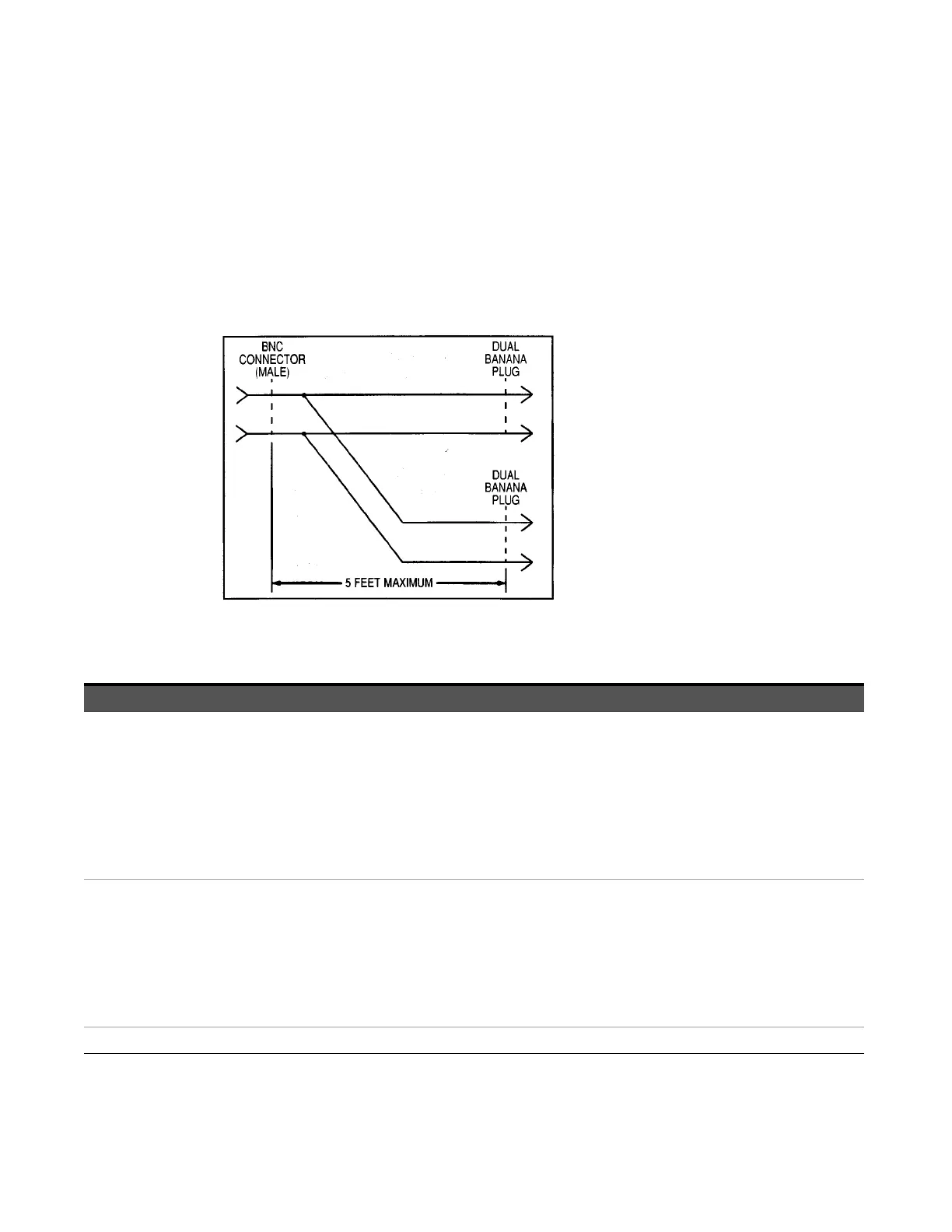

Figure 1-2 Four-wire cable
Table 1-3 Recommended test equipment
Instrument Critical specification Model Use
Digital voltmeter
Readout: 5 digits
DC measurement
Range: 100 mV to 100 V full-scale
Accuracy: ± 0.02%
Resistance measurement (four-wire measurement capability)
Range: 100 Ω to 10 kΩ full-scale
Sensitivity: 1mil
Accuracy: ± 0.02%
3455A
Performance,
Adjustment,
Troubleshooting
Oscilloscope
Vertical amplifier
Bandwidth: DC to 5 MHz
Deflection factor: 50 mV /division minimum
Attenuator accuracy:± 2%
Time Base
– Time span/division: 1 ms to 1 s
– Time base accuracy: ± 3%
180C/1801A/1821A
Adjustment,
Troubleshooting
Four-wire cable Recommended length: 5 feet maximum See Figure 1-2 Performance
