Keysight 11683A - Figure 6-12 Unit with Old Power Switch; Figure 6-13 Unit with New Power Switch Upgrade Kit: 11683 AZ-K01

6Service
52 Keysight 11683A Operating and Service Manual
Both the upgrade kits convert the standard unit to H01. If the existing model has an old power
switch - user must order the 11683AZ-K02 upgrade kit, which includes the new power switch and
rear panel. If the existing model already has the new power switch, user needs to order
11683AZ-K01.

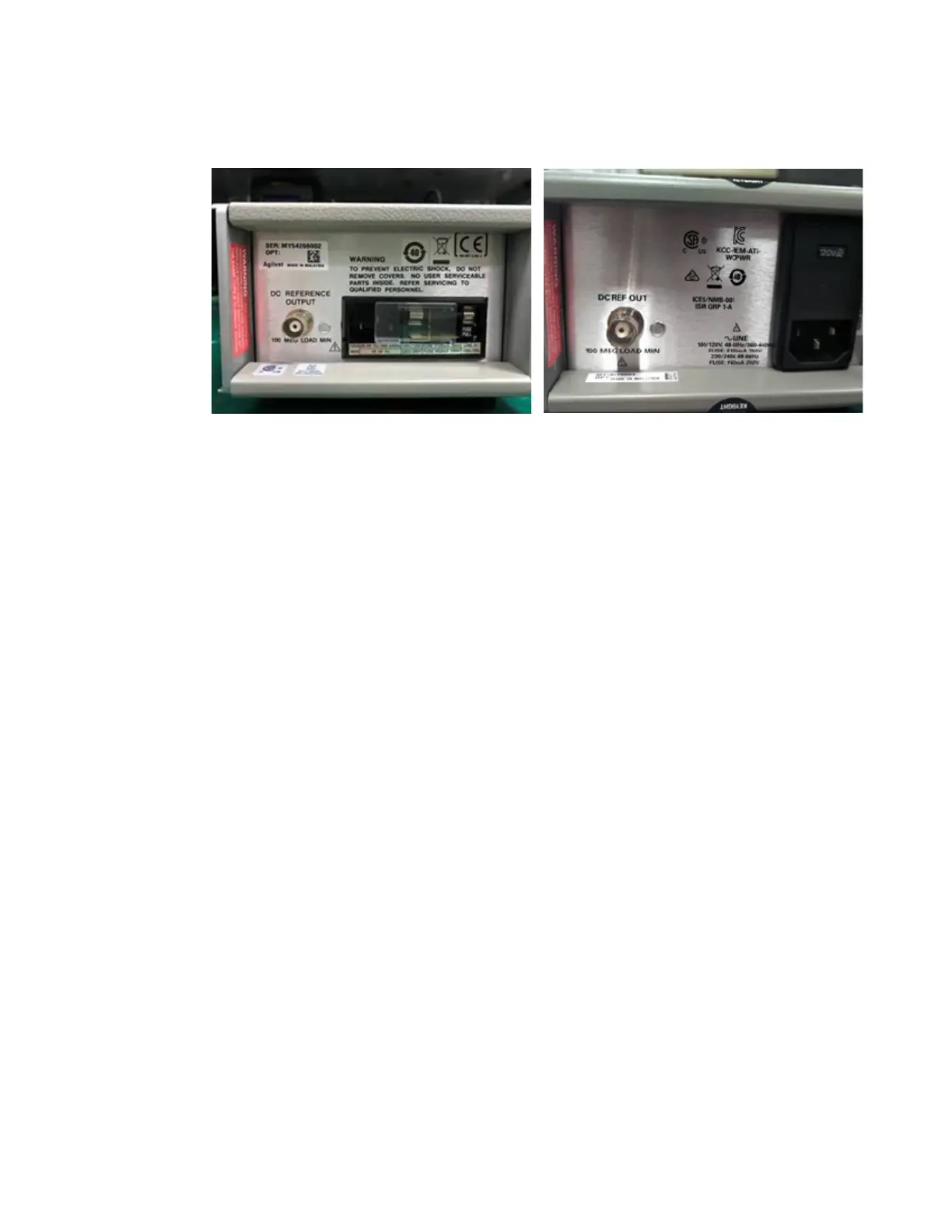

Figure 6-12 Unit with old power switch
Upgrade kit: 11683AZ-K02
Figure 6-13 Unit with new power switch
Upgrade kit: 11683AZ-K01
