237
Keysight Handheld Analyzers
N99xxA User’s Guide
11 IQ Analyzer (IQA) – Option 351 (CPU2 Only)
IQA mode measures signals at the SA RF IN connector.
IQA mode requires the FieldFox to have SA mode and CPU2 installed.

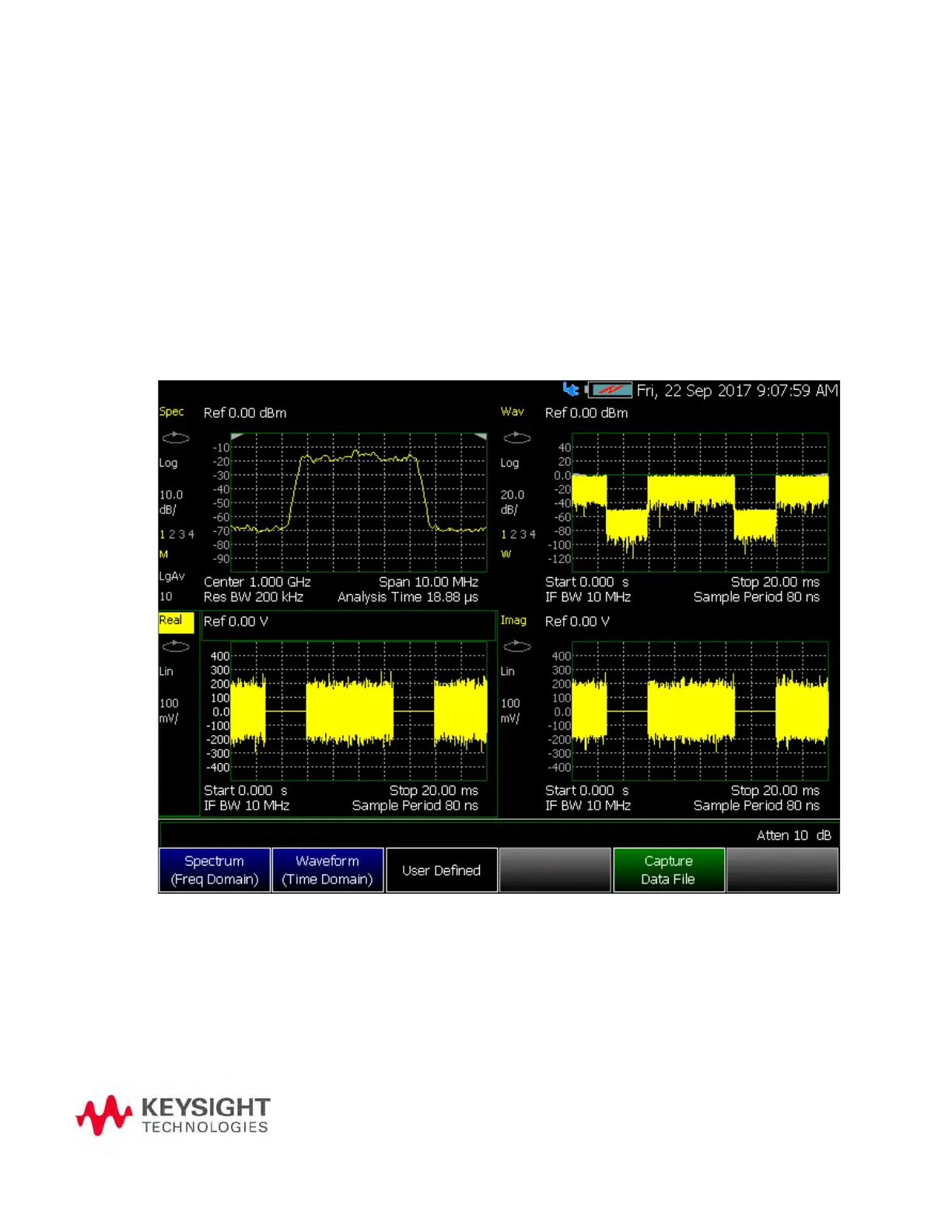

Figure 11-1 IQ Analyzer (IQA) Display - LTE–TDD signal captured using the FieldFox’s I/Q analyzer
