Keysight Handheld Analyzers
N99xxA User’s Guide
20 VVM (Vector Voltmeter) Mode - Option 308
VVM Mode (Option 308) measures the electrical length of cables and other
devices. The 1-Port Cable Trimming and 2-Port Transmission measurement
displays the electrical length in both Magnitude and Phase.

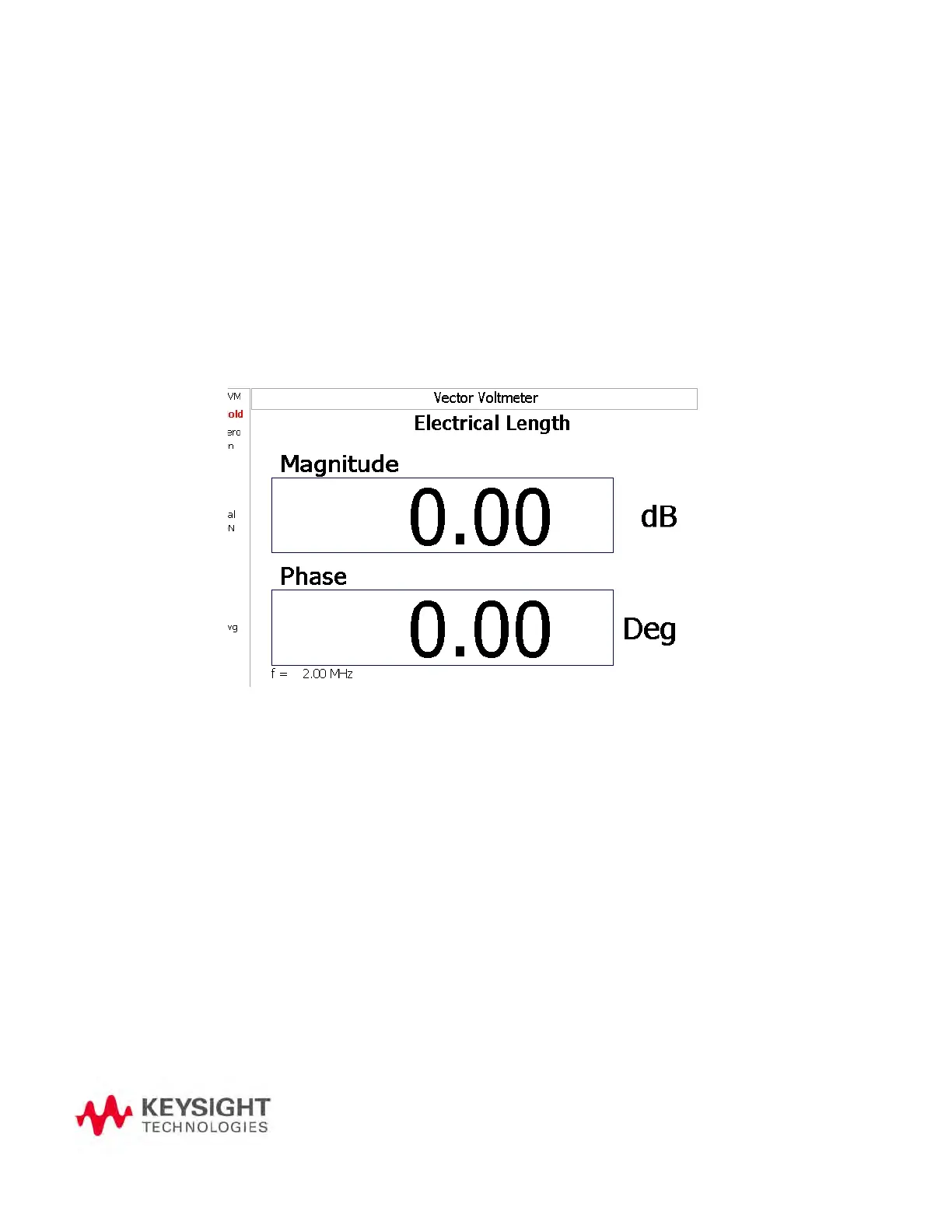

Figure 20-1 Display for the 1-Port Cable Trimming measurement
In this Chapter
“Overview” on page 373
“Measurement Selection” on page 374
“Frequency Selection” on page 374
“Display Resolution” on page 374
“IF Bandwidth” on page 375
“Output Power” on page 375
“Averaging” on page 376
“Single or Continuous Measure” on page 377
“VVM Calibration” on page 377
“Zeroing” on page 377
