Keysight CX3300 User’s Guide, Edition 4 25
Setting Up the CX3300
Verifying Basic Operation
2. Press the
1 (yellow), 2 (green), 3 (blue), or 4 (red) key associated with the
channel connected to the Aux Out terminal and enable the channel.
3. Press the
Menu key several times to open the Configuration dialog box. The
Menu key is located above the Horizontal control on the front panel.
4. Set the following conditions on the dialog box (Configuration > Calibration
Output).
• Output State: ON
• Source Shape: Square
The +5 V square pulse (1 kHz, 50% duty cycle) is applied from the Aux Out
terminal which has 50  output impedance.
5. Click the close (x) button located in the upper right corner on the
Configuration dialog box to close the dialog box.
6. Press the
Run key to start waveform acquisition.
7. Use the Vertical control knob to adjust the vertica
l scale. You will see square
pulse as shown in Figure 1-5.

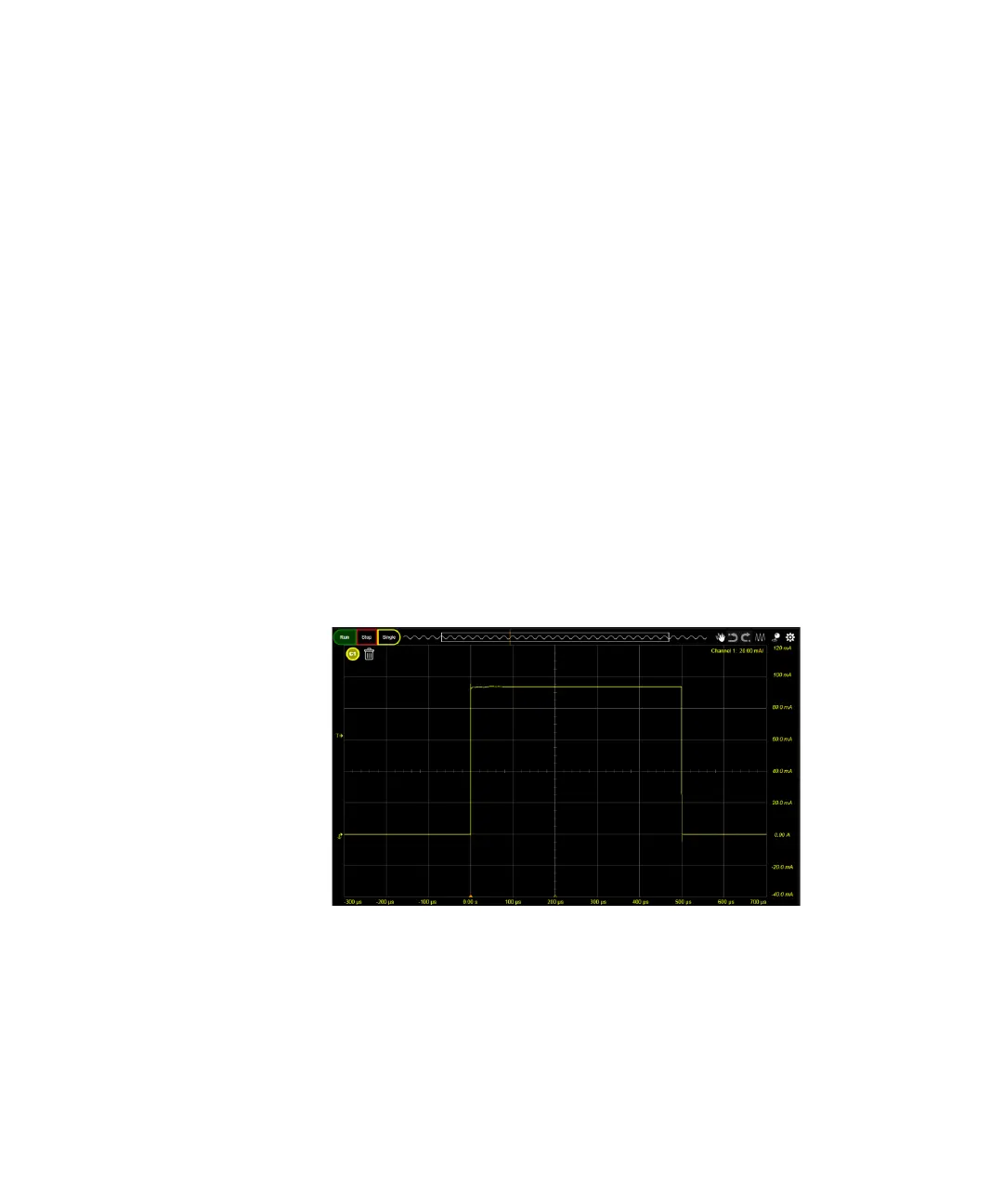

Figure 1-5 Calibration Output monitored using the CX1216A Resistive Sensor Head
If You Use the CX1105A
Required accessories
• Test adapter, 1 ea., furnished with the CX1105A
• Coaxial cable (BNC plug to BNC plug), 1 ea., furnished with the CX3300
