Programming Examples
GPIB Programming Interface Examples
Using 8757D Pass-Thru Commands (PSG with Option 007 Only)
Pass- thru commands enable you to send operating instructions to a PSG or E8257N that is connected
to a 8757D scalar analyzer system. This section provides setup information and an example program
for using pass- thru commands in a ramp sweep system.
Equipment Setup

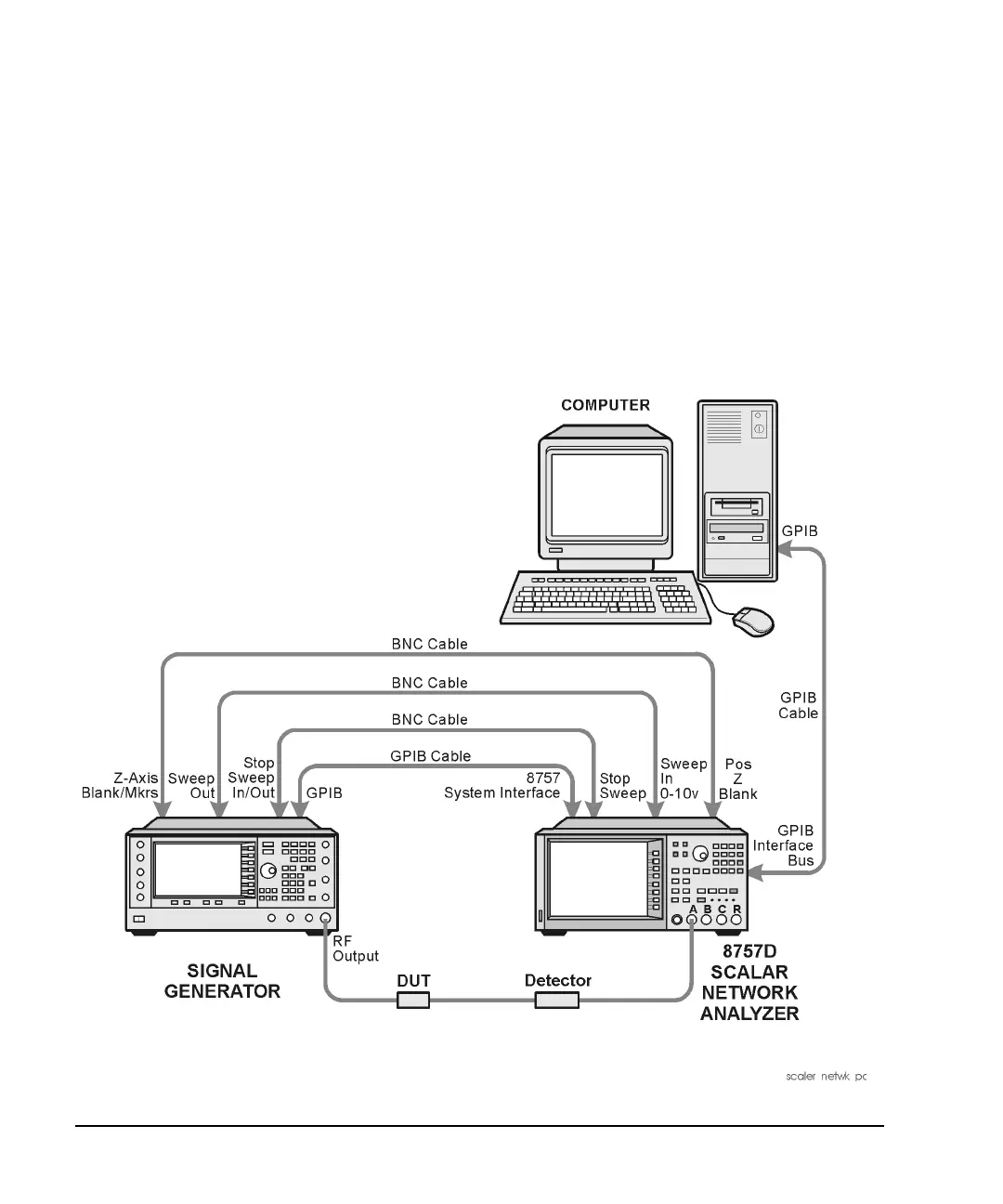

To send pass- thru commands, set up the equipment as shown in Figure 3-1. Notice that the GPIB
cable from the computer is connected to the GPIB interface bus of the 8757D. The GPIB cable from
the PSG or E8257N is connected to the system interface bus of the 8757D.
Figure 3-1
