Keysight Signal Generators Programming Guide 257
Creating and Downloading Waveform Files
Loading, Playing, and Verifying a Downloaded Waveform
Verifying the Waveform
Perform this procedure after completing the steps in the previous procedure, “Playing the Waveform”
on page 256.

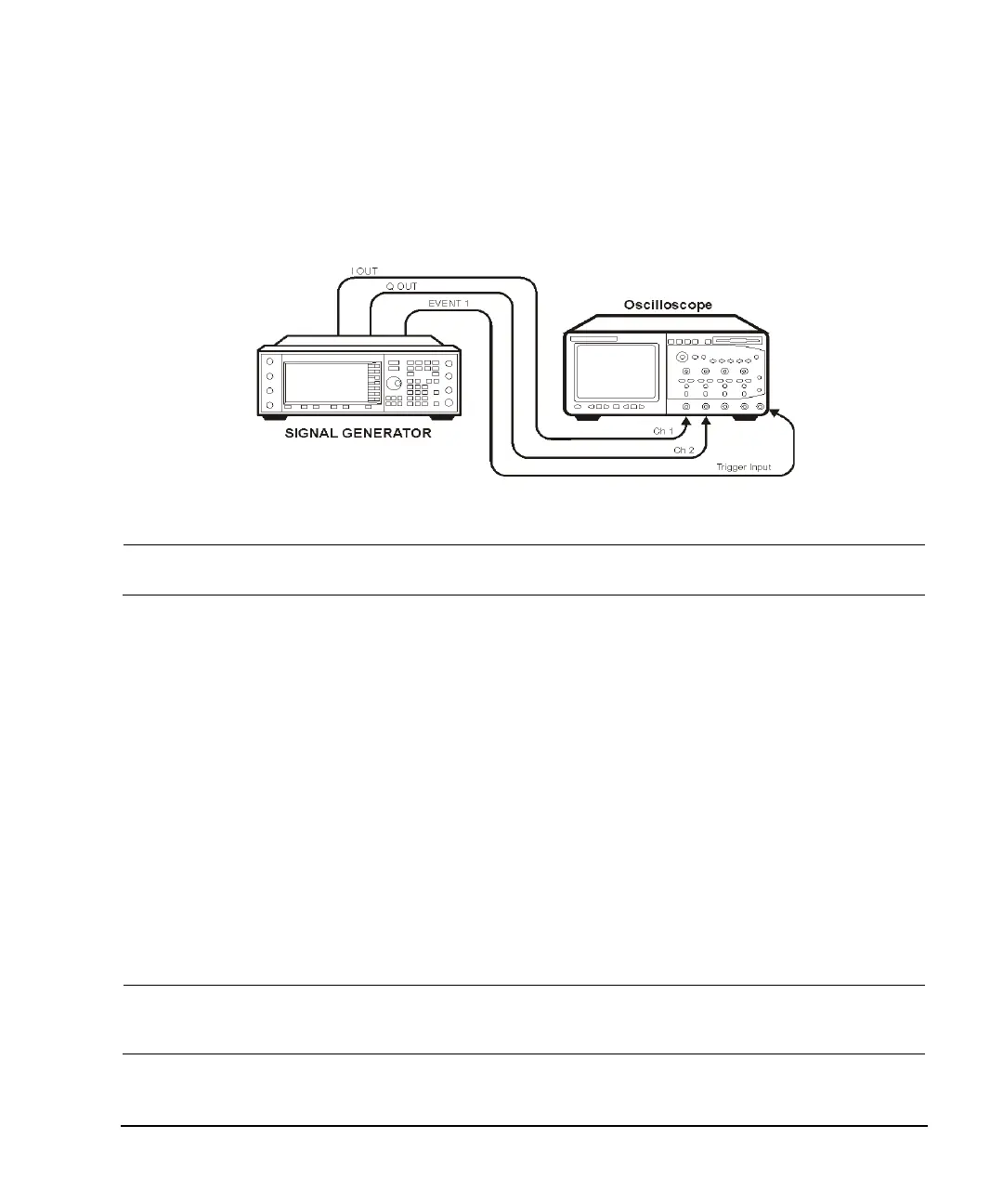

1. Connect the signal generator to an oscilloscope as shown in the figure.
2. Set an active marker point on the first waveform point for marker one.
NOTE Select the same waveform selected in “Playing the Waveform” on page 256.
Send the following SCPI commands:
:SOURce:RADio:ARB:MARKer:CLEar:ALL "WFM1:<file_name>",1
:SOURce:RADio:ARB:MARKer:SET "WFM1:<file_name>",1,1,1,0.
3. Compare the oscilloscope display to the plot of the I and Q data from the text file you created
when you generated the data.
If the oscilloscope display, and the I and Q data plots differ, recheck your code. For detailed
information on programmatically creating and downloading waveform data, see “Creating Waveform
Data” on page 243 and “Downloading Waveform Data” on page 249. For information on the waveform
data requirements, see “Waveform Data Requirements” on page 215.
Building and Playing Waveform Sequences
The signal generator can be used to build waveform sequences. This section assumes you have
created the waveform segment file(s) and have the waveform segment file(s) in volatile memory. The
following SCPI commands can be used to generate and work with a waveform sequence. For more
information refer to the signal generator’s SCPI Command Reference and User’s Guide.
NOTE If you would like to verify the waveform sequence, refer to “Verifying the Waveform” on
page 257.
