Chapter 2: Preparing for Use
To connect power
22
To connect power
1 Position the oscilloscope where it will have sufficient clearance for airflow
around the top, back, and sides.
2 Position the oscilloscope so that it is not difficult to unplug the power cord.

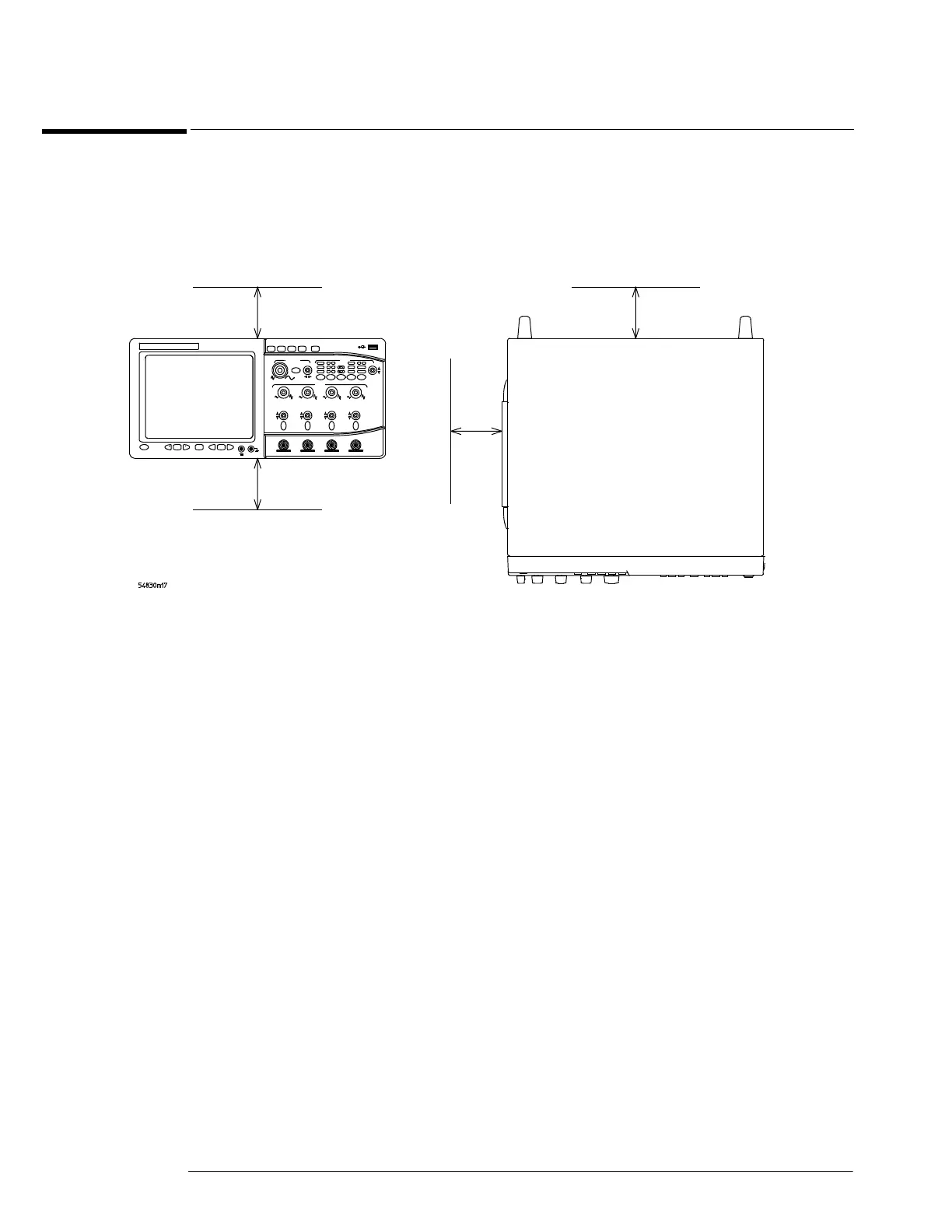

Figure 2-2
Positioning the Infiniium Oscilloscope with Sufficient Clearance
3 Connect the power cord to the rear of the oscilloscope, then to a suitable AC
voltage source (100 to 240 VAC ±10%, 47 to 63 Hz, all models)
8000 Series oscilloscope maximum power dissipation: 440 W.
Minimum 0 mm
Minimum 85 mm
both sides
Minimum 39 mm
Airflow requirements 250 cfm
Minimum 22 mm
